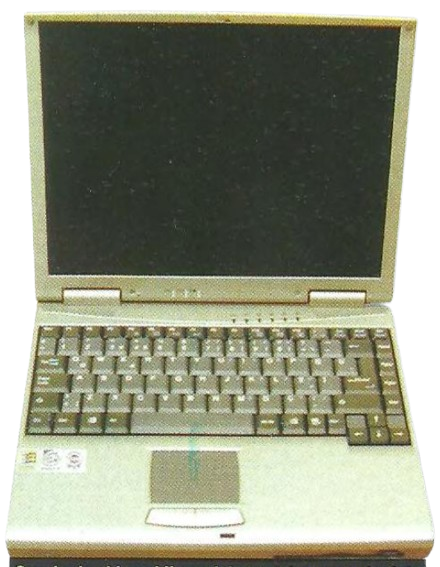

MiTAC MiNote 6233
The MiTAC MiNote 6233 is a Celeron-based generic/ODM laptop that was released in 1999.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 615 (uPGA-1) Intel Mobile Celeron @300, 333, 366, 400, 433, or 466MHz |
| Chipset | Intel 440ZX |
| RAM | Type: SDRAM, 1 slot Standard: 32MB Soldered Maximum: 160MB |
| Storage | 2.5" IDE Requires Adapter: No Standard: Unknown |
| Display Options | - 12.1" TFT LCD @800x600 - 13.3" TFT LCD @1024x768 |
| Graphics Chipset | ATI Rage LT Pro VRAM: 4MB |
| Audio | ESS Maestro-2E w/ CS4297 Codec - Stereo Speakers - Microphone |
| Main Battery | Unknown |
| CMOS Battery | Unknown |
| Power Supply | Barrel Jack |
| Media Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - CD-ROM or DVD-ROM Drive |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support - TI PCI 1225 Controller |
| Networking | Modem (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x USB 1.x - 1x Mic In - 1x Line Out |
| BIOS | Unknown |
| Pointing Device | Trackpad |
Resources
 Service Manual |
|---|
Page last updated (MM/DD/YYYY): 04/08/2025
Update Reason: page created
