MiTAC MiNote 6031

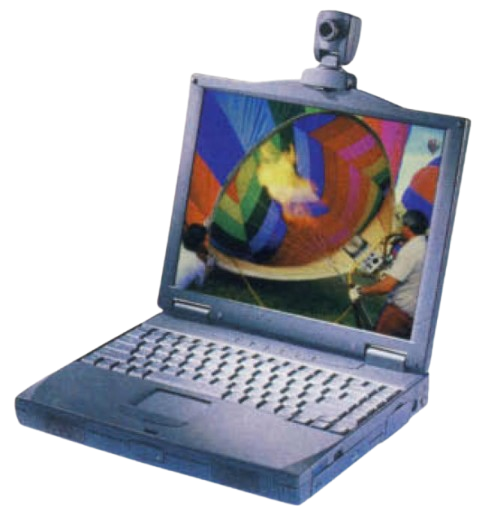

The MiTAC MiNote 6031 is a Pentium II-based generic/ODM laptop that was released in October 1997. It was a desktop replacement system, and could have a CCD camera attached above the LCD.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: MMC1 Intel Mobile Pentium II @233, 266, or 300MHz |
| Chipset | Intel 430TX |
| RAM | Type: EDO or SDRAM, 2 slots Standard: 16 or 32MB Maximum: 128MB |
| Storage | 2.5" IDE Requires Adapter: Yes Standard: 1.6, 2.1, 3.2, or 4.3GB |
| Display Options | - Passive Matrix LCD @800x600 - Passive Matrix LCD @1024x768 - 13.3" Active Matrix LCD @1024x768 - 14.2" Active Matrix LCD @1024x768 |
| Graphics Chipset | Trident Cyber9385 VRAM: 4MB |
| Audio | Crystal CS4237B |
| Main Battery | - NiMH (12V, 3.5 or 4AH) - Lithium Ion |
| CMOS Battery | BR2032 Lithium (Socketed) |
| Power Supply | Barrel Jack |
| Media Drives | 3 Spindle (Dual Modular Bays) - Left Bay supports Floppy Drive, Cartridge Hard Disk, MO Drive, Internal AC Adapter, 2nd HDD, or Battery - Right Bay supports 24X CD-ROM, Floppy Drive, Cartridge Hard Drive, MO Drive, 2nd HDD, or Battery |
| PC Cards | 2x PCMCIA/CardBus Slots |
| Networking | Modem |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x Composite Out - 1x Composite In - 1x Mic In - 1x Line In - 1x Line Out - Infrared |
| BIOS | Unknown |
| Pointing Device | Trackpad |
Resources
 Service Manual |
|---|
