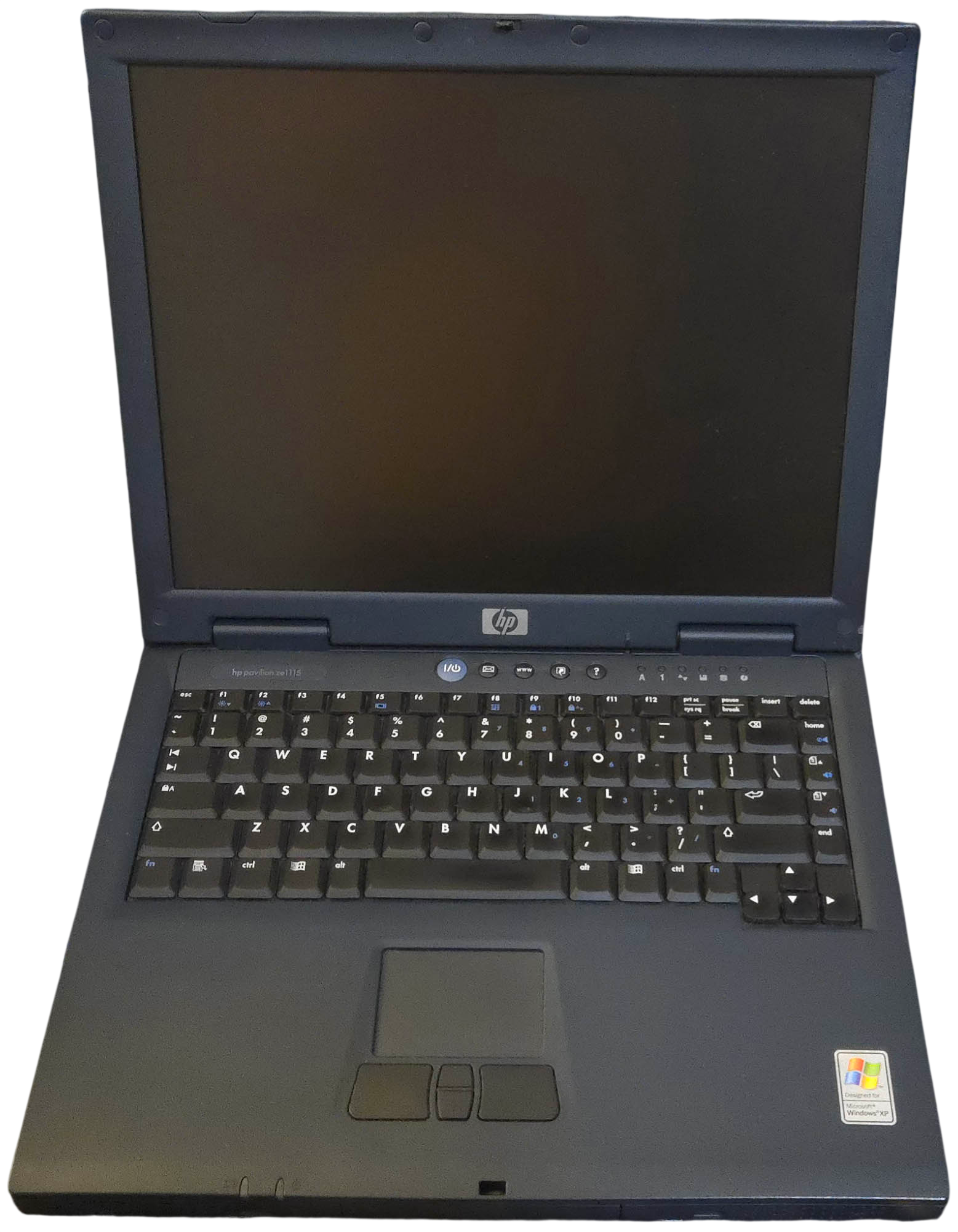

HP Pavilion ze1000 Series

The HP Pavilion ze1000 Series are AMD-based budget laptops that were released in 2002.


Specifications

Spec Details
CPU CPU Type: Socket A
- AMD Mobile Duron "Morgan" @1.1GHz, other speeds?
- AMD (mobile?) Athlon
Chipset VIA KN133 + VT8231
RAM Type: PC133 SDRAM, 2 slots
Standard: 128, 256, or 512MB
Maximum: 1GB
Storage 2.5" IDE
Requires Adapter: Unknown
Standard: Unknown
Display Options - 14.1" TFT LCD @1024x768
- 15.0" TFT LCD @1024x768
Graphics Chipset S3 Twister-K Chipset Graphics
VRAM: Shared/SMA?
Audio Conexant AC97
- Stereo Speakers
Main Battery Lithium Ion (55Wh) or NiMH (38.4Wh)
CMOS Battery Unknown
Power Supply Barrel Jack
Media Drives 3 Spindle
- 3.5" 1.44MB Floppy Drive
- 24X CD-ROM Drive, 8X DVD-ROM Drive, or DVD/CD-RW Drive
PC Cards 1x PCMCIA/CardBus Slot (Type III)
Networking - 56k Modem
- 10/100 Ethernet (Optional)
Other I/O - 1x Parallel
- 1x VGA Out
- 2x USB 1.x
- 1x IEEE1394/FireWire (Optional)
- 1x Mic In
- 1x Headphone Out
BIOS Insyde
Pointing Device Trackpad

Individual Model Specifications

I believe only three models in this series were released:

I know that the ze1115 shipped with a 1.1GHz Mobile Duron, but I don't know any shipping configuration specs beyond that. I don't have info on the other models.


Resources

Link Details
HP Pavilion ze1000 Series Startup Guide
HP Pavilion ze1000 Series Reference Guide
HP Pavilion ze1000 Series Troubleshooting & Self-Repair Guide

Gallery

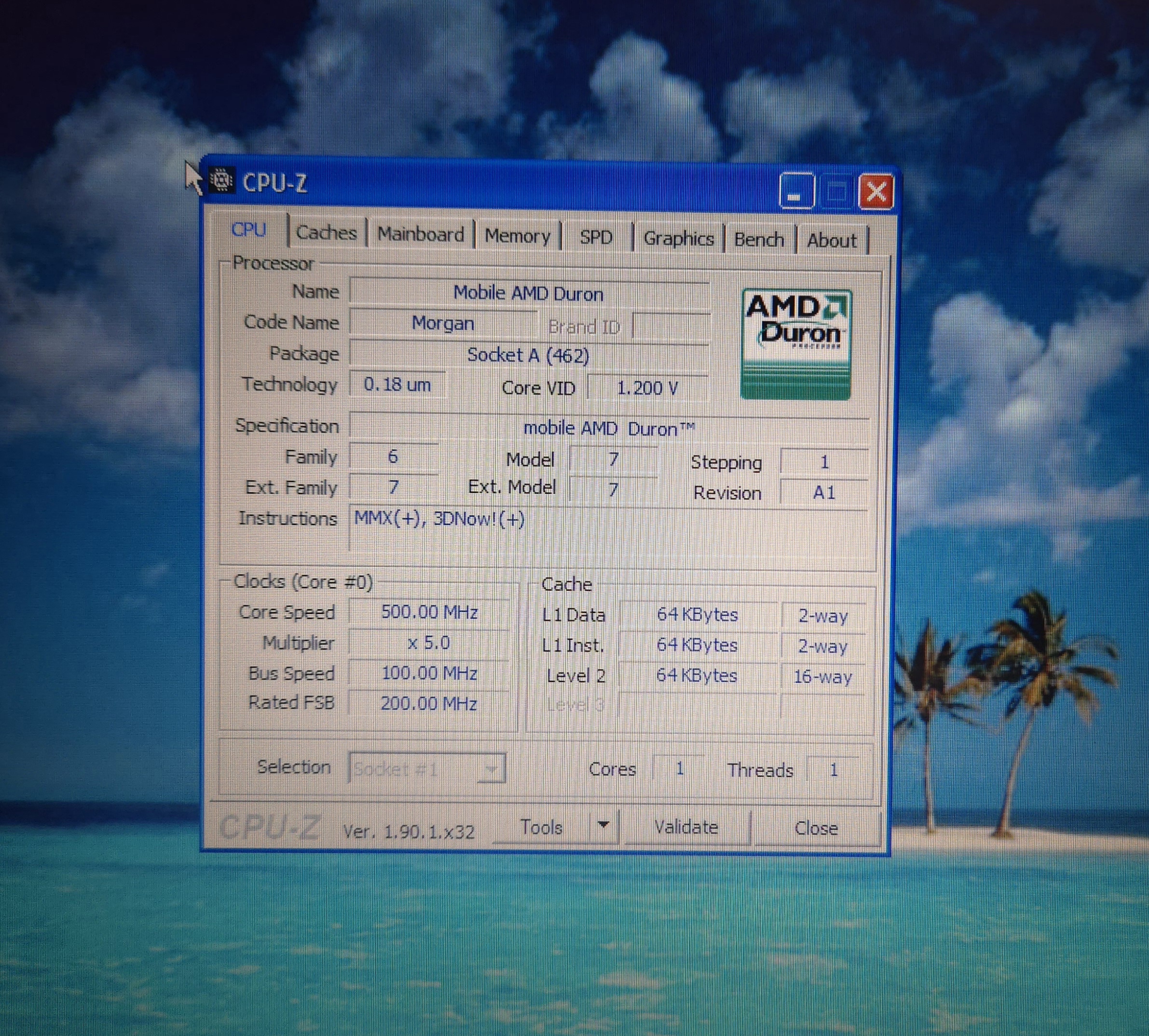

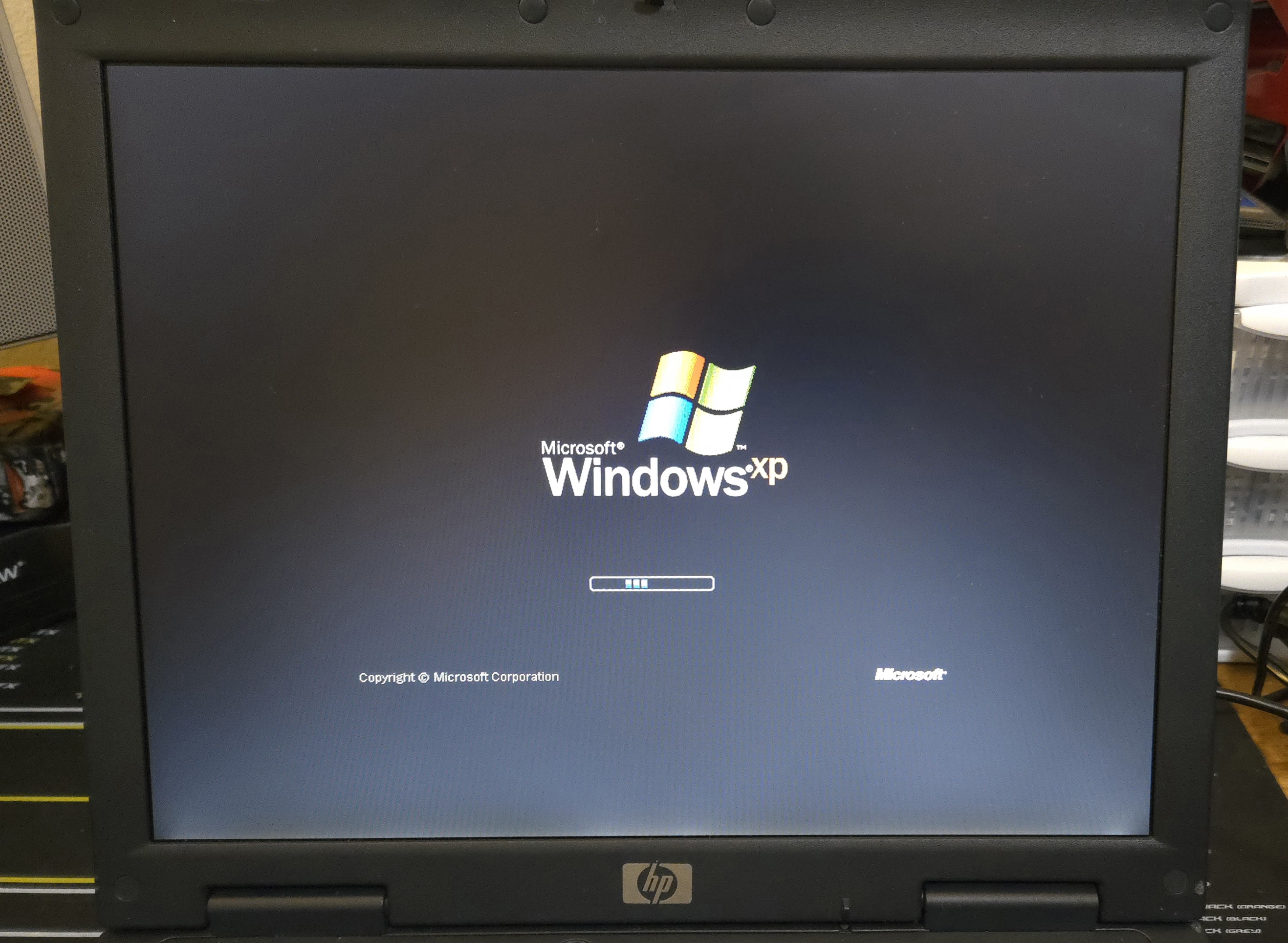

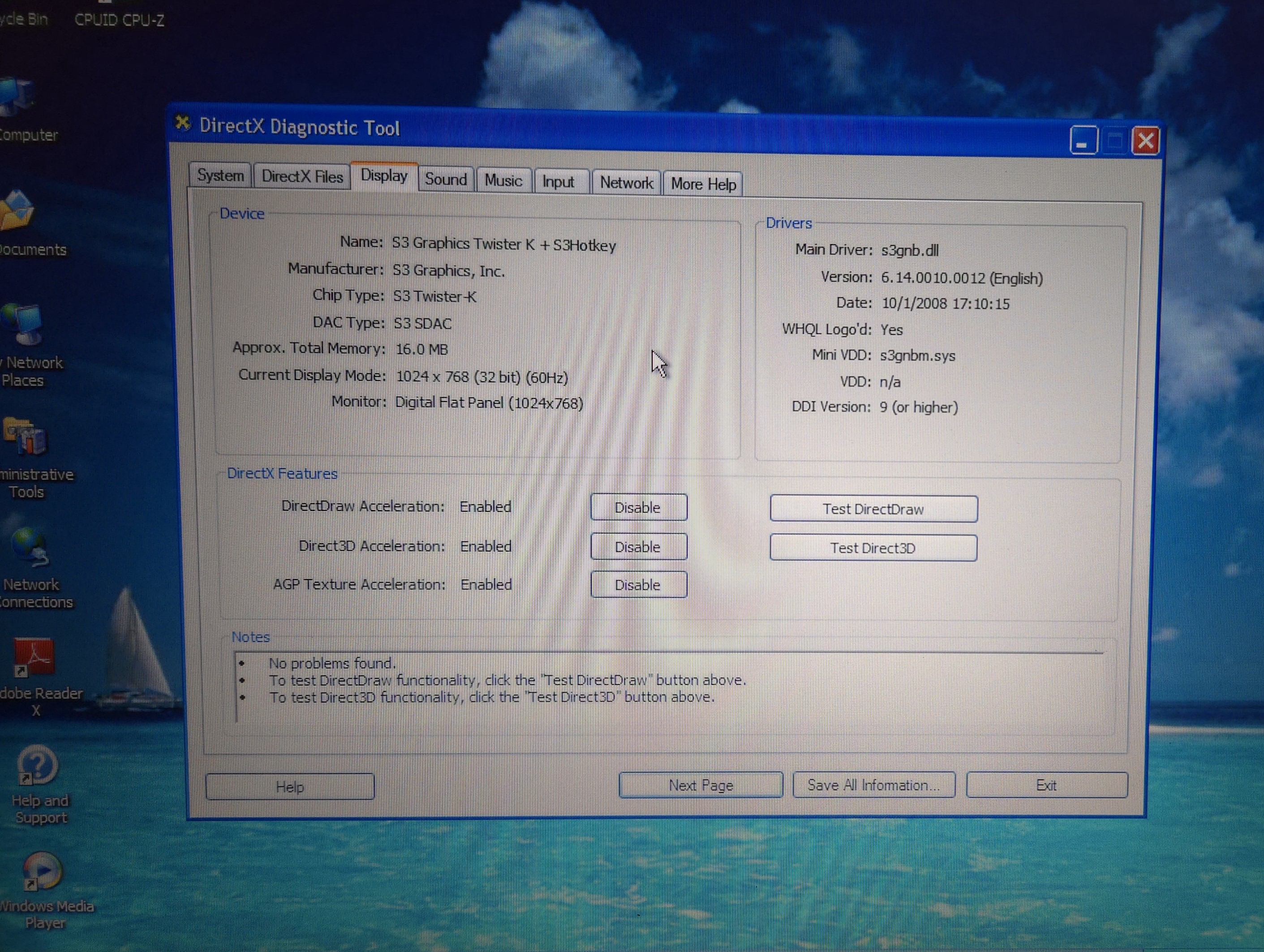

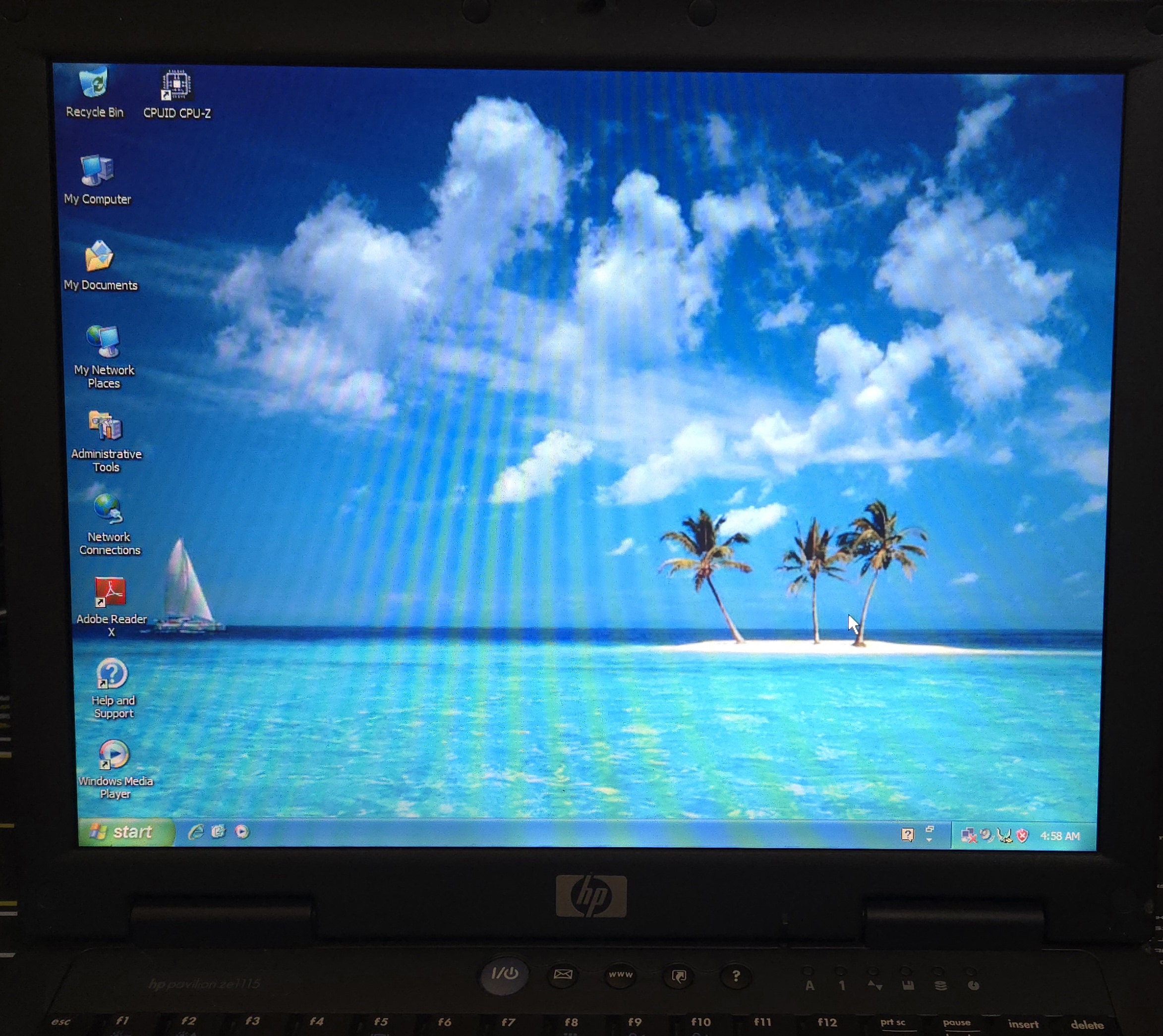

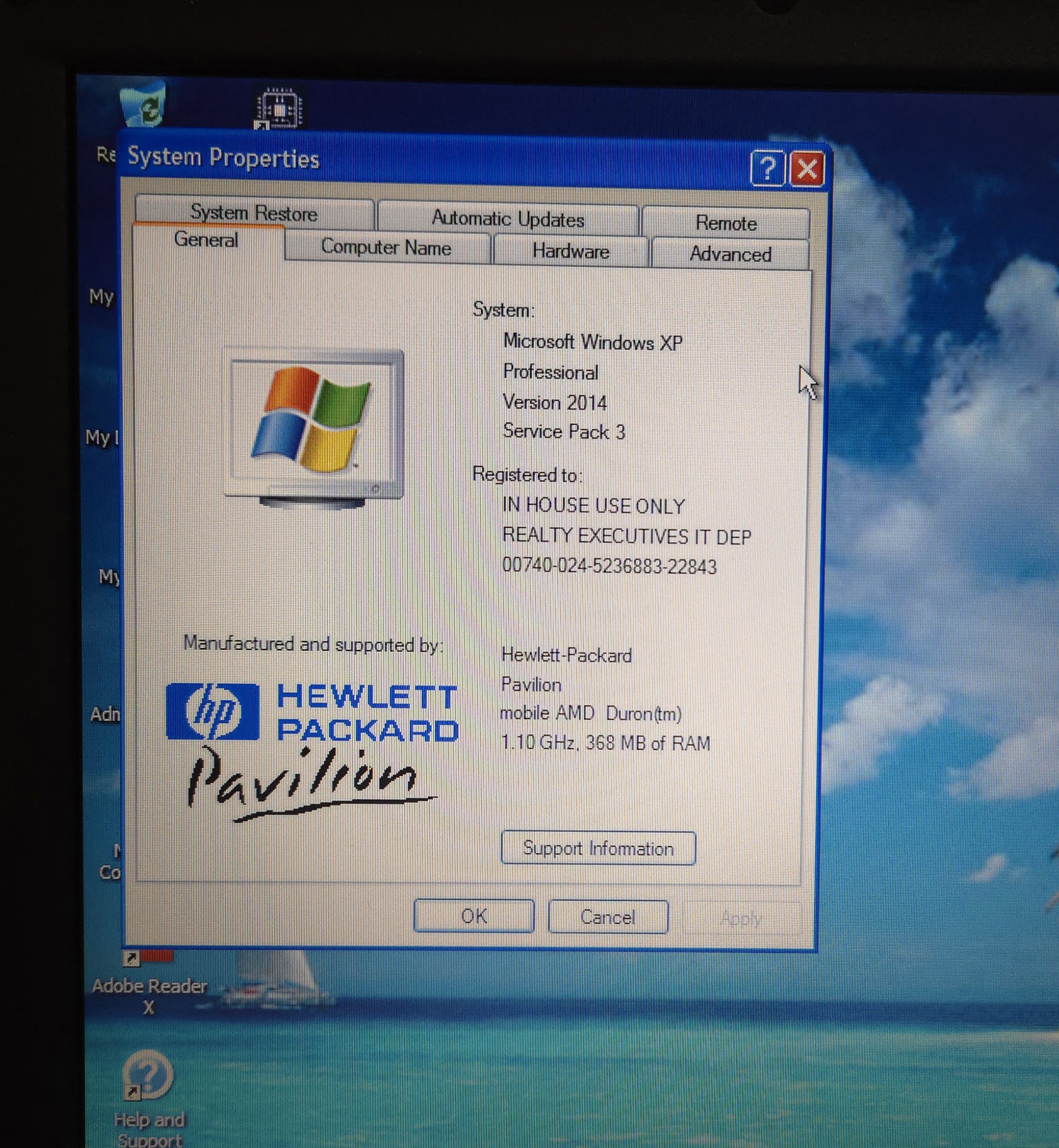

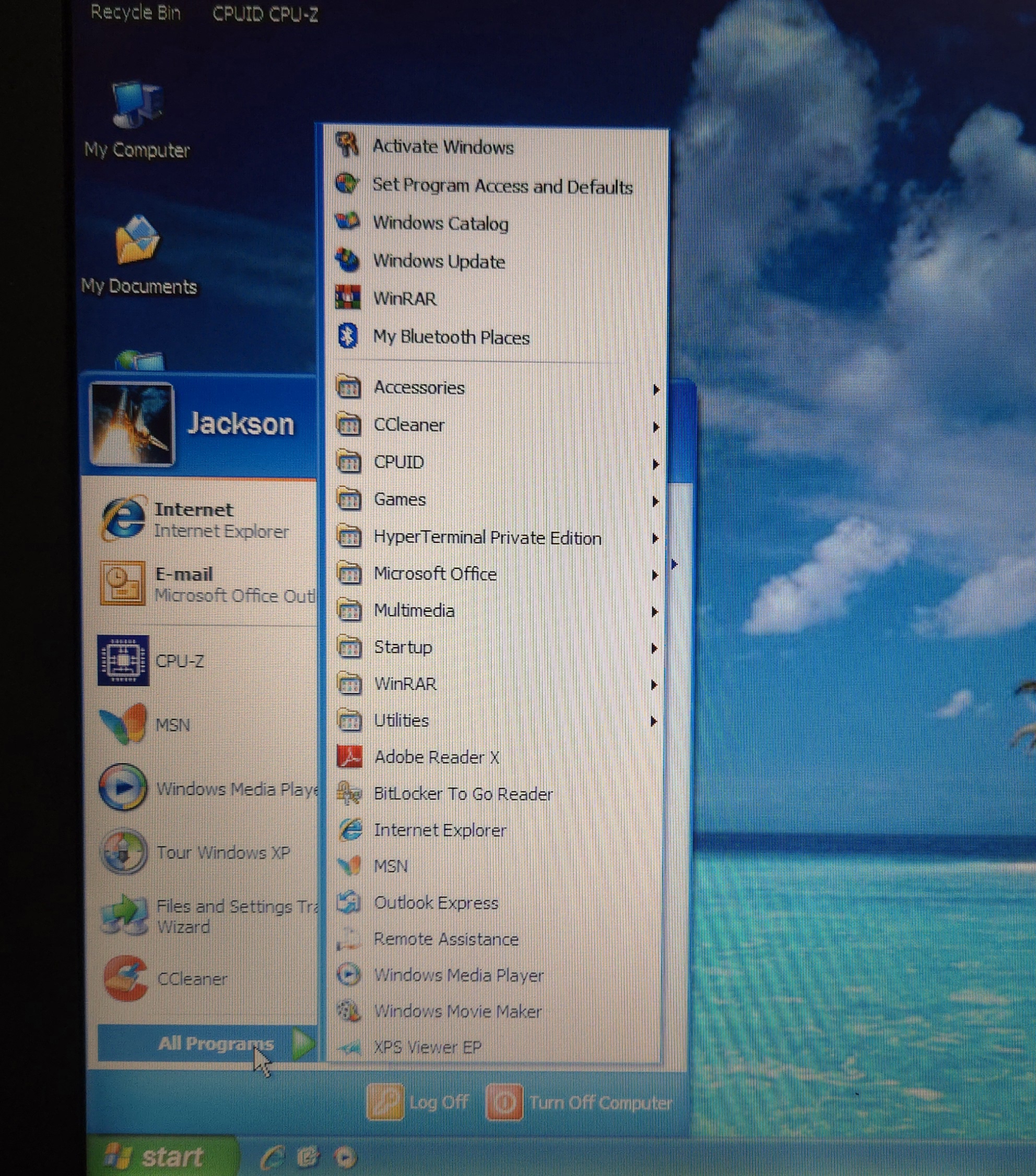

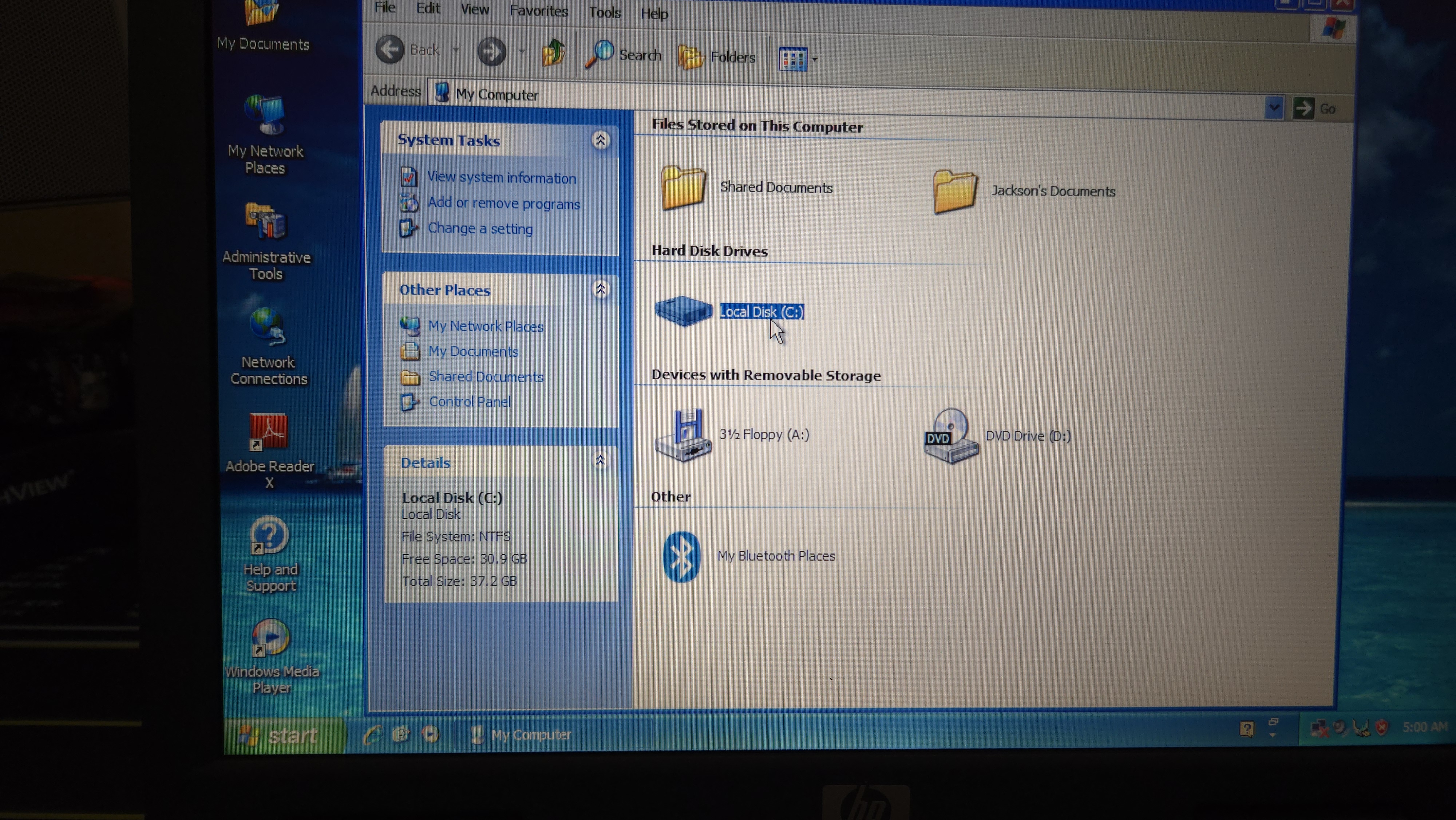

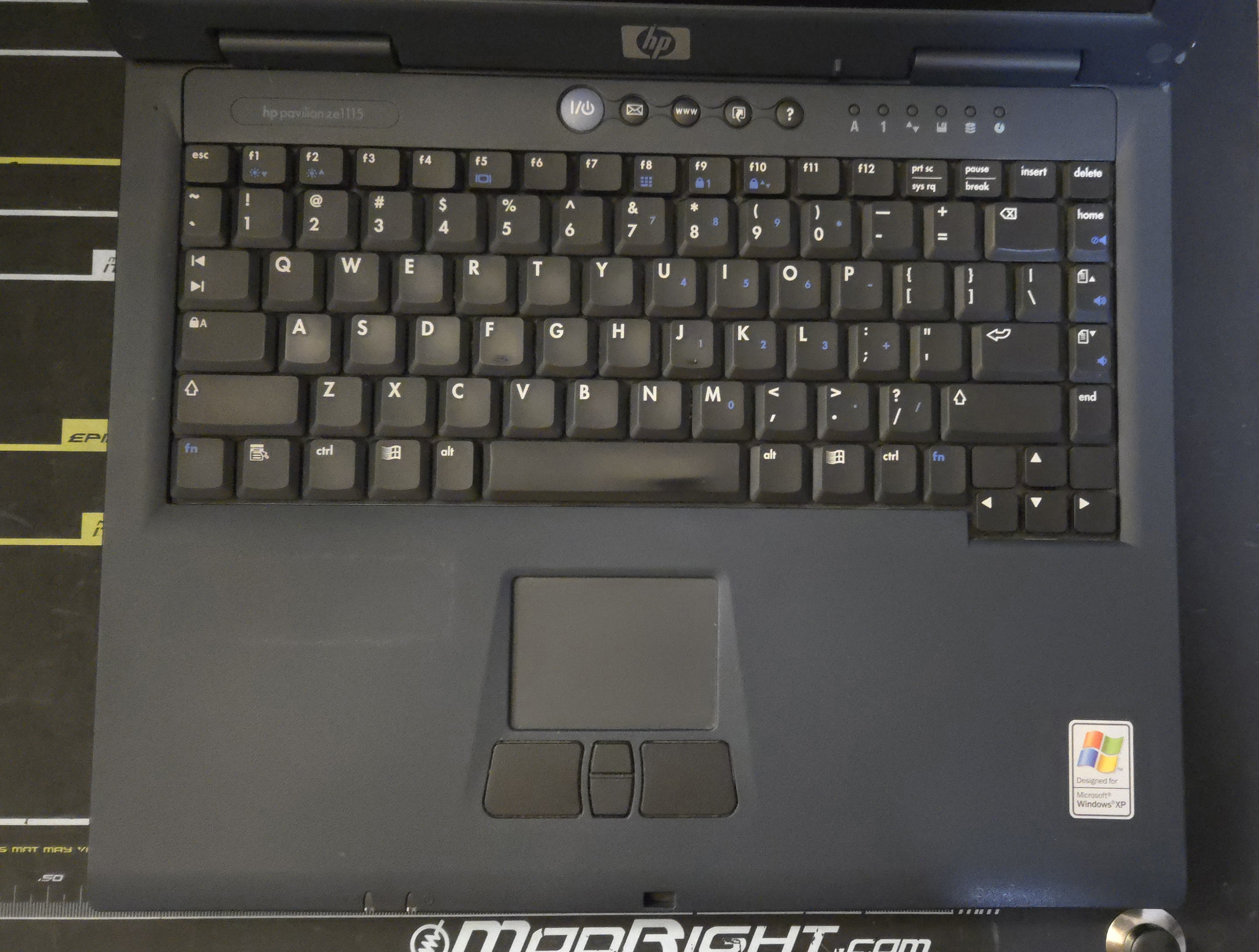

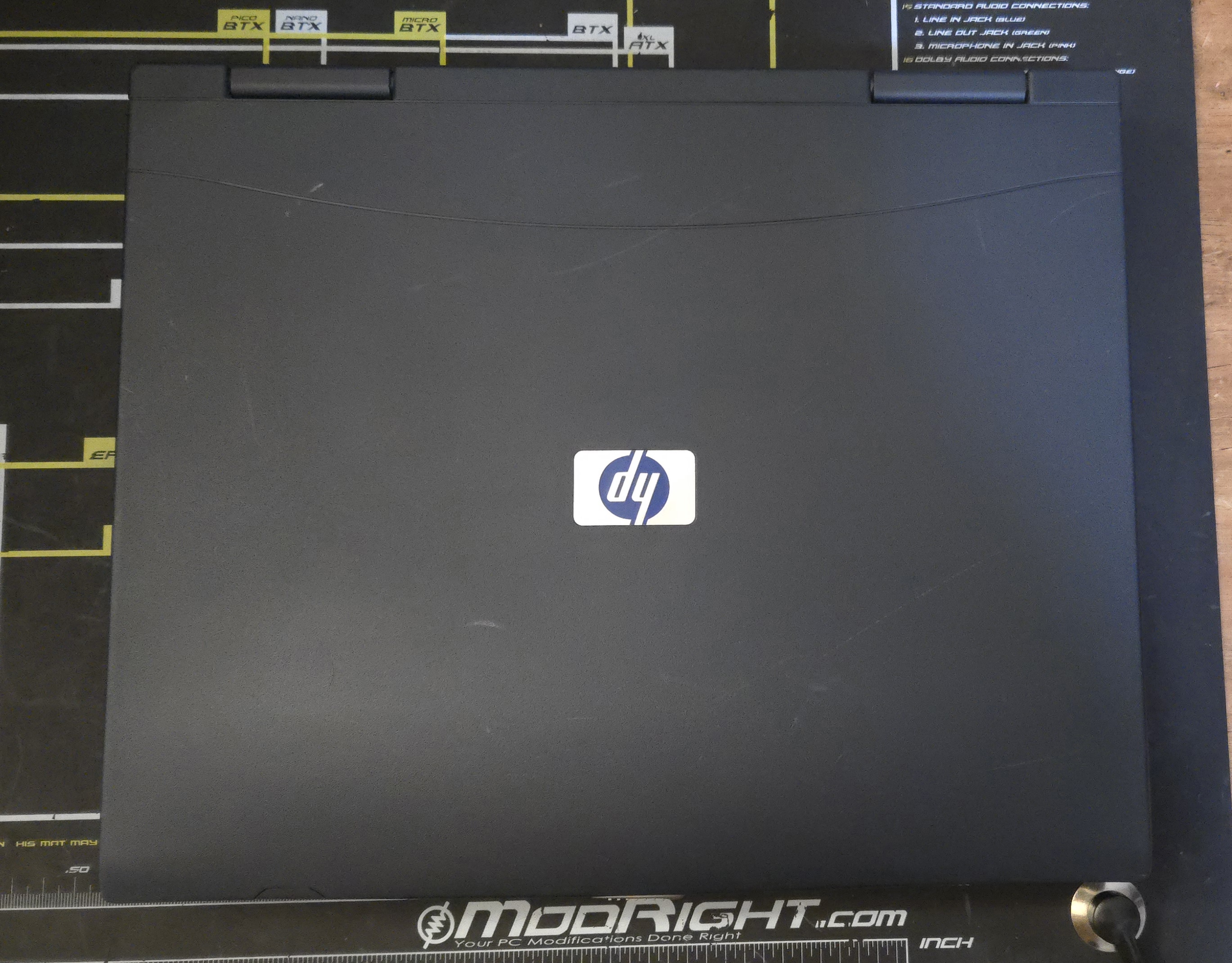

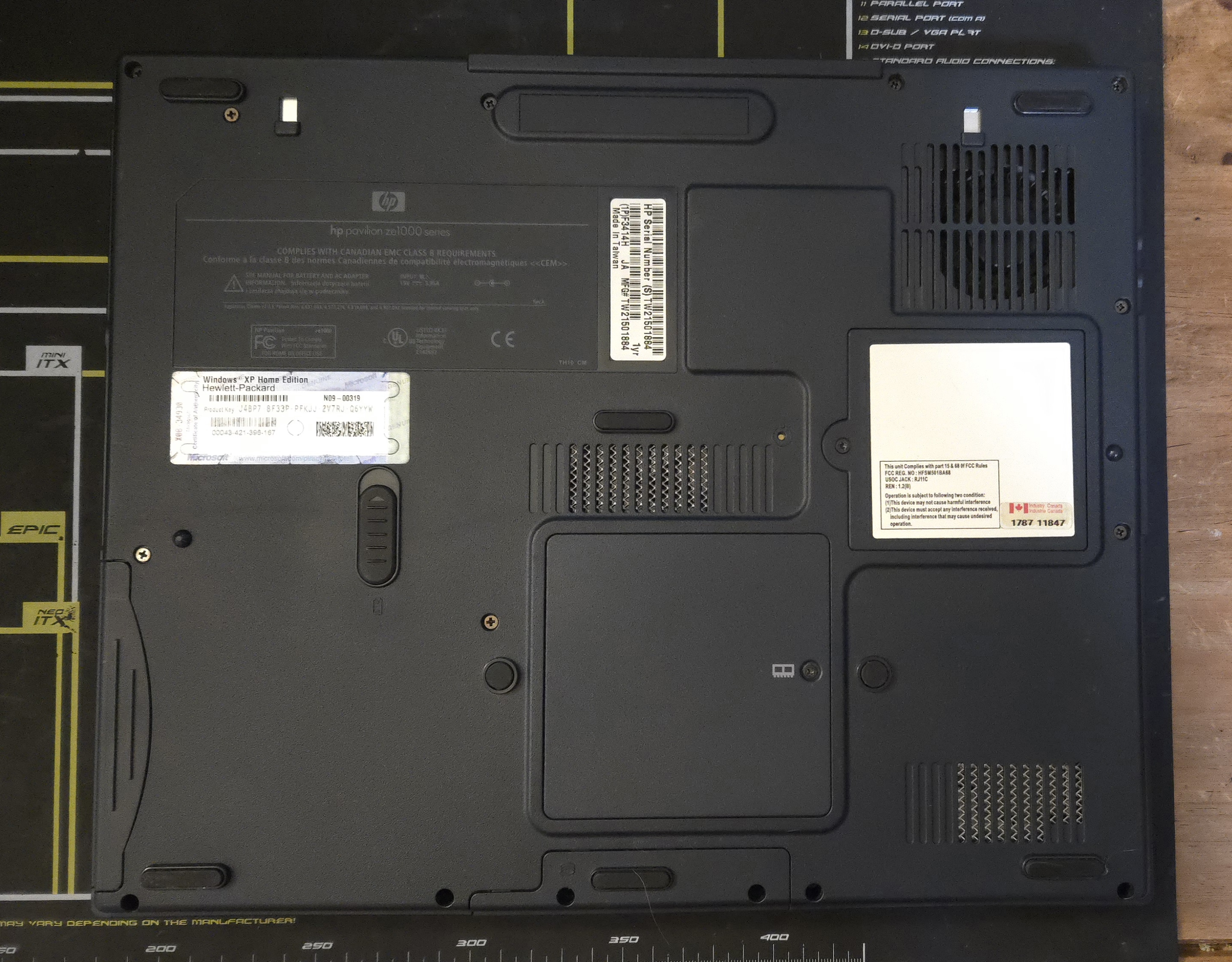

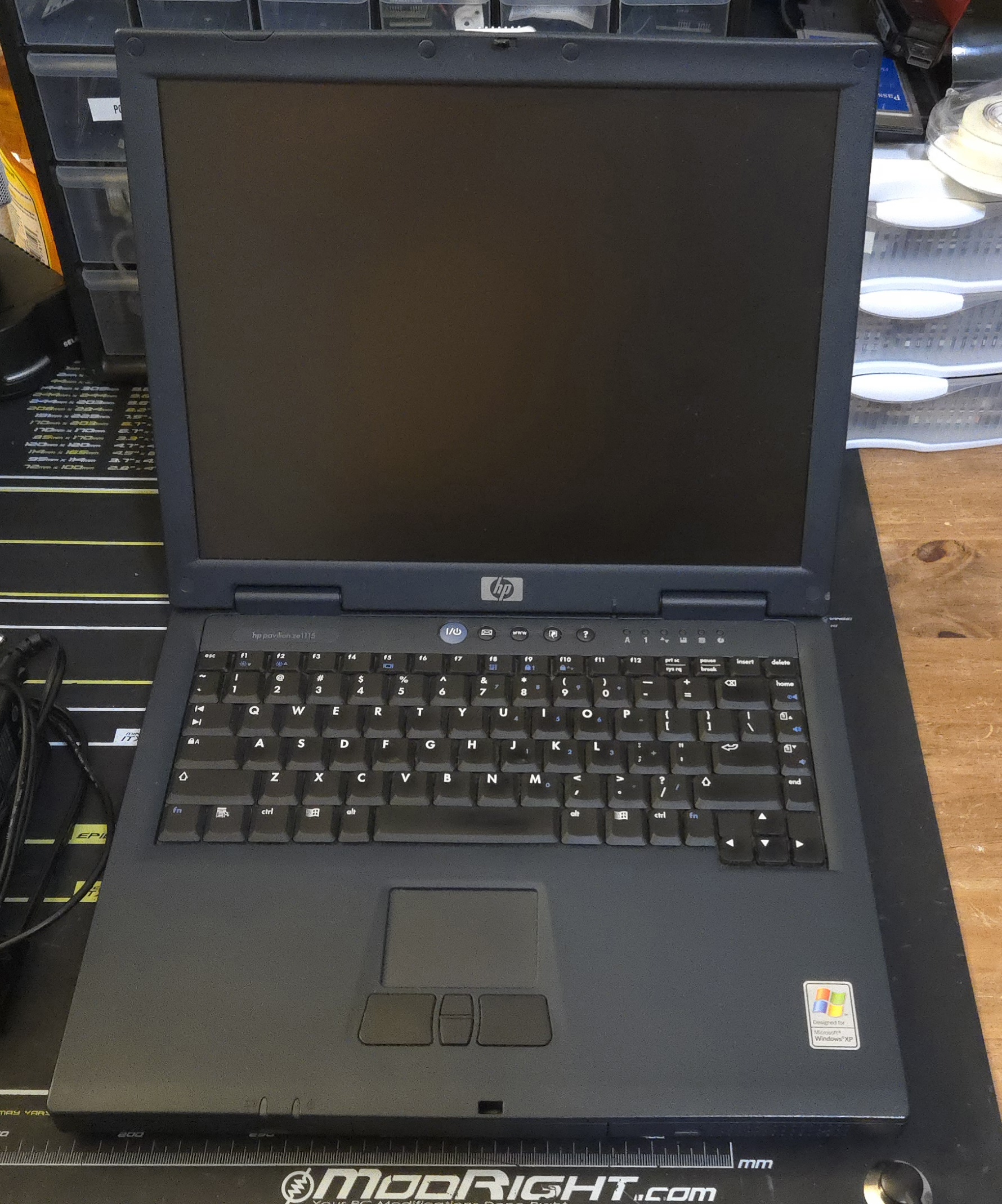

Photos of a Pavilion ze1115 from Chris Logan.
