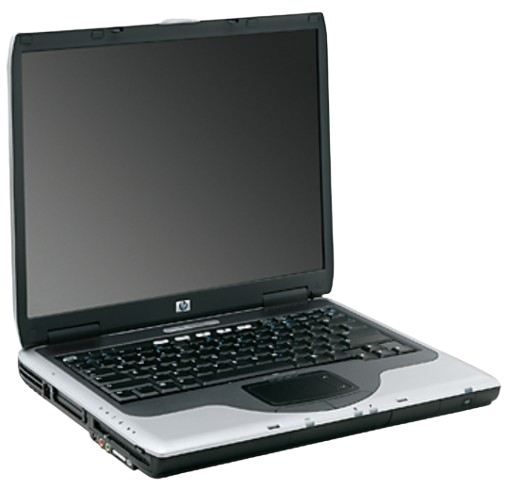

HP Compaq nx9000
The HP Compaq nx9000 is a Pentium 4-based business laptop that was released in 2003.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 479 (Northwood-M) Intel Pentium 4-M "Northwood" @2.0, 2.2, 2.4, or 2.5GHz - Intel Mobile Celeron "Northwood" @1.7, 1.8, 2.0, 2.2, or 2.4GHz |
| Chipset | ATI Radeon IGP 340M/ALi M1535+ |
| RAM | Type: DDR, 2 slots Standard: 128, 256, or 512MB Maximum: 1GB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 20, 30, 40, or 60GB |
| Display Options | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 - 15.0" TFT LCD @1400x1050 - 15.0" TFT LCD @1600x1200 |
| Graphics Chipset | ATI Radeon IGP 340M VRAM: Up to 64MB shared/SMA |
| Audio | AC Link - Stereo Speakers |
| Main Battery | Lithium Ion (8 cell) |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Media Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive (Optional) - CD-ROM Drive, DVD-ROM Drive, CD-RW Drive, or DVD/CD-RW Drive |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) |
| Networking | - 56k Modem - 10/100 Ethernet - WiFi (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Port Replicator Connector (Optional) - 2x USB 2.0 - 1x IEEE1394/FireWire - 1x S-Video Out - 1x Mic In - 1x Line Out - Infrared |
| BIOS | Unknown |
| Pointing Device | Trackpad |
Resources
| Link | Details |
|---|---|
 |
HP Compaq nx9000 Service Manual |
 |
HP Compaq nx9000 Product Brochure |
|
HP Compaq nx9000 Product Brochure (Japanese) |
 |
HP Compaq nx9000 QuickSpecs |
