Capacitor Reference - WinBook XP
Reference Values
DC/DC Module
The WinBook XP's DC/DC board has several through-hole caps on it, but they are all solid state polymer. The only ones necessitating replacement are the three SMD caps.
| Value | Count | Type |
|---|---|---|
| 100uf 25v | 1 | Surface Mount Electrolytic |
| 100uf 6v | 2 | Surface Mount Electrolytic |
Inverter Board
| Value | Count | Type |
|---|---|---|
| 33uf 25v | 1 | Surface Mount Electrolytic |
Display Interconnect Board
| Value | Count | Type |
|---|---|---|
| 22uf 50v | 4 | Surface Mount Electrolytic |
Reference Images

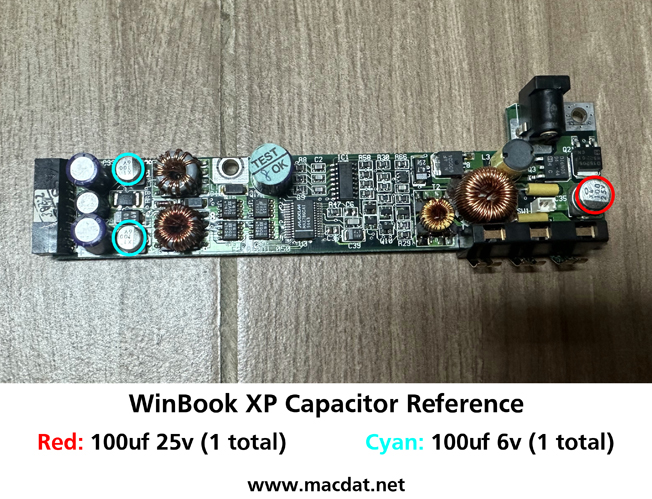

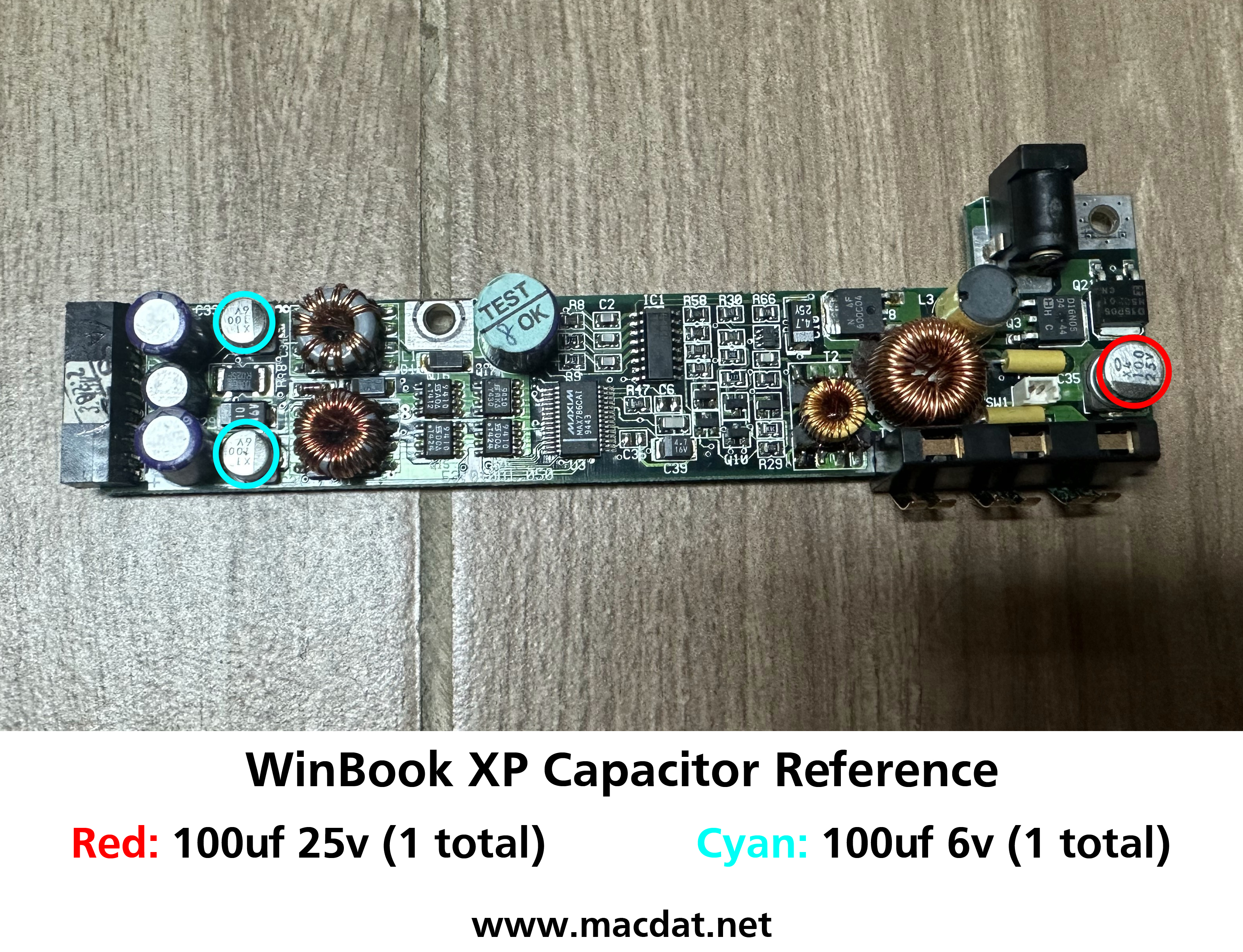

DC/DC Module

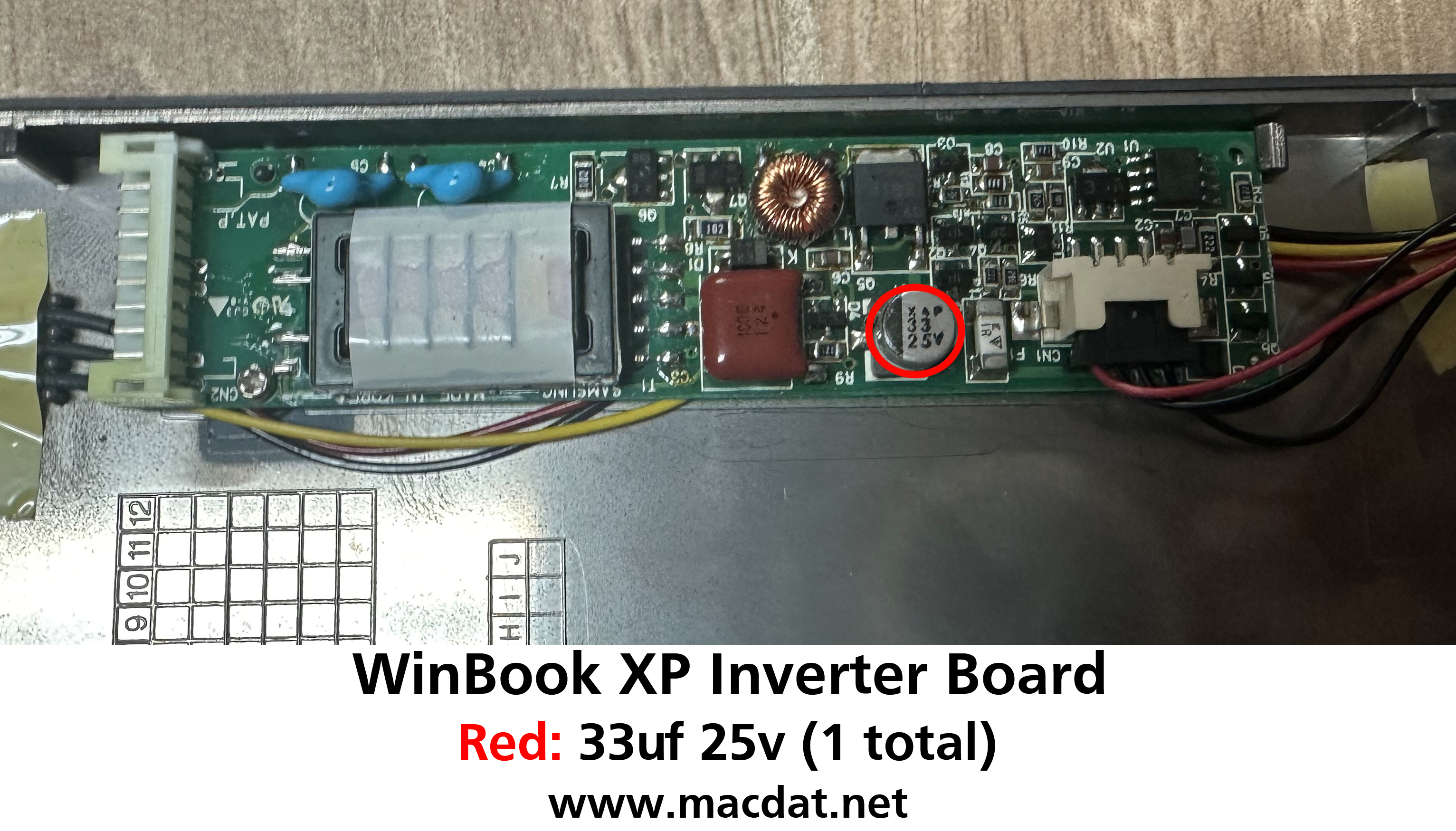

Inverter Board

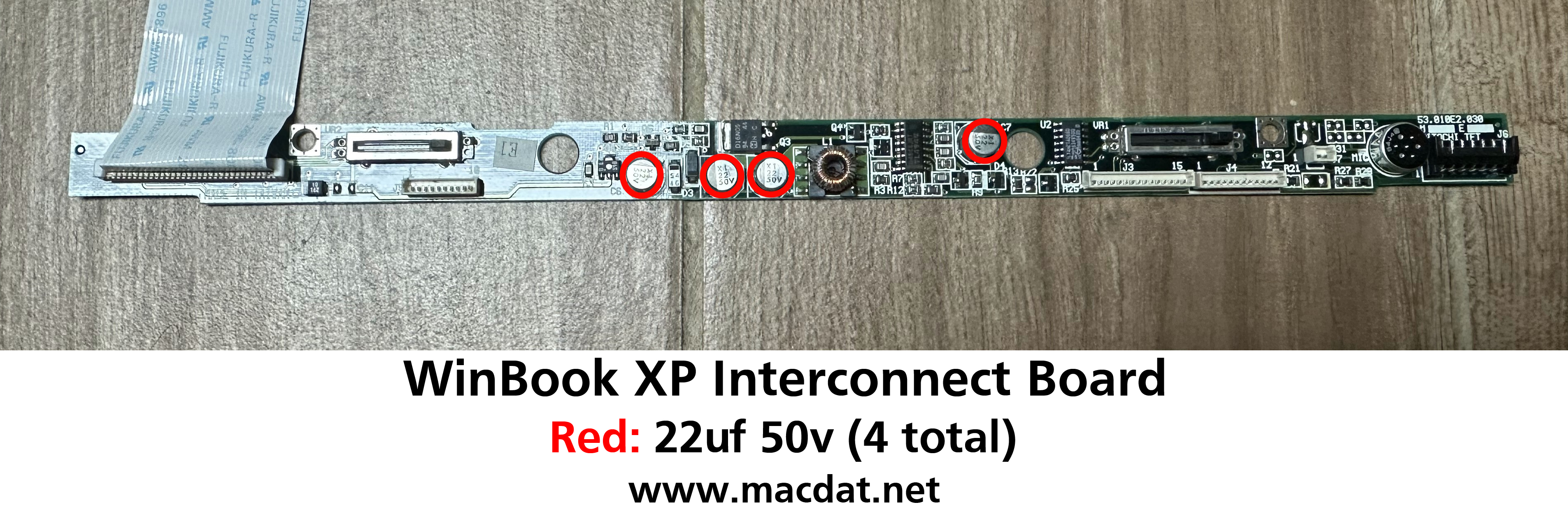

Display Interconnect Board
