Capacitor Reference - Toshiba Satellite Pro T2150CDT
May or may not apply to other T2100 Series models.

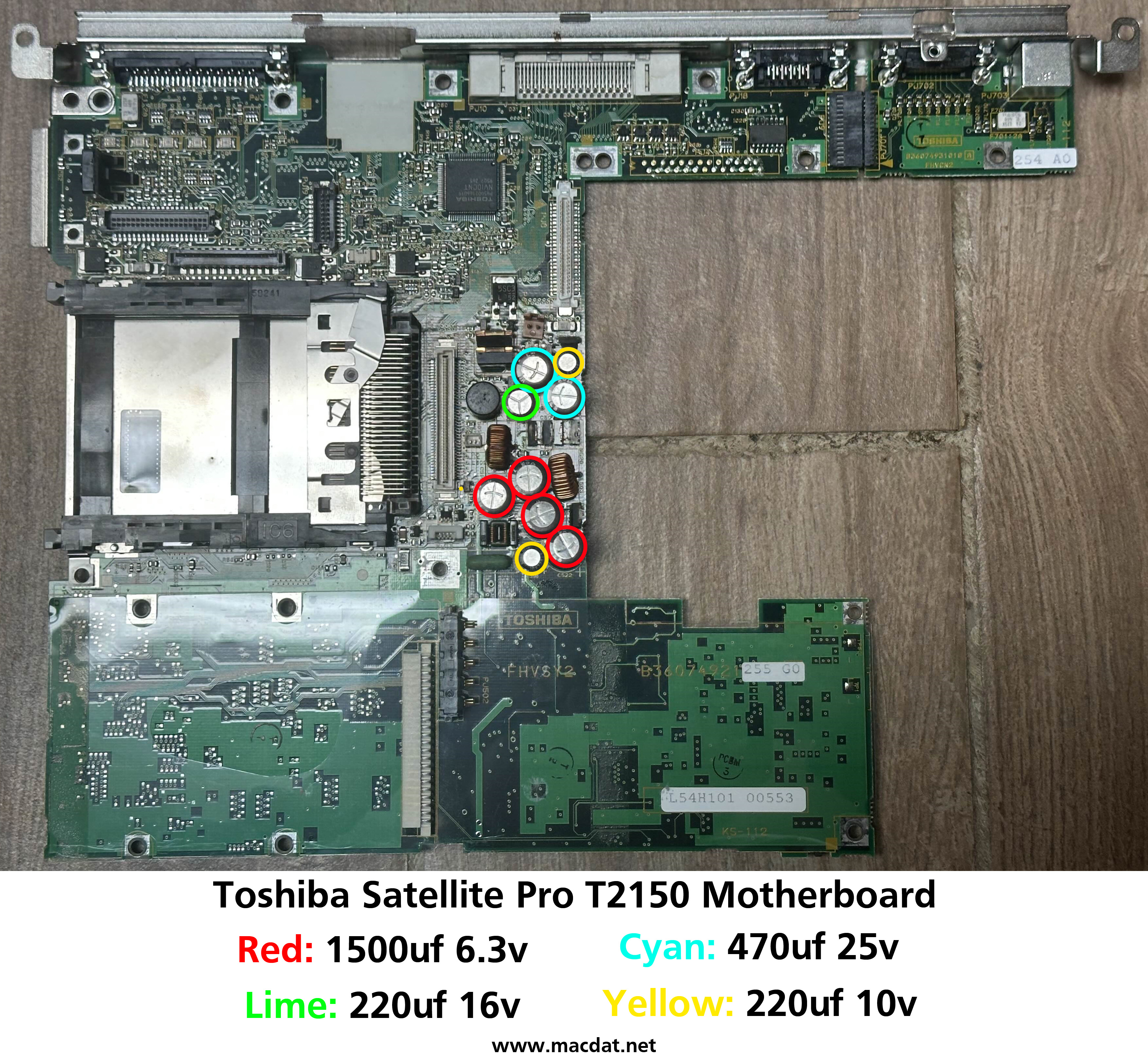

Motherboard (Top Side)
| Value | Count | Diameter | Height | Type | Series |
|---|---|---|---|---|---|
| 1500uf 6.3v | 4 | 10mm | 14mm | Radial Electrolytic | ELNA RCX |
| 470uf 25v | 2 | 10mm | 14mm | Radial Electrolytic | ELNA RCX |
| 220uf 16v | 1 | 7mm | 12mm | Radial Electrolytic | Nippon Chemi-Con SXE |
| 220uf 10v | 2 | 6mm | 12mm | Radial Electrolytic | Marcon CE-SE |

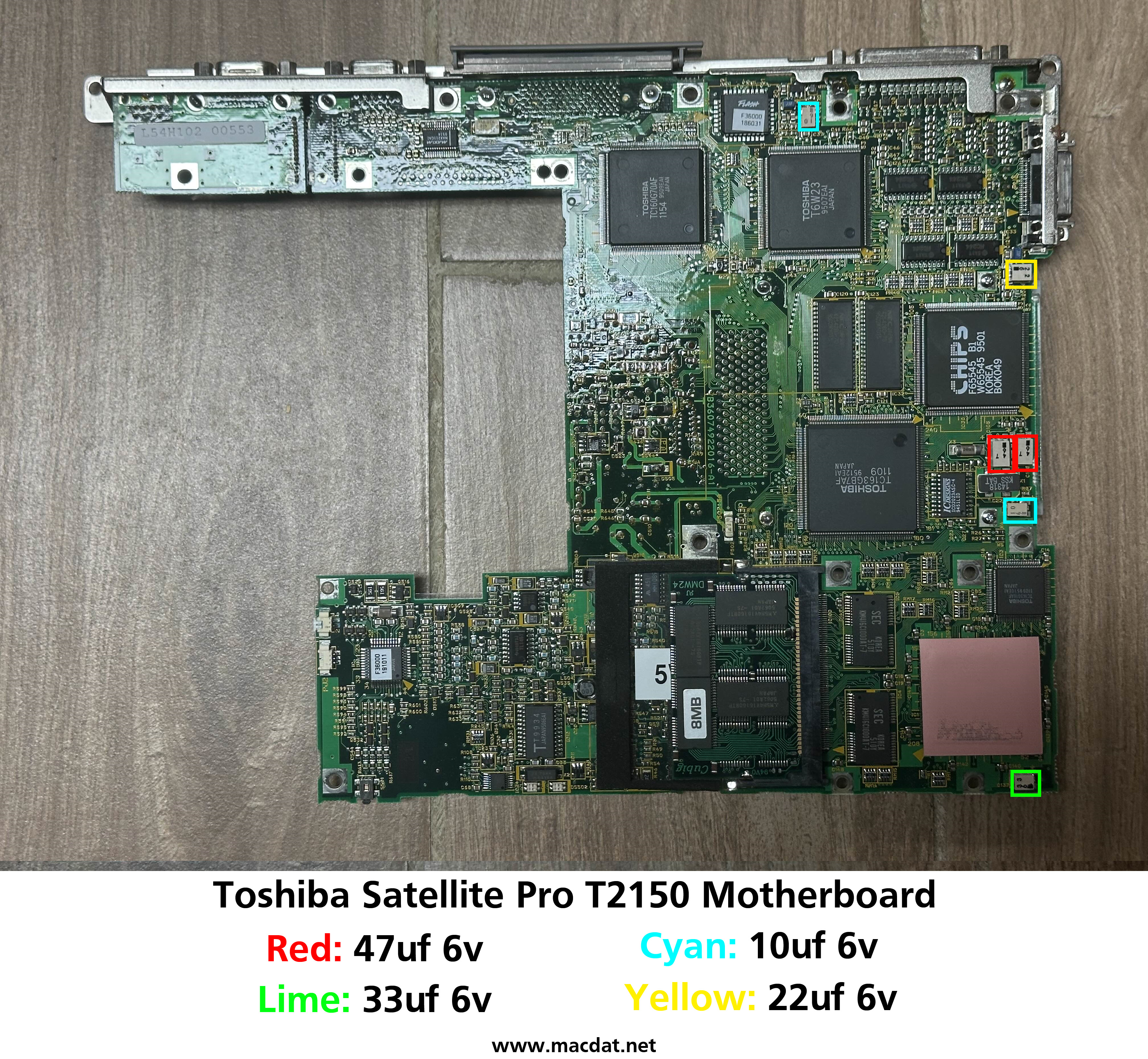

Motherboard (Bottom Side)
| Value | Count | Type |
|---|---|---|
| 47uf 6v | 2 | Low Profile Surface-Mount Electrolytic |
| 33uf 6v | 1 | Low Profile Surface-Mount Electrolytic |
| 22uf 6v | 1 | Low Profile Surface-Mount Electrolytic |
| 10uf 6v | 1 | Low Profile Surface-Mount Electrolytic |

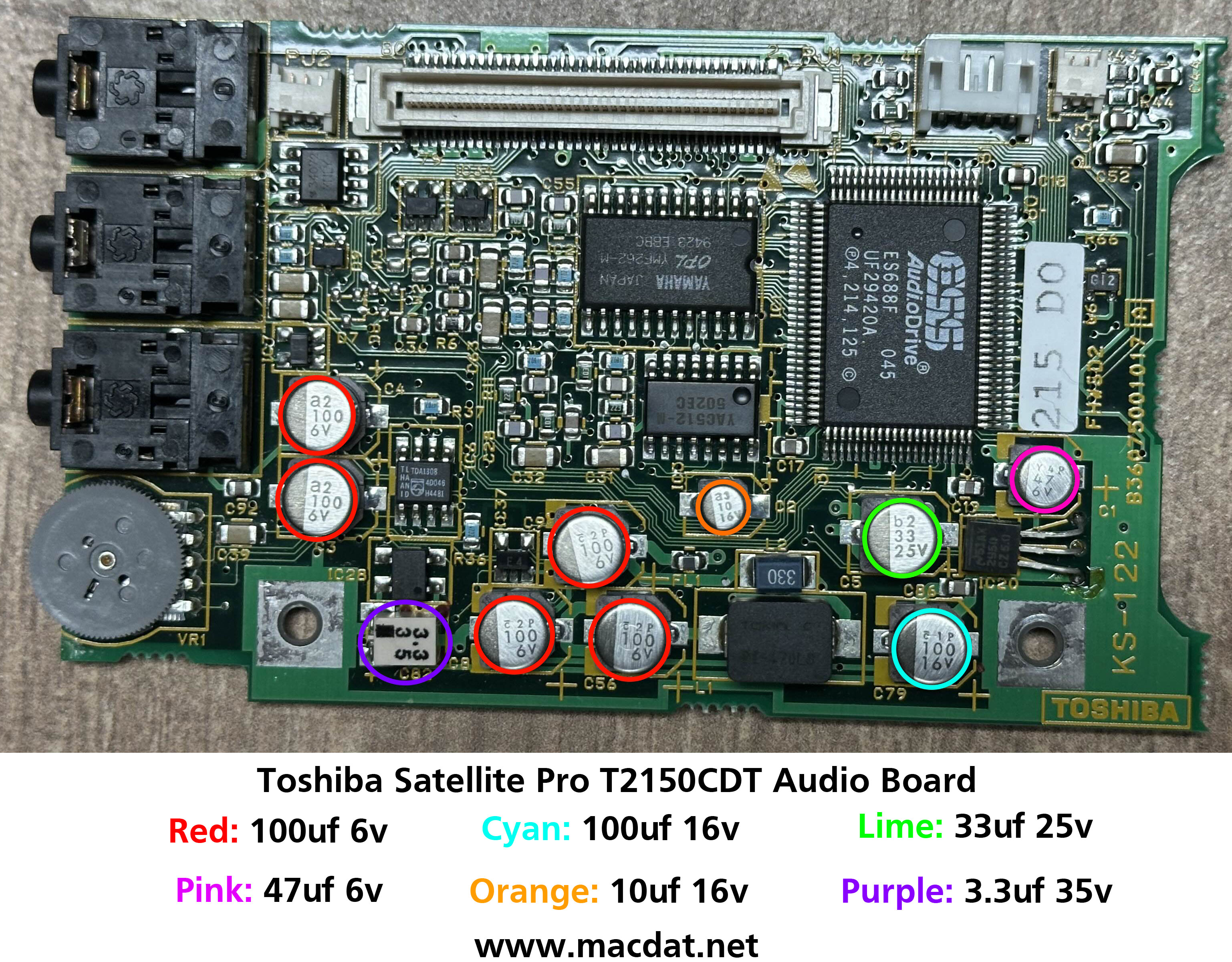

Audio Board
| Value | Count | Type |
|---|---|---|
| 100uf 16v | 1 | Surface-Mount Electrolytic |
| 100uf 6v | 5 | Surface-Mount Electrolytic |
| 47uf 6v | 1 | Surface-Mount Electrolytic |
| 33uf 25v | 1 | Surface-Mount Electrolytic |
| 10uf 16v | 1 | Surface-Mount Electrolytic |
| 3.3uf 35v | 1 | Low Profile Surface-Mount Electrolytic |
Inverter Board
The 10uf 35v cap failing and leaking is the cause of the inverter whine issue that is very common on these. The second polymer cap does not need replacement.
| Value | Count | Type | Diameter | Height |
|---|---|---|---|---|
| 10uf 35v | 1 | Radial Electrolytic | 5mm | 6mm |
| 33uf 10v | 1 | Radial Polymer | 6.5mm | 6mm |
Page last updated (MM/DD/YYYY): 12/28/2025
Update Reason: page finished
