Capacitor Reference - NEC UltraLite SL/25C
Must be recapped for operation. The purple caps are Sanyo OS-CON Polymer and do not need replacement.

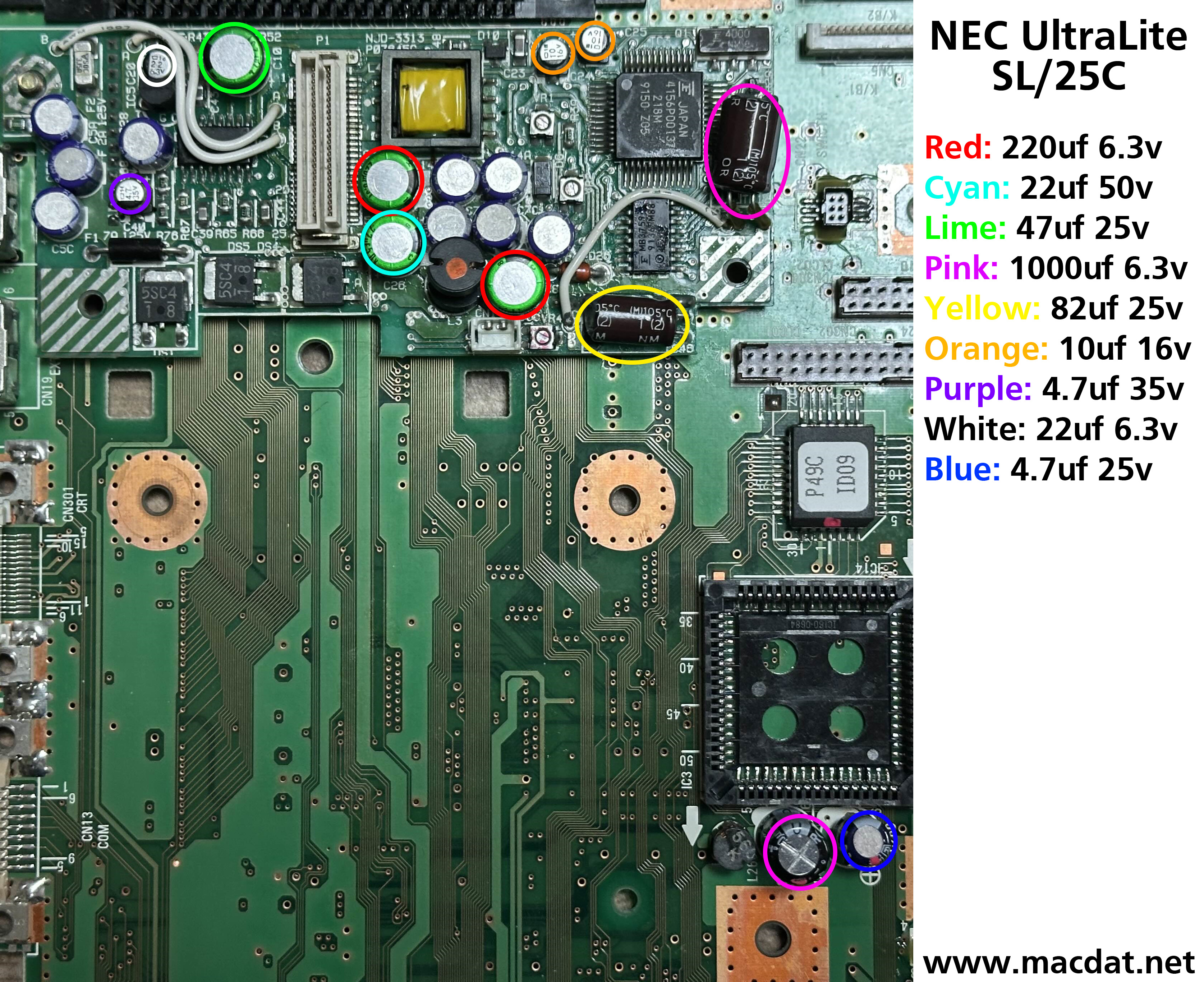

Motherboard
| Value | Count | Diameter | Height | Type |
|---|---|---|---|---|
| 1000uf 6.3v | 2 | 7mm | 12mm | Radial Electrolytic |
| 220uf 6.3v | 2 | 7mm | 8mm | Radial Electrolytic |
| 82uf 25v | 1 | 6mm | 11mm | Radial Electrolytic |
| 47uf 25v | 1 | 7mm | 8mm | Radial Electrolytic |
| 22uf 50v | 1 | 7mm | 8mm | Radial Electrolytic |
| 22uf 6.3v | 1 | 3mm | 6 | Surface-Mount Electrolytic |
| 10uf 16v | 2 | 3mm | 6mm | Surface-Mount Electrolytic |
| 4.7uf 35v | 1 | 3mm | 6mm | Surface-Mount Electrolytic |
| 4.7uf 25v | 1 | 6mm | ~6-7mm | Radial Electrolytic |
Page last updated (MM/DD/YYYY): 12/28/2025
Update Reason: page finished
