Capacitor Reference - Power Macintosh 5500

Recapping a 5500 isn't strictly necessary, but isn't a bad idea as preventative maintenance. I don't have the analog board cap reference at this time.

---

Logic Board

Value	Count	Type	Diameter	Height
100uf 25v	1	Surface-Mount Electrolytic	8mm	10mm
100uf 6.3v	6	Surface-Mount Electrolytic	6mm	5mm
47uf 16v	12	Surface-Mount Electrolytic	6mm	5mm

---

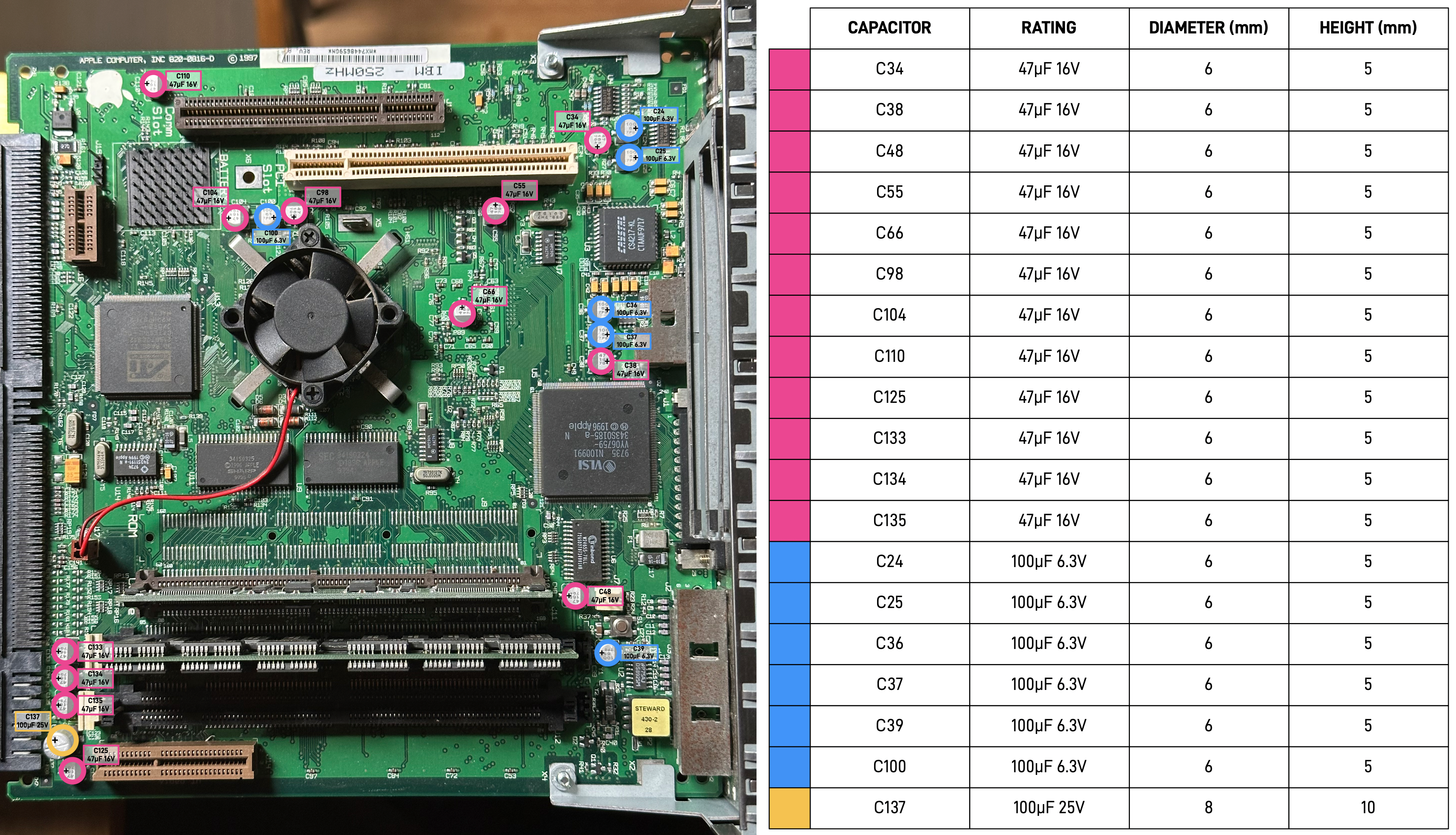

Reference Image

Image sent in by Daan.

Click image below to view the full-resolution version.

---

Page last updated (MM/DD/YYYY): 08/31/2025
Update Reason: page created
