Capacitor Reference - Macintosh Classic

The Macintosh Classic should be a recap on sight.

Note: If replacing the surface-mount capacitors with tantalum caps, purchase 25V rated caps instead of 16V for the 47uf caps! See this thread on 68kMLA for more info on why.

---

Reference Values

Logic Board

Value	Count	Type
47uf 16v	7	Surface-Mount Electrolytic
1uf 50v	1	Surface-Mount Electrolytic

---

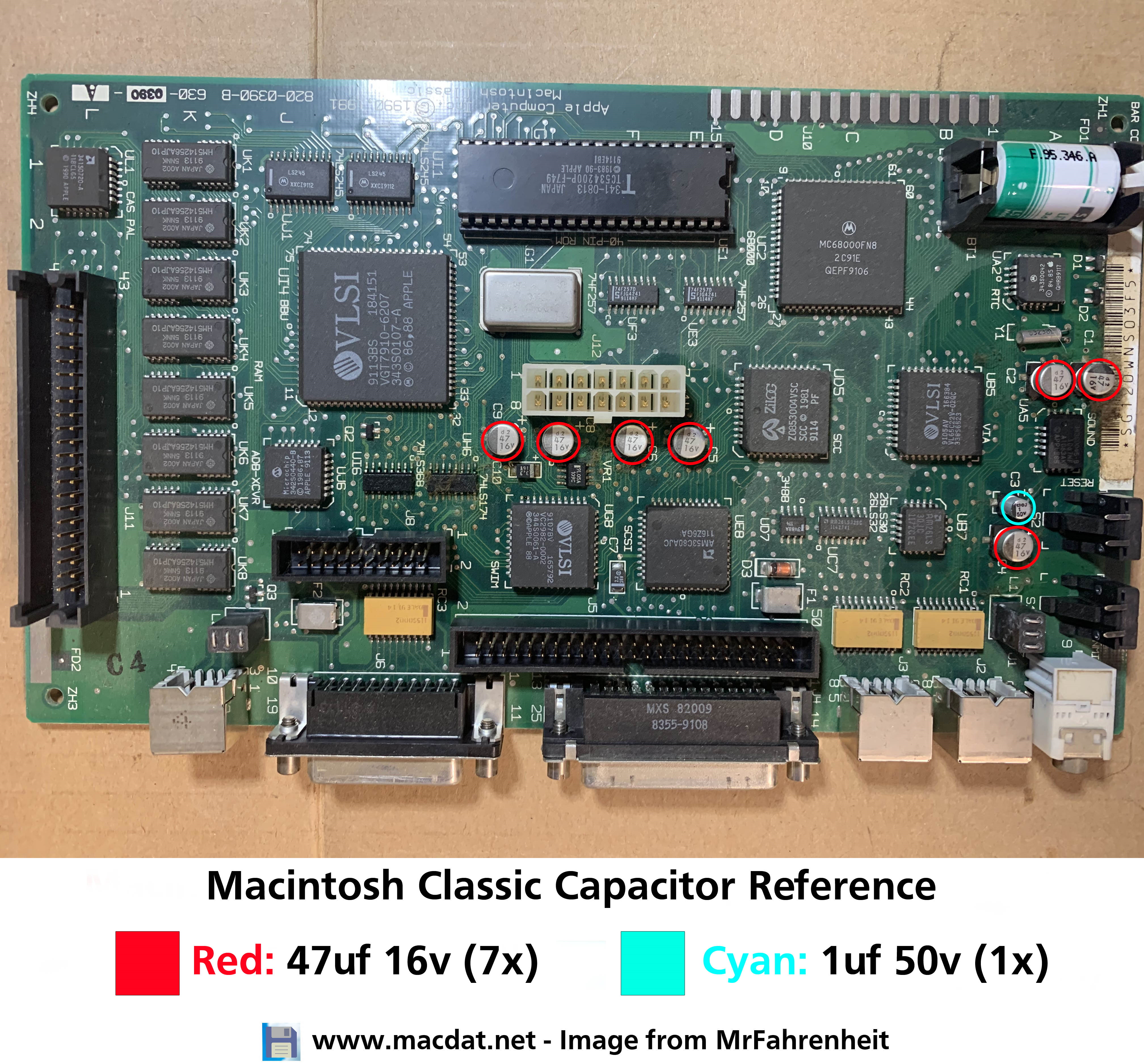

Reference Image

Click image below to view the full-resolution version.

---

Page last updated (MM/DD/YYYY): 09/23/2024
Update Reason: formatting updated
