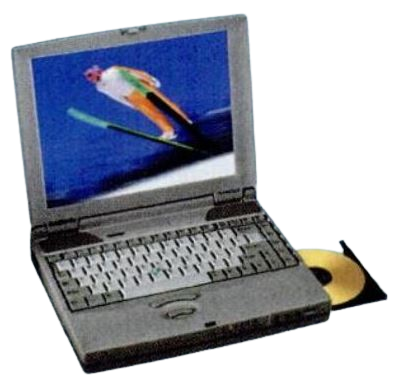

Toshiba Satellite Pro 480CDT
The Satellite Pro 480CDT is a Pentium MMX-based laptop that was released in November 1997. In spite of its name, it actually predates the 470CDT by a few months.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel Pentium MMX @233MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 32MB Maximum: 160MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 3.82GB |
| Display Options | 12.1" Active Matrix LCD @800x600 |
| Graphics Chipset | Chips & Technologies 65555 VRAM: 2MB |
| Audio | Yamaha OPL3-SA3 - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (10.8V, 3600mAH) |
| CMOS Battery | Varta NiMH |
| Power Supply | Unknown |
| Media Drives | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - CD-ROM Drive - 2nd HDD - 2nd Battery |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support |
| Networking | Modem |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.1 - 1x External FDD Connector - 1x Mic In - 1x Line In - 1x Line Out - Infrared |
| BIOS | Toshiba |
| Pointing Device | TrackPoint |
Resources
 FRU Replacement Documentation |
Specsheet |
|---|
Common Faults & Maintenance
The Varta CMOS and reserve batteries in the 480CDT are extremely prone to leaking and should be removed to prevent damage.
The plastics on these may be going brittle with age.
Page last updated (MM/DD/YYYY): 04/09/2025
Update Reason: page created
