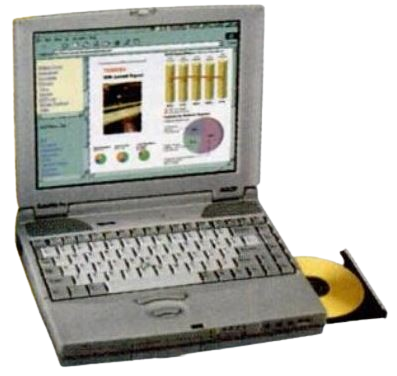

Toshiba Satellite Pro 460CDX and 460CDT
The Satellite Pro 460CDX and 460CDT are Pentium MMX-based laptops that were released in November 1997. Toshiba also sold a 465CDX model, which was identical to the 460CDX, aside from coming with a longer warranty and more bundled software.
Specifications
| Spec | Satellite Pro 460CDX | Satellite Pro 460CDT |
|---|---|---|
| Release Date | November 1997 | |
| CPU | CPU Type: Soldered TCP Intel Pentium MMX @166MHz | |
| Chipset | Unknown | |
| RAM | Type: Unknown Standard: 32MB Maximum: 160MB | |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 2.02GB | |
| Display Options | 12.1" Passive Matrix LCD @800x600 | 12.1" Active Matrix LCD @800x600 |
| Graphics Chipset | Chips & Technologies 65554 VRAM: 2MB | |
| Audio | Yamaha OP3-SA3 - Stereo Speakers | |
| Main Battery | Lithium Ion (10.8V, 3600mAH) | |
| CMOS Battery | Varta NiMH | |
| Power Supply | Unknown | |
| Media Drives | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - CD-ROM Drive - 2nd HDD - 2nd Battery | |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support | |
| Networking | Modem (Optional) | Modem |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.1 - 1x External FDD Connector - 1x Mic In - 1x Line In - 1x Line Out - Infrared | |
| BIOS | Toshiba | |
| Pointing Device | TrackPoint | |
Resources
 FRU Replacement Documentation |
Specsheet |
|---|
Common Faults & Maintenance
The Varta CMOS and reserve batteries in the 460 series Toshibas are extremely prone to leaking and should be removed to prevent damage.
The plastics on these may be going brittle with age.
Page last updated (MM/DD/YYYY): 04/09/2025
Update Reason: page created
