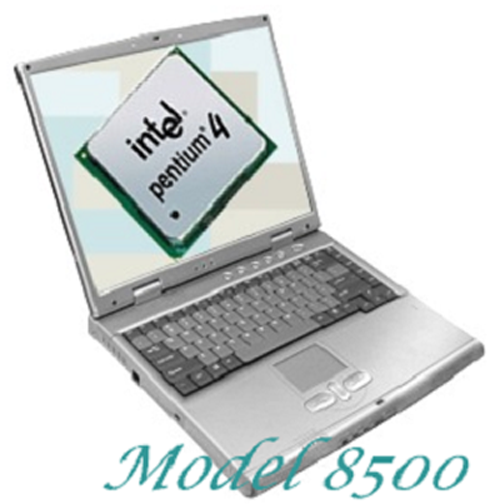

MiTAC MiNote 8575
The MiTAC MiNote 8575 is a Pentium 4-based generic/ODM laptop that was released in 2002.
Below is a list of brands/names that are known to be this laptop:
- HyperData Model 8500
- Others?
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 478 - Intel Pentium 4 "Willamette" @Up to 1.7GHz - Intel Pentium 4 "Northwood" @Up to 2.0GHz |
| Chipset | SiS 650 + SiS 961 |
| RAM | Type: DDR, 2 slots Standard: N/A Maximum: 1GB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: N/A |
| Display Options | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 |
| Graphics Chipset | SiS 650 Chipset Graphics VRAM: Up to 64MB shared/SMA |
| Audio | Unknown Sound Blaster Pro Compatible - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (3.7V, 2000mAH) |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Media Drives | One of the following optical drives: - 24X CD-ROM Drive - 8X DVD-ROM Drive - CD-RW Drive - DVD/CD-RW Drive |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) |
| Networking | - 56k Modem - 10/100 Ethernet - WiFi (Optional) |
| Other I/O | - 1x Parallel - 1x VGA Out - 4x USB - 1x IEEE1394/FireWire - 1x S-Video Out - 1x Mic In - 1x Line Out - Infrared |
| BIOS | Unknown |
| Pointing Device | Trackpad |
Resources
 Service Manual & Schematics |
|---|
Page last updated (MM/DD/YYYY): 04/07/2025
Update Reason: added service manual
