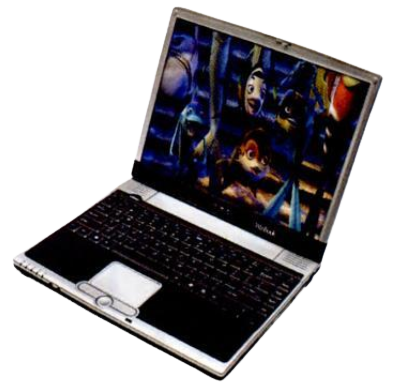

MiTAC MiNote 8081
The MiTAC MiNote 8081 is a Pentium M-based generic/ODM laptop that was released in 2004.
Below is a list of brands/names that are known to be this laptop:
- WinBook C200 Series
- Lenovo
- Others?
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 479 (Banias/Dothan) - Intel Pentium M/Celeron M "Banias" @1.3-1.7GHz - Intel Pentium M/Celeron M "Dothan" @1.8GHz or above |
| Chipset | Intel 855GM |
| RAM | Type: DDR, 1 slot Standard: 256MB Soldered Maximum: 768MB |
| Storage | 2.5" IDE Requires Adapter: No Standard: 30GB |
| Display Options | 14.1" TFT LCD @1024x768 |
| Graphics Chipset | Intel 855GM Chipset Graphics VRAM: Shared/SMA |
| Audio | CMI9738-S AC97 - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (6 cell, 4000mAH) |
| CMOS Battery | CR2032 Lithium (Socketed) |
| Power Supply | Barrel Jack |
| Media Drives | One of the following optical drives: - CD-ROM Drive - DVD-ROM Drive - CD-RW Drive - DVD/CD-RW Drive |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) - R5C551 Controller |
| Networking | - 56k Modem - 10/100 Ethernet - WiFi |
| Other I/O | - 4x USB 2.0 - 1x IEEE1394/FireWire - 1x VGA Out - 1x Mic In - 1x Line Out |
| BIOS | Insyde |
| Pointing Device | Trackpad (Synaptics) |
Resources
 Service Manual & Schematics |
|---|
Page last updated (MM/DD/YYYY): 04/07/2025
Update Reason: added service manual
