IBM ThinkPad 535 Series
The ThinkPad 535 Series were Pentium-based subnotebooks that were initially released in 1996 and sold through 1998. There were three models in the series - the 535, 535E, and 535X. These ThinkPads were exclusive to Japan.
Specifications
| Spec | ThinkPad 535 | ThinkPad 535E | ThinkPad 535X |
|---|---|---|---|
| Release Date | 1996 | 1997 | 1998 |
| CPU | CPU Type: Unknown Intel Pentium @120 or 133MHz | CPU Type: Unknown Intel Pentium MMX @150MHz | CPU Type: Unknown Intel Pentium MMX @200MHz |
| Chipset | Intel 430MX (Mobile Triton) | Unknown | Intel 430TX |
| RAM | Type: Unknown Standard: 8MB Maximum: 40MB | Type: Unknown Standard: 16MB Maximum: 72MB | Type: EDO, 1x 144-pin slot Standard: 32MB Maximum: 96MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 810MB or 1.08GB | 2.5" IDE Requires Adapter: Unknown Standard: 1.6GB | 2.5" IDE Requires Adapter: Unknown Standard: 3.2GB |
| Display Options | 10.4" Active Matrix Color LCD @800x600 | ||
| Graphics Chipset | Trident Cyber 9320 VRAM: 1MB | NeoMagic MagicGraph 128XD VRAM: 2MB | |
| Audio | IBM Mwave | Crystal CS4237B - Mono Speaker - Microphone | |
| Main Battery | Lithium Ion | ||
| CMOS Battery | - Lithium CMOS Battery - NiMH Varta Reserve Battery | Proprietary Lithium | |
| Power Supply | Unknown | ||
| Media Drives | None, external FDD supported | ||
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support | |
| Networking | Modem | ||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x External FDD Connector - 1x Mic In - 1x Headphone Out - Infrared | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 2x USB - 1x External FDD Connector - 1x Mic In - 1x Headphone Out - Infrared | |
| BIOS | IBM BIOS with Easy Setup | ||
| Pointing Device | TrackPoint | ||
Common Faults & Maintenance
Battery leaks
The 535 and 535E have a Varta NiMH battery inside that is extremely prone to leaking. Remove it ASAP from any one of these that you have. The 535X does not have this battery inside.
Other Notes
The LCD on any of the models in this series are prone to developing Vinegar Syndrome, especially so since these were only sold in Japan.
Gallery

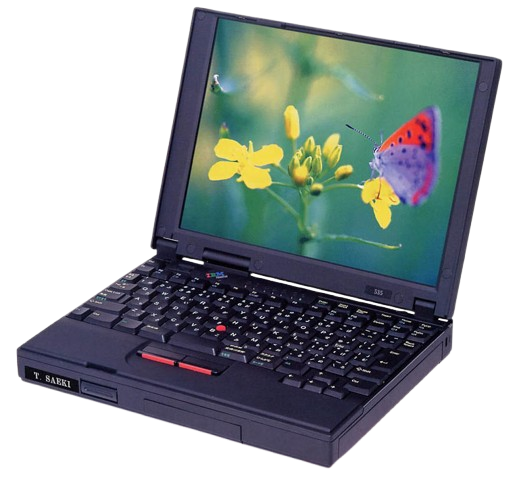

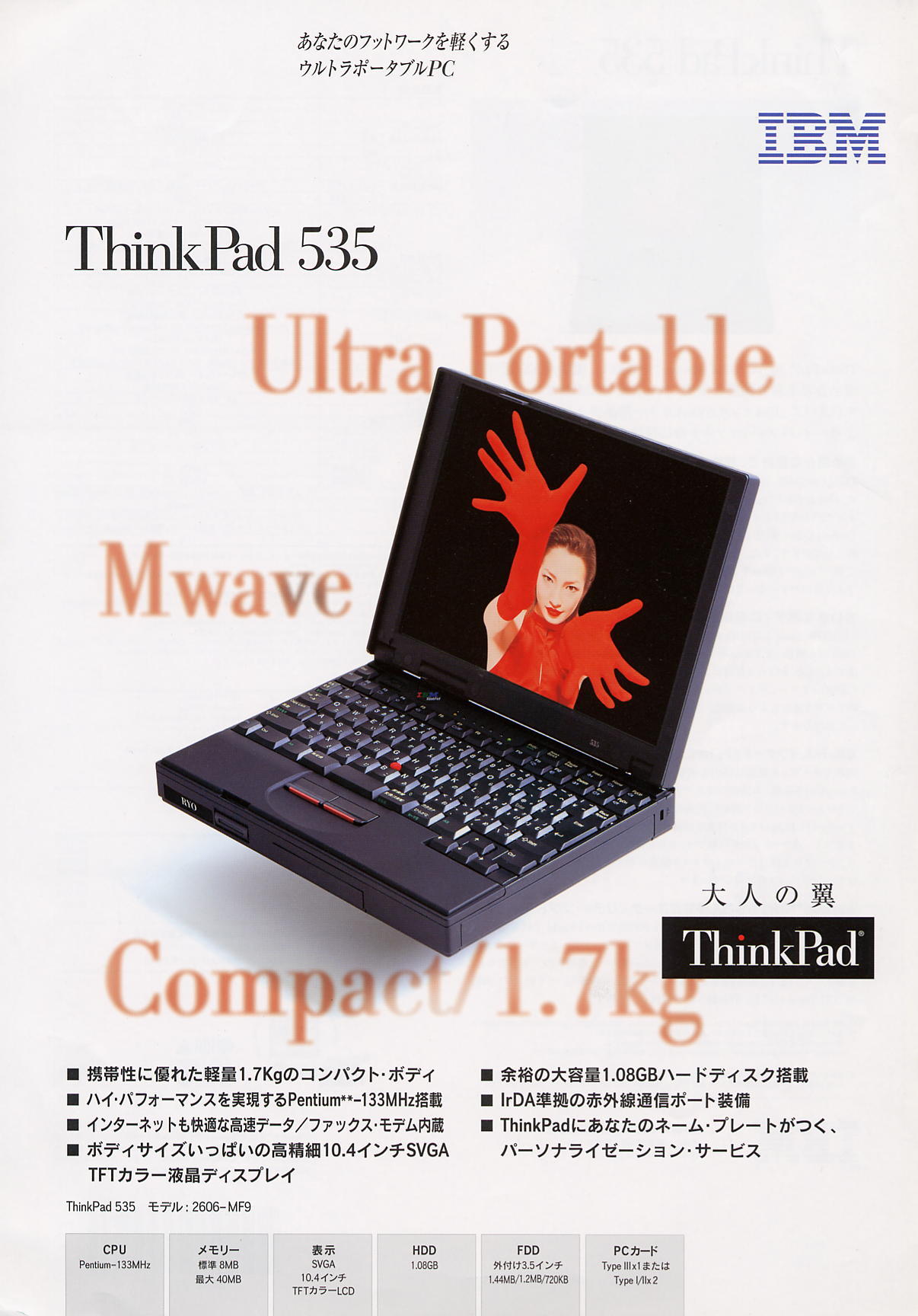

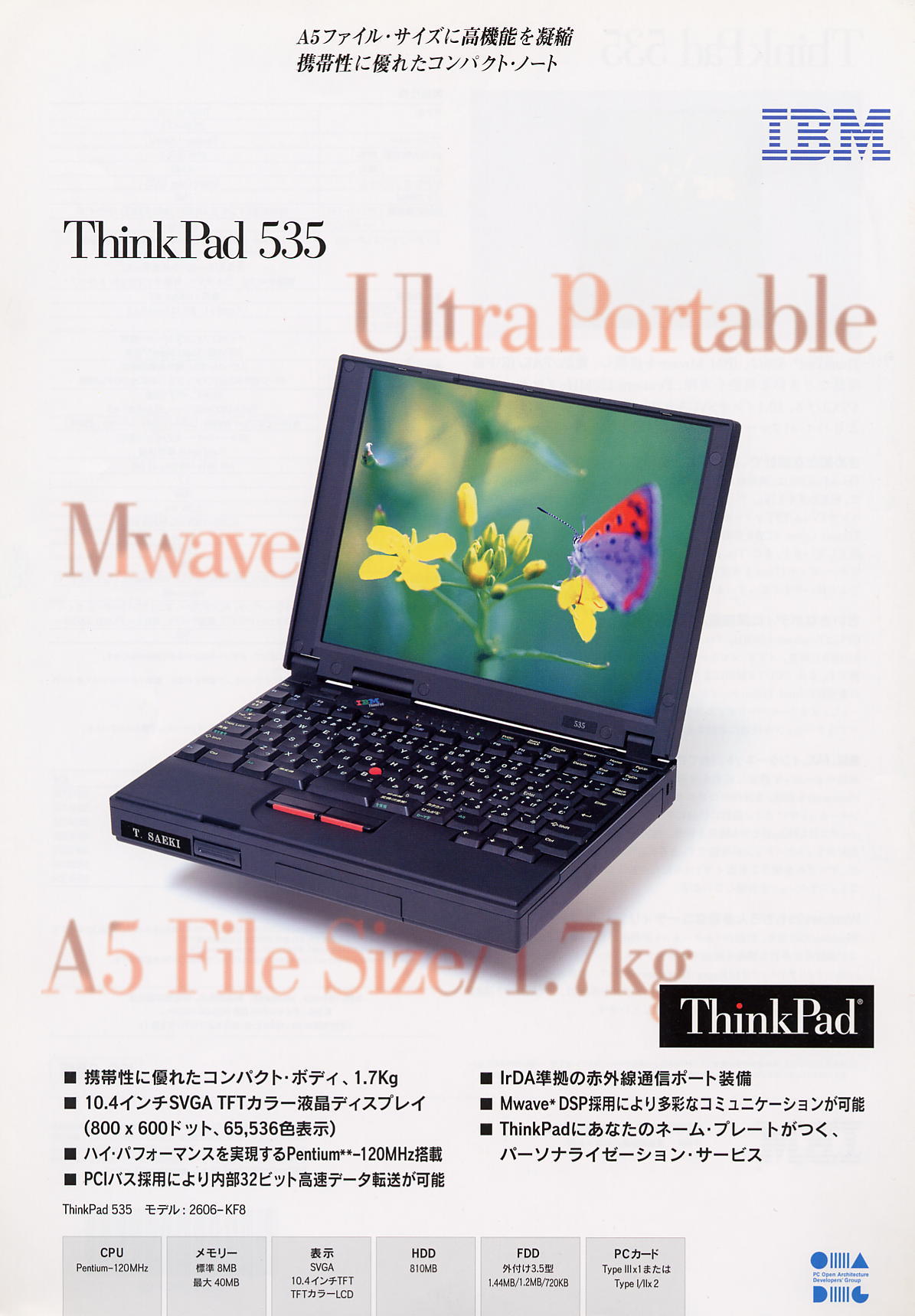

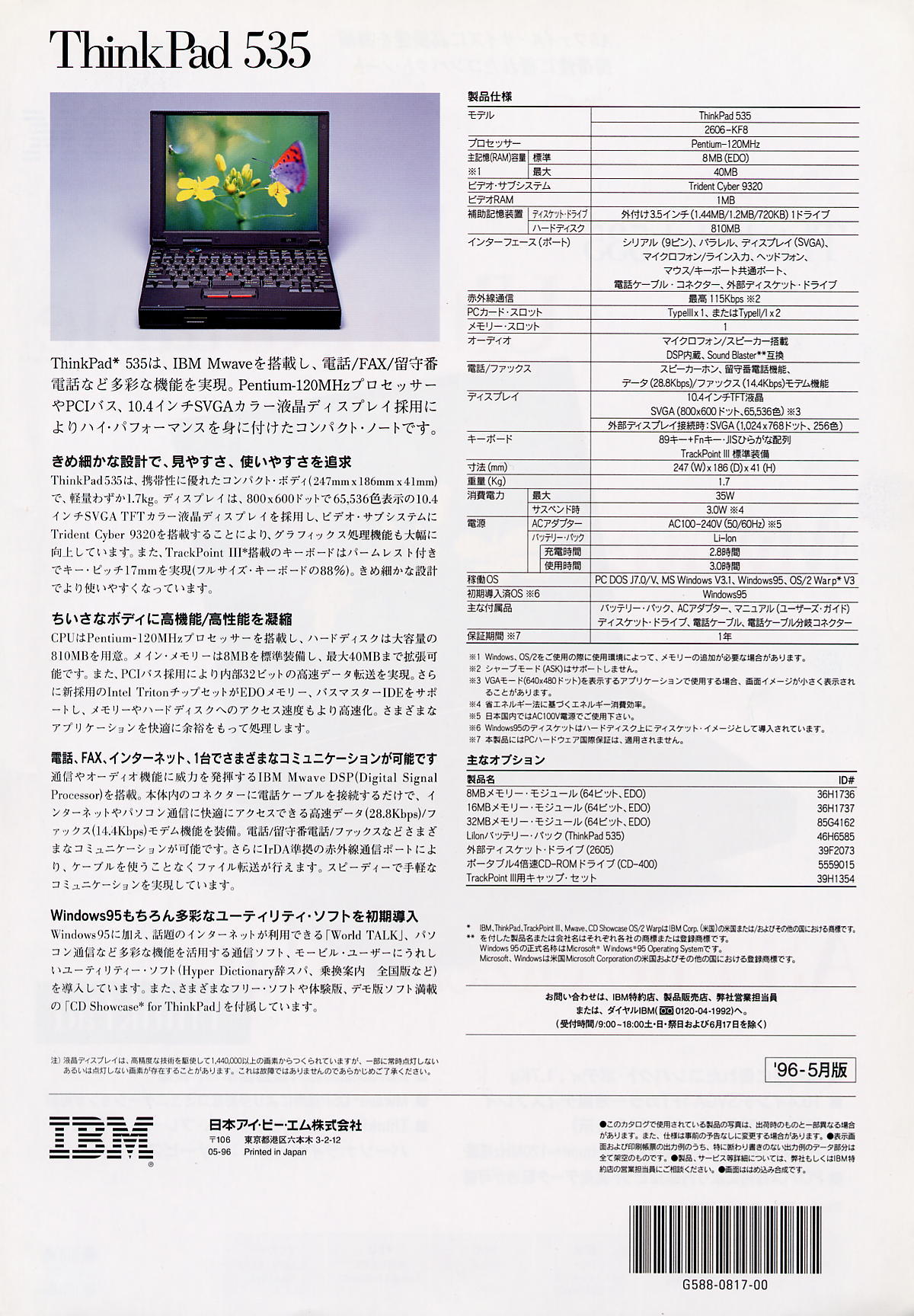

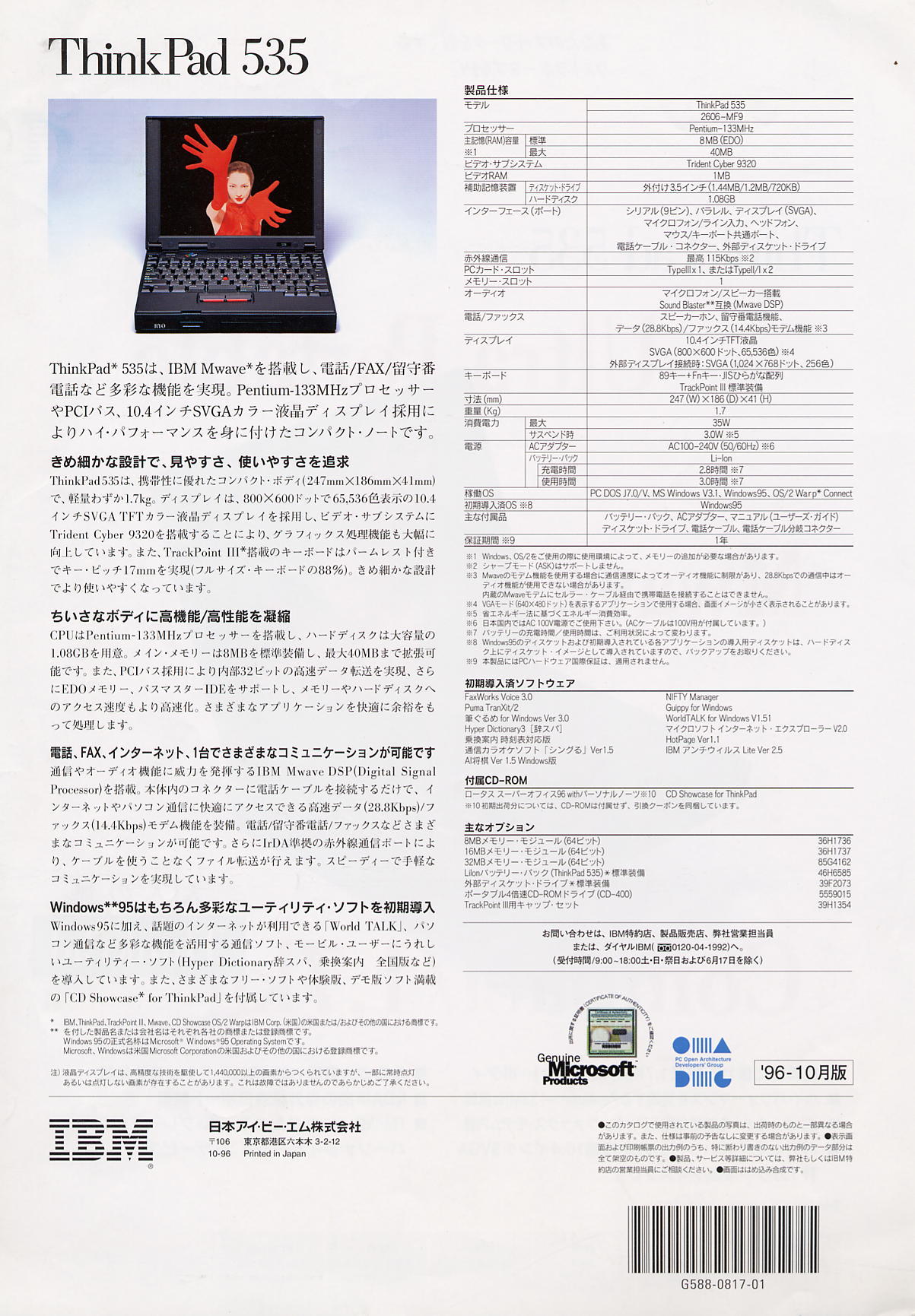

ThinkPad 535

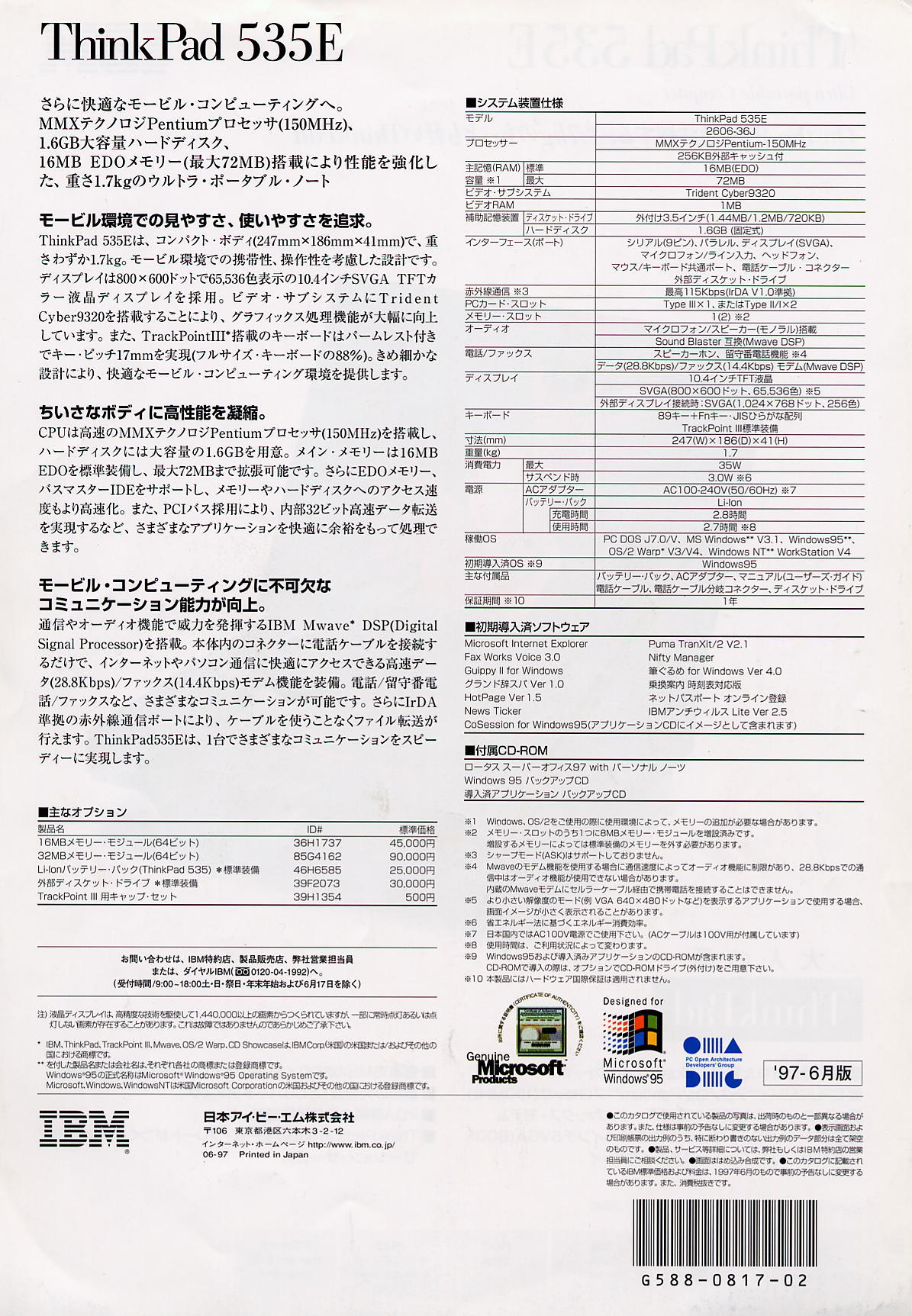

ThinkPad 535E

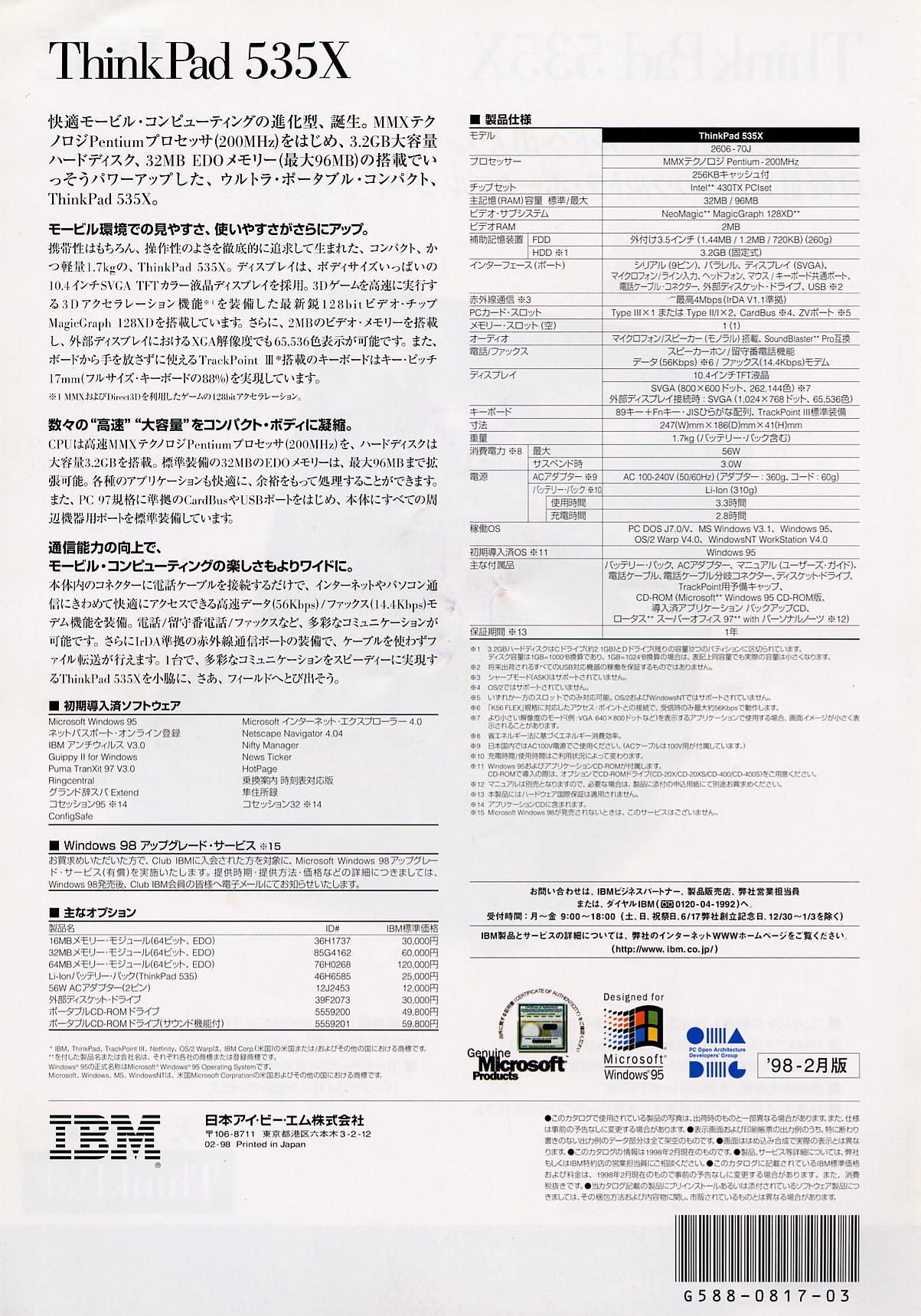

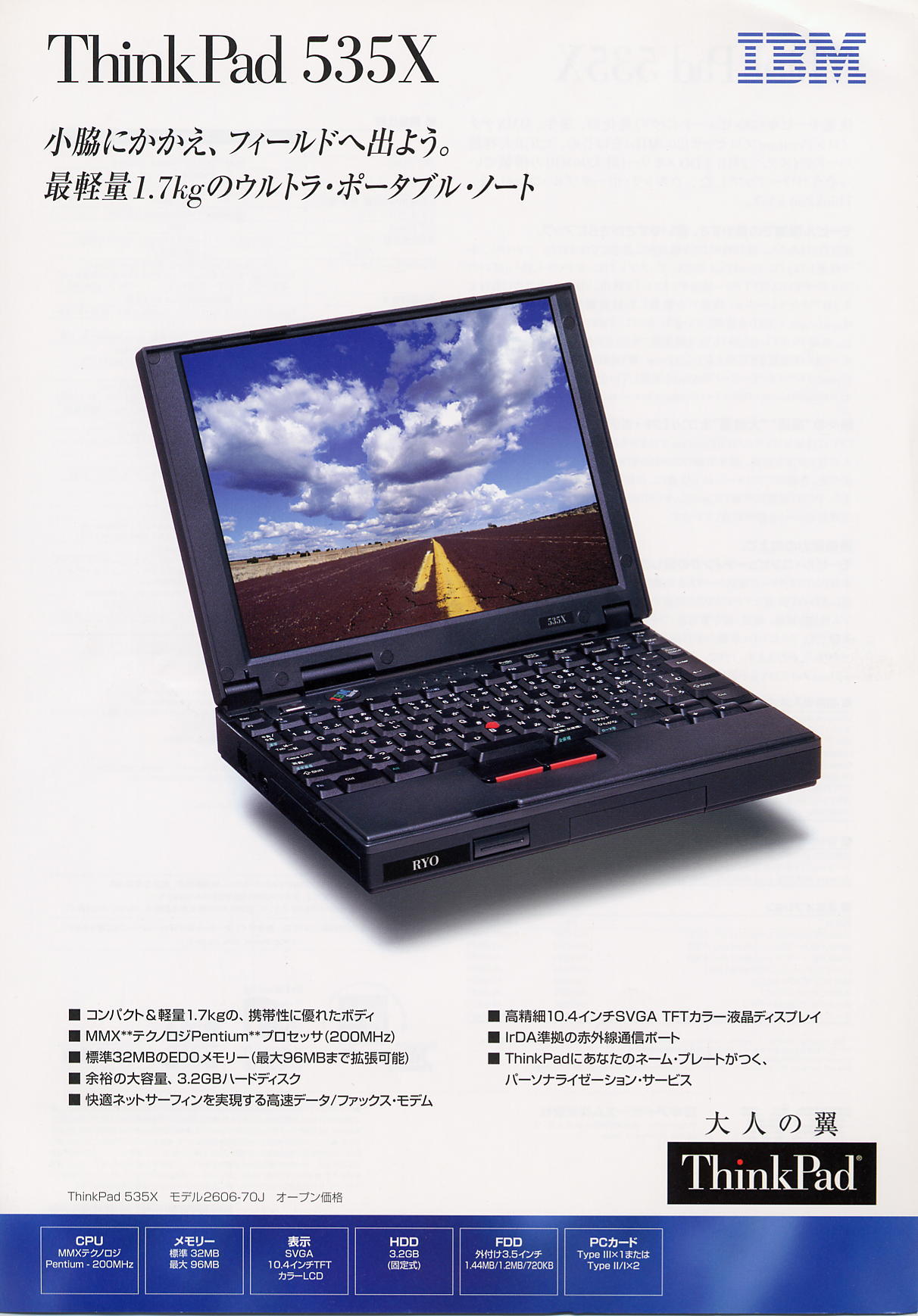

ThinkPad 535X
