HP Pavilion zv6000

The HP Pavilion zv6000 is an Socket 939-based laptop that was released in 2005. Some more information on this laptop is avaliable here.


Specifications

Spec Details
CPU CPU Type: Socket 939
- AMD Athlon 64 4000+ @2.4GHz
- AMD Athlon 64 3800+ @2.4GHz
- AMD Athlon 64 3500+ @2.2GHz
- AMD Athlon 64 3200+ @2.0GHz
- AMD Sempron 3200+ @1.8GHz
Chipset ATI RS480M
RAM Type: DDR, 2 slots
Standard: 256MB, 512MB, 1GB, or 2GB
Maximum: 2GB
Storage 2.5" IDE
Requires Adapter: No
Standard: 40, 60, 80, or 100GB
Display Options - 15.4" TFT LCD @1280x800
- 15.4" TFT "BrightView" LCD @1280x800
Graphics Chipset ATI Radeon Xpress 200M
VRAM: 128MB Dedicated or up to 128MB shared/SMA
Audio Conexant AC-Link
- Stereo Speakers
- Optional subwoofer
- Microphone
Main Battery Lithium Ion (8 or 12 cell)
CMOS Battery CR2032 Lithium
Power Supply Proprietary (18.5V, 6.5A)
- HP PPP017H AC Adapter
Media Drives One of the following optical drives:
- DVD/CD-RW Drive
- DVD+/-RW Double-Layer Drive
- DVD+/-RW Double-Layer Drive w/ LightScribe
PC Cards 1x PCMCIA/CardBus Slot (Type II)
Optional ExpressCard Slot
Networking - 56k Modem
- 10/100 Ethernet
- WiFi (Optional)
- Bluetooth (Optional)
Other I/O - 4x USB 2.0
- 1x IEEE1394/FireWire (Optional)
- 1x VGA Out
- 1x S-Video Out
- 1x SD/MMC/MS/MS Pro/xD/SM Card Reader (Optional)
- 1x HP Expansion Port 2
- 1x Mic In
- 1x Headphone Out
- Infrared (Optional)
BIOS Phoenix
Pointing Device Trackpad (Synaptics)

Resources

Link Details
HP Pavilion zv6000 Service Manual

Gallery

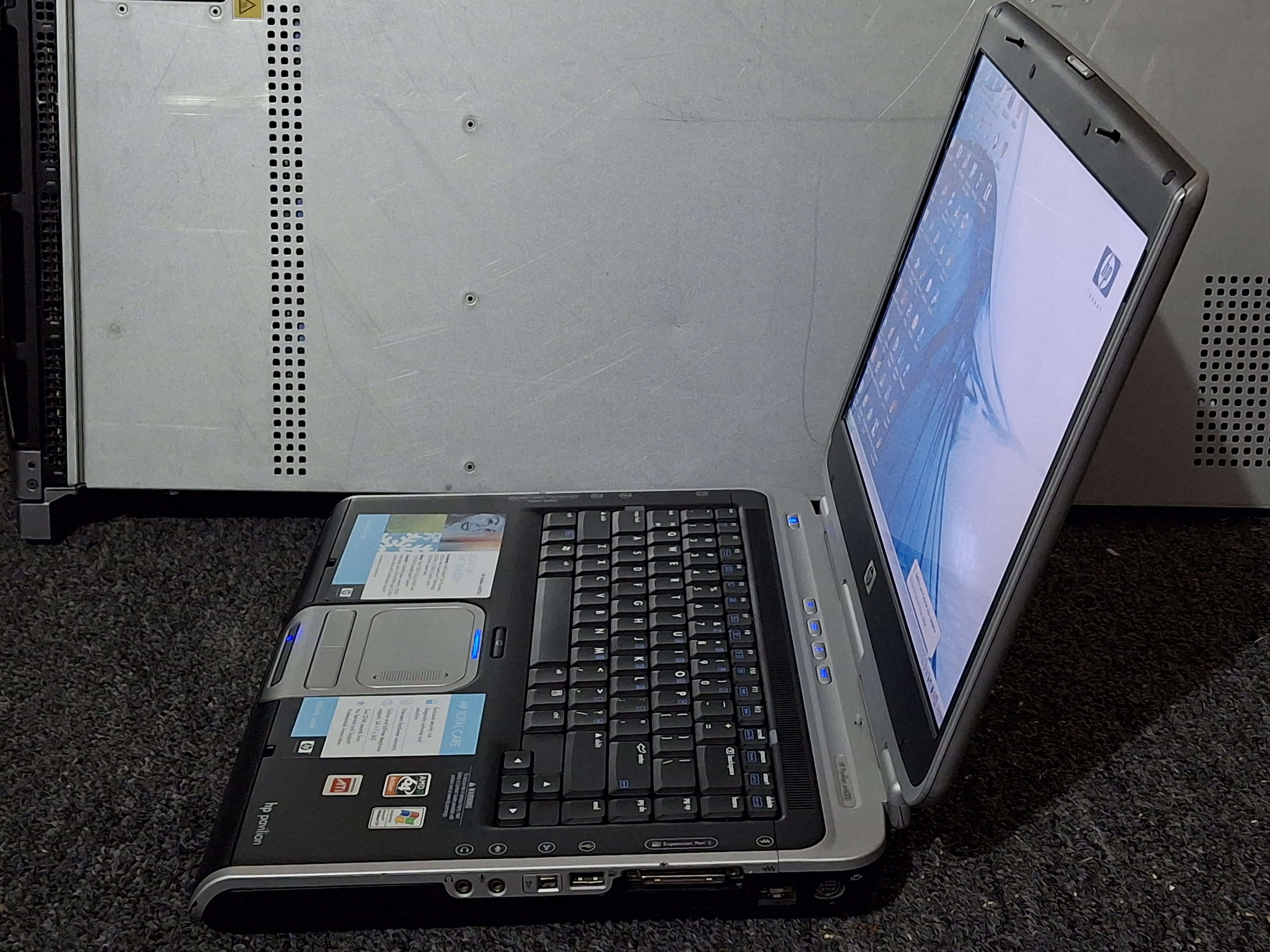

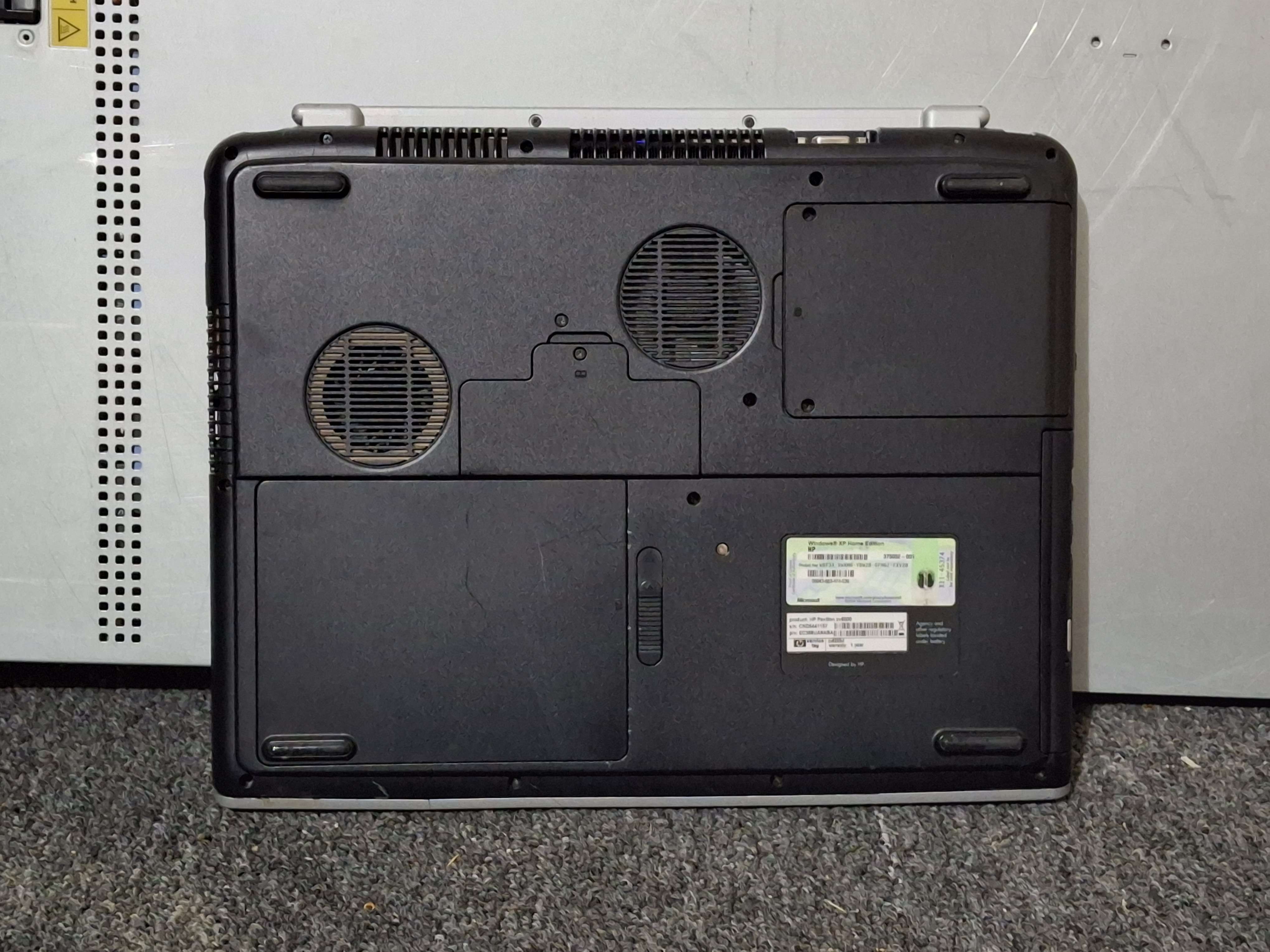

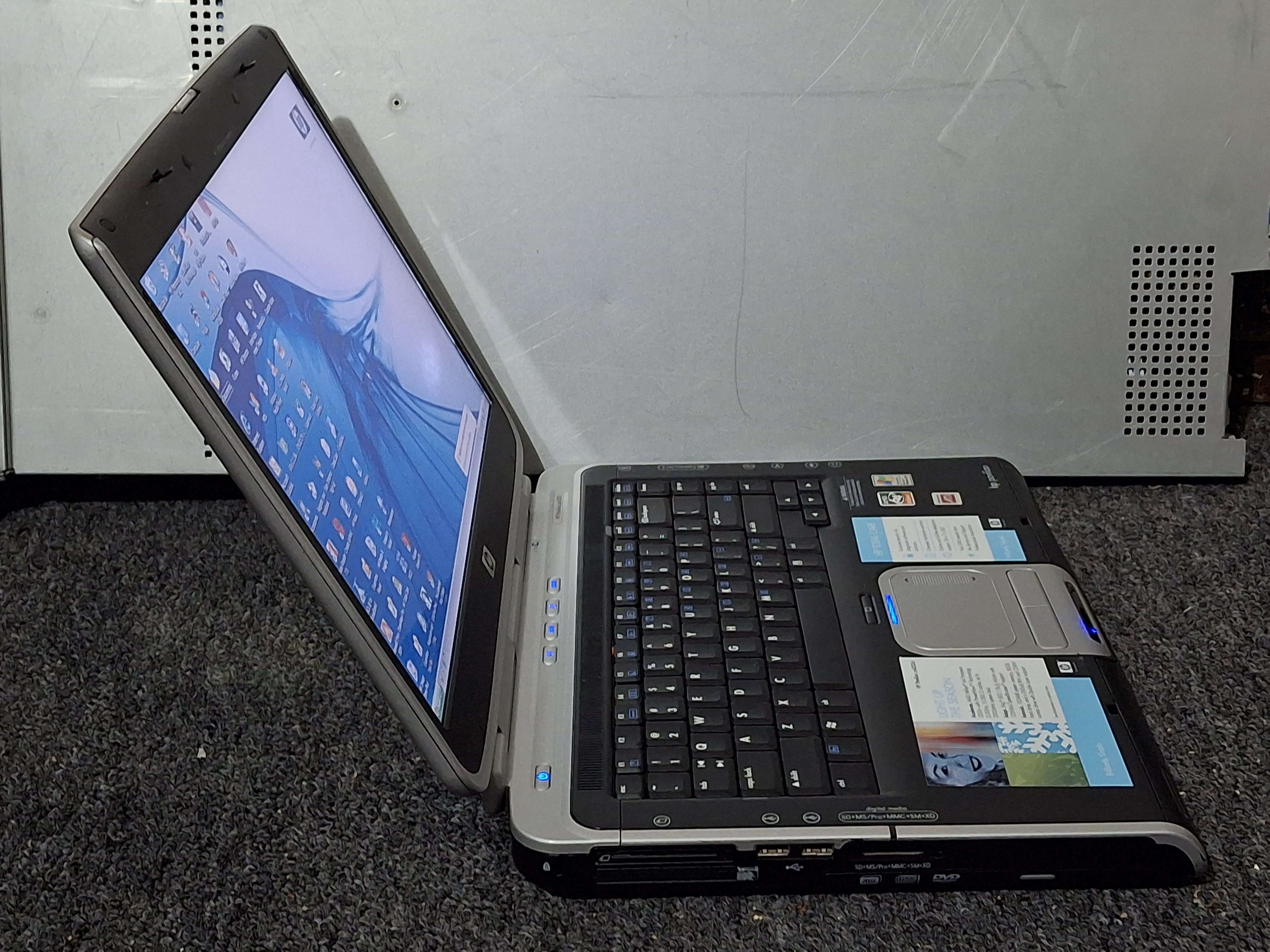

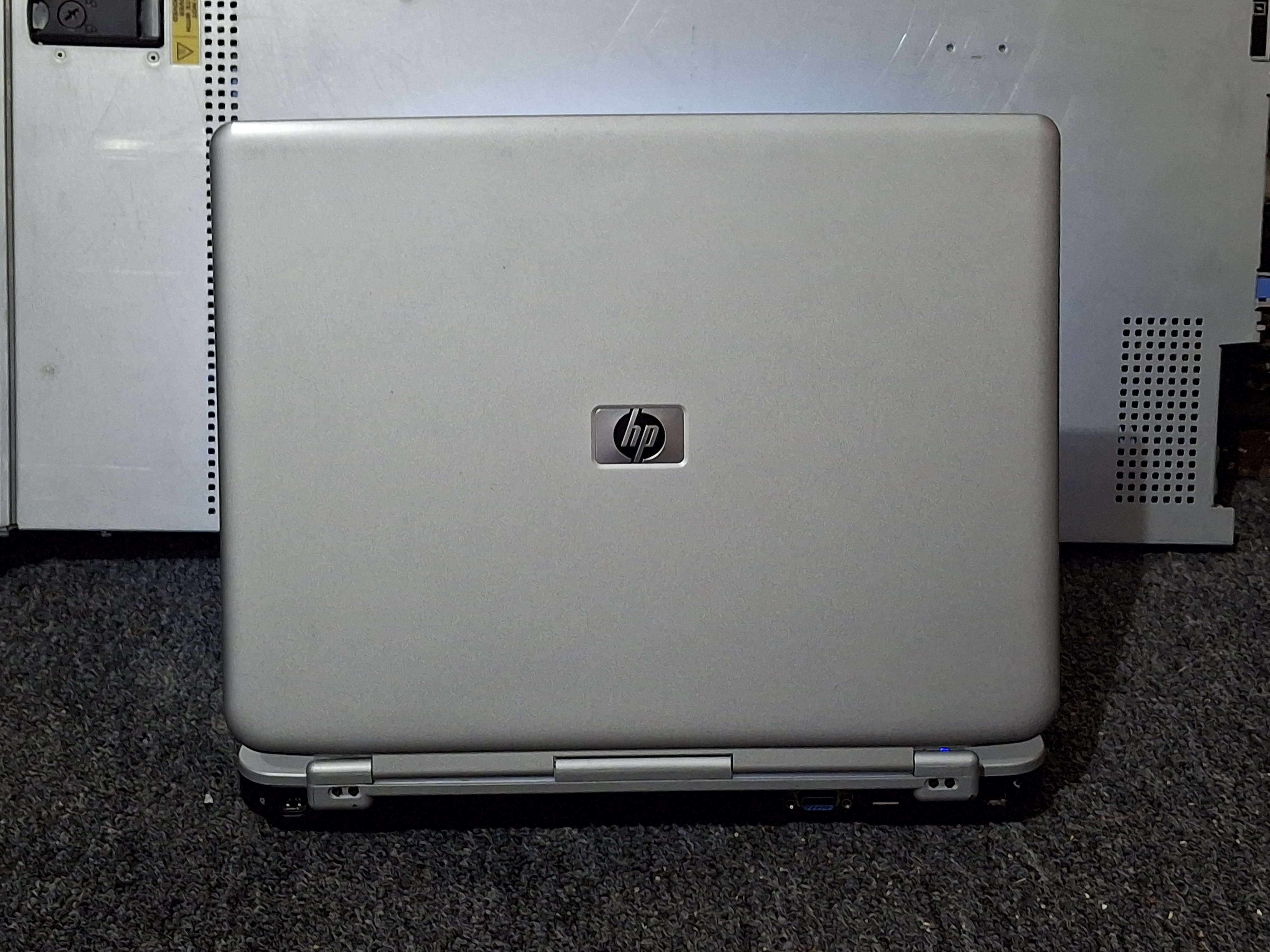

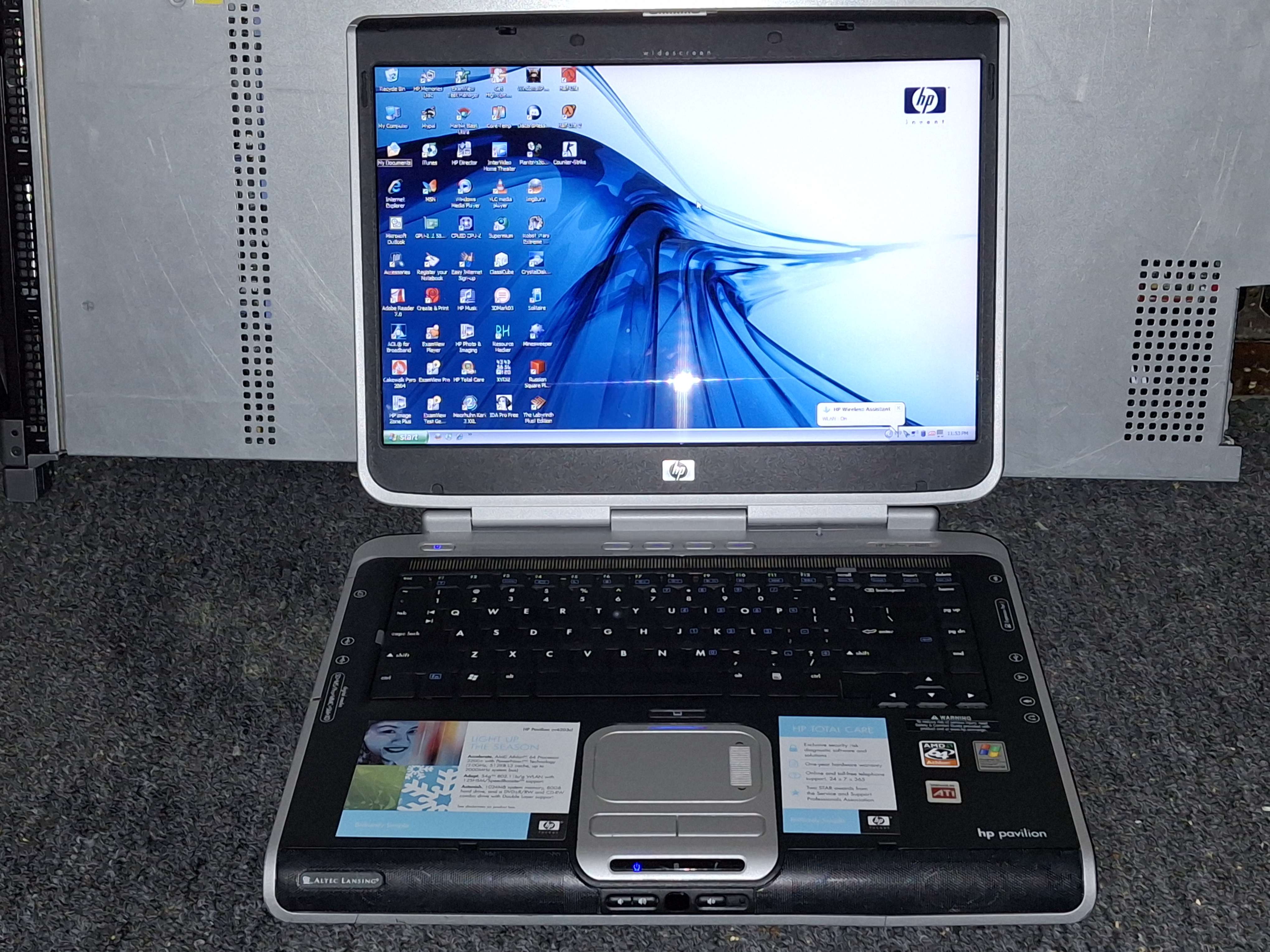

Photos from mari2.
