HP Pavilion zv5000

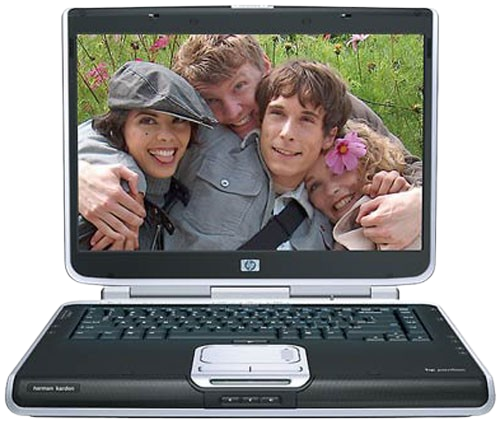

The HP Pavilion zv5000 is a 15-inch AMD or Intel-based multimedia laptop that was released in 2004.
Specifications
Due to lacking documentation, it is possible additional options were available which aren't listed here.
| Spec | Pavilion zv5000 (AMD) | Pavilion zv5000 (Intel) |
|---|---|---|
| CPU | CPU Type: Unknown - AMD Athlon 64 @1.8, 2.0, 2.2GHz - AMD Athlon XP-M @1.6GHz | CPU Type: Unknown Intel Pentium 4 @3.0, 3.06 |
| Chipset | Unknown | |
| RAM | Type: PC2700 DDR, 2 slots Standard: 512MB Maximum: 2GB | |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 40, 60, or 80GB | 2.5" IDE Requires Adapter: Unknown Standard: 40 or 60GB |
| Display Options | - 15.4" TFT LCD @1280x800 - 15.4" TFT BrightView LCD @1280x800 | |
| Graphics Chipset | One of the following: NVIDIA GeForce4 420 Go NVIDIA GeForce4 440 Go VRAM: 32MB (420 Go) or 64MB (440 Go) | One of the following: - ATI Radeon IGP Chipset Graphics - NVIDIA GeForce 4 MX440 VRAM: 64MB (NVIDIA) or 128MB shared/SMA (ATI) |
| Audio | Unknown 16-bit Sound - Stereo Speakers | |
| Main Battery | Lithium Ion (8-cell) | Lithium Ion (12-cell) |
| CMOS Battery | Unknown | |
| Power Supply | Unknown | |
| Media Drives | DVD/CD-RW Drive | One of the following optical drives: - DVD/CD-RW Drive - DVD+RW Drive |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) | |
| Networking | - 56k Modem - 10/100 Ethernet - WiFi - Bluetooth (Optional) | |
| Other I/O | - 1x Parallel - 1x VGA Out - 1x S-Video Out - 1x Dock Connector - 3x USB 2.0 - 1x IEEE1394/FireWire (Optional) - 1x SD/MMC/MS/MS Pro/SM Card Reader - 1x Mic In - 1x Headphone Out | |
| BIOS | Phoenix | |
| Pointing Device | Trackpad | |
Resources
| Link | Details |
|---|---|
 |
HP Pavilion zv5000 Service Manual |
