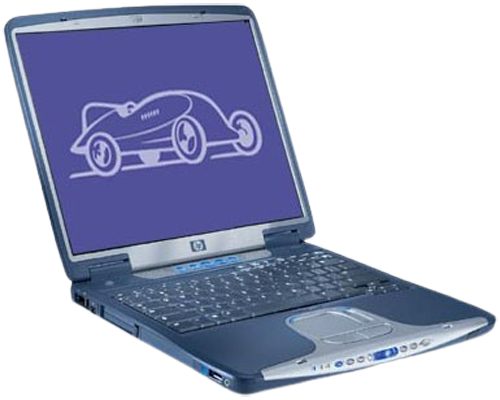

HP Pavilion zt1100 Series
The HP Pavilion zt1100 Series are Pentium III and 4-based laptops that were released in 2002.
Specifications
| Spec | Pavilion zt1100 Series (Pentium III) | Pavilion zt1100 Series (Pentium 4) |
|---|---|---|
| Release Date | 2002? | 2002 |
| CPU | CPU Type: Socket 479 (Tualatin) - Intel Mobile Pentium III "Tualatin" @1.06, 1.13, or 1.2GHz - Intel Mobile Celeron "Tualatin" @1.06, 1.13, or 1.2GHz | CPU Type: Socket 479 (Northwood-M) Intel Pentium 4M "Northwood" @1.5, 1.6, 1.7, or 1.8GHz |
| Chipset | VIA ProSavage PN133T | VIA ProSavage P4N266 |
| RAM | Type: PC133 SDRAM, 2 slots Standard: 128, 256, or 512MB Maximum: 1GB | Type: PC2100 DDR, 2 slots Standard: 256 or 512MB Maximum: 1GB |
| Storage | 2.5" IDE Requires Adapter: No Standard: 10, 20, or 40GB | 2.5" IDE Requires Adapter: No Standard: 20-40GB |
| Display Options | - 13.3" TFT LCD @1024x768 - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 - 15.0" TFT LCD @1400x1050 | - 14.1" TFT LCD @1024x768 - 15.0" TFT LCD @1024x768 - 15.0" TFT LCD @1400x1050 |
| Graphics Chipset | S3 Savage4 VRAM: Up to 32MB shared/SMA | |
| Audio | Realtek ALC201 - Stereo Speakers - Microphone | |
| Main Battery | Lithium Ion or NiMH | Lithium Ion (8-cell) |
| CMOS Battery | Unknown | |
| Power Supply | Barrel Jack | |
| Media Drives | One of the following optical drives: - 24X CD-ROM Drive 8X DVD-ROM Drive - DVD/CD-RW Drive | One of the following optical drives: - 8X DVD-ROM Drive - DVD/CD-RW Drive |
| PC Cards | 1x PCMCIA/CardBus Slot (Type III) - ENE 1410 Controller | |
| Networking | - 56k Modem - 10/100 Ethernet - WiFi (Optional) | |
| Other I/O | - 1x Parallel - 1x VGA Out - 1x Port Replicator Connector - 3x USB 1.x - 1x IEEE1394/FireWire (Optional) - 1x S-Video Out (Optional) - 1x Mic In - 1x Line Out - 1x Headphone Out - Infrared (Optional) | - 1x Parallel - 1x VGA Out - 1x Port Replicator Connector - 2x USB - 1x IEEE1394/FireWire - 1x S-Video Out - 1x Mic In - 1x Headphone Out - Infrared |
| BIOS | Unknown | |
| Pointing Device | Trackpad | |
Individual Model Specifications
It's possible there were additional models which aren't listed here. I'm missing info on most of them.
| Model | CPU | Standard RAM | Standard HDD | Display | Battery | Optical Drive | WiFi | FireWire | Market |
|---|---|---|---|---|---|---|---|---|---|
| Pavilion zt1114 | |||||||||
| Pavilion zt1120 | |||||||||
| Pavilion zt1121s | |||||||||
| Pavilion zt1122s | Celeron @1.13GHz | 256MB | 20GB | 14.1" XGA | Lithium Ion | DVD-ROM | No | No | UK |
| Pavilion zt1125 | |||||||||
| Pavilion zt1130 | |||||||||
| Pavilion zt1131s | |||||||||
| Pavilion zt1132s | Celeron @1.13GHz | 256MB | 20GB | 14.1" XGA | Lithium Ion | DVD/CD-RW | No | No | UK |
| Pavilion zt1135 | USA | ||||||||
| Pavilion zt1141 | |||||||||
| Pavilion zt1142 | |||||||||
| Pavilion zt1145 | USA | ||||||||
| Pavilion zt1150 | |||||||||
| Pavilion zt1151 | |||||||||
| Pavilion zt1152 | Pentium III @1.2GHz | 256MB | 20GB | 14.1" XGA | Lithium Ion | DVD/CD-RW | No | Yes | UK |
| Pavilion zt1155 | USA | ||||||||
| Pavilion zt1161 | |||||||||
| Pavilion zt1162 | Pentium III @1.2GHz | 256MB | 20GB | 15.0" XGA | Lithium Ion | DVD/CD-RW | No | Yes | UK |
| Pavilon zt1170 | |||||||||
| Pavilion zt1171 | |||||||||
| Pavilion zt1172 | Pentium 4M @1.4GHz | 256MB | 20GB | 14.1" XGA | Lithium Ion | DVD/CD-RW | No | Yes | UK |
| Pavilion zt1175 | USA | ||||||||
| Pavilion zt1180 | |||||||||
| Pavilion zt1182 | |||||||||
| Pavilion zt1185 | USA | ||||||||
| Pavilion zt1190 | |||||||||
| Pavilion zt1192 | Pentium 4M @1.5GHz | 256MB | 30GB | 15.0" XGA | Lithium Ion | DVD/CD-RW | No | Yes | UK |
| Pavilion zt1195 | USA | ||||||||
| Pavilion zt1201s | Celeron @1.33GHz | 128MB | 20GB | 14.1" XGA | Lithium Ion | DVD-ROM | No | No | UK |
| Pavilion zt1231s | Celeron @1.33GHz | 256MB | 20GB | 14.1" XGA | Lithium Ion | DVD/CD-RW | No | No | UK |
Resources
| Link | Details |
|---|---|
 |
HP Pavilion zt1100 Service Manual (Pentium III) |
|
HP Pavilion zt1100 Service Manual (Pentium 4) |
