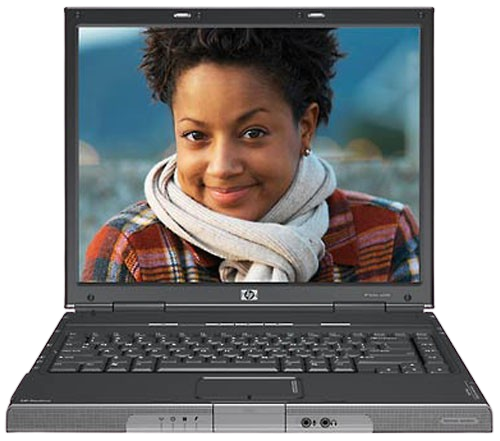

HP Pavilion ze2000
The HP Pavilion ze2000 is a 15-inch AMD or Intel-based budget laptop that was released in 2005. This model was sold under the Compaq brand as the Presario M2000.
Specifications
Due to lacking documentation, it is possible additional options were available which aren't listed here.
| Spec | Pavilion ze2000 (AMD) | Pavilion ze2000 (Intel) |
|---|---|---|
| CPU | CPU Type: Socket 754 - AMD Mobile Turion 64 ML-37 @2.0GHz - AMD Mobile Turion 64 ML-34 @1.8GHz - AMD Mobile Turion 64 ML-32 @1.8GHz - AMD Mobile Turion 64 ML-30 @1.6GHz - AMD Mobile Turion 64 ML-28 @1.6GHz - AMD Mobile Sempron 3300+ @2.0GHz - AMD Mobile Sempron 3000+ @1.8GHz - AMD Mobile Sempron 2800+ @1.6GHz | CPU Type: Socket 479 (Banias/Dothan) - Intel Pentium M @1.5, 1.6, 1.7, or 1.8GHz - Intel Celeron M @1.3 or 1.4GHz |
| Chipset | ATI Radeon XPRESS 200M | Intel 855 Series or Intel 915GM |
| RAM | Type: 400MHz DDR2 Standard: 256MB Maximum: 2GB | |
| Storage | 2.5" IDE Requires Adapter: Yes Standard: 40, 60, or 80GB | |
| Display Options | 15.0" TFT LCD @1024x768 | |
| Graphics Chipset | ATI Radeon XPRESS 200M VRAM: 32MB shared/SMA | One of the following: Intel Extreme Graphics 2 Intel GMA 900 VRAM: Shared/SMA |
| Audio | Unknown - Stereo Speakers - Microphone | |
| Main Battery | Lithium Ion (6 or 12 cell) | |
| CMOS Battery | ML1220 Lithium (Socketed) | Unknown |
| Power Supply | Barrel Jack | |
| Media Drives | One of the following optical drives: - 8X DVD-ROM Drive - DVD/CD-RW Drive - DVD+/-RW/R Drive | |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) | |
| Networking | - 56k Modem - 10/100 Ethernet - WiFi (Optional?) | |
| Other I/O | - 2 or 3x USB 2.0 - 1x IEEE1394/FireWire - 1x VGA Out - 1x S-Video Out (Optional) - 1x Expansion Port 2 (Optional) - 1x 6-in-1 Digital Media Reader (Optional) - 1x 6-in-1 Memory Card Reader (Optional) - 1x Mic In - 1x Line Out | - 2 or 3x USB 2.0 - 1x IEEE1394/FireWire - 1x VGA Out - 1x S-Video Out (Optional) - 1x Expansion Port 2 - 1x 6-in-1 Digital Media Reader (Optional) - 1x 6-in-1 Memory Card Reader (Optional) - 1x Mic In - 1x Line Out |
| BIOS | Unknown | |
| Pointing Device | Trackpad | |
Resources
| Link | Details |
|---|---|
 |
HP Pavilion ze2000 (Intel) Service Manual |
|
HP Pavilion ze2000 (AMD) Service Manual |
