HP OmniBook XE2
The OmniBook XE2 is a laptop that was released in 1999, and then updated in 2000 with newer processors and a couple other minor changes. The original 1999 revision used Pentium II and PII-based Celeron processors, while the 2000 revision shipped with Pentium III, PIII-based Celeron, or AMD K6-2 processors.
The XE2 was the entry-level laptop in the OmniBook lineup. It replaced the OmniBook XE, which shared a pretty much identical design and mostly identical specs.
Specifications
| Spec | OmniBook XE2 | OmniBook XE2 (2000) |
|---|---|---|
| Release Date | 1999 | February 2000 |
| CPU | CPU Type: Unknown - Intel Mobile Pentium II @300, 333, 366, or 400MHz - Intel Mobile Celeron @300, 333, 433, or 466MHz | CPU Type: Socket 495 (uPGA-2) or Socket 7 - Intel Mobile Pentium III "Coppermine" @500 or 600MHz - Intel Mobile Celeron "Coppermine" @500 or 550MHz - AMD K6-2 @550MHz |
| Chipset | Unknown | |
| RAM | Type: SDRAM, 2 slots Standard: 32, 64, or 128MB Maximum: 256MB | Type: SDRAM, 2 slots Standard: 32 or 64MB Maximum: 256MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 3.82 or 5.83GB | 2.5" IDE Requires Adapter: Unknown Standard: 5 or 10GB |

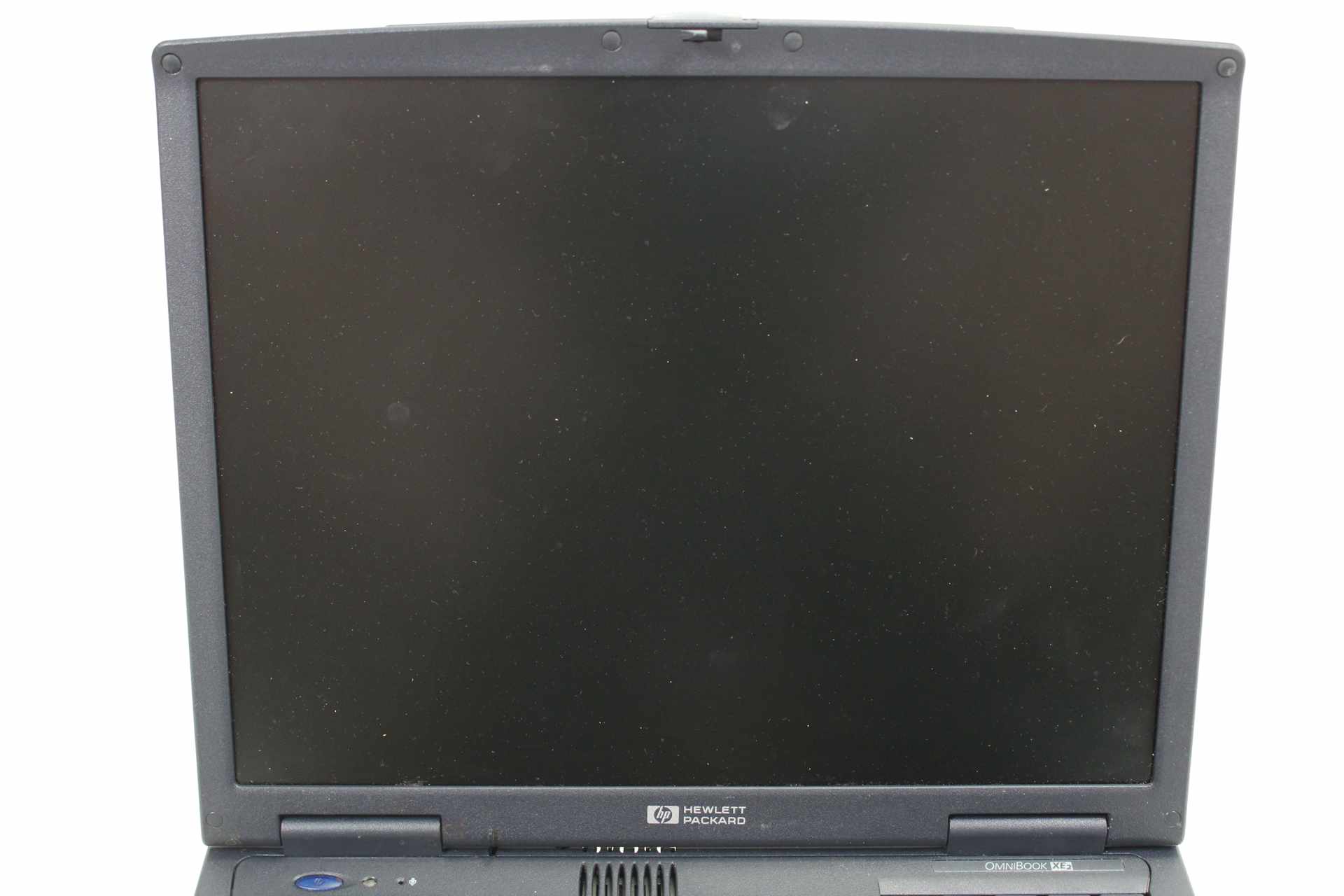

| Display Options | - 12.1" TFT LCD @800x600 - 13.3" TFT LCD @1024x768 - 14.1" TFT LCD @1024x768 | - 12.1" HPA/Passive Matrix LCD @800x600 - 12.1" Active Matrix LCD @800x600 - 13.0" HPA/Passive Matrix LCD @800x600 - 14.1" Active Matrix LCD @1024x768 |
| Graphics Chipset | Silicon Motion LynxE (SM811) VRAM: 2MB | Silicon Motion LynxEM4 (SM710/SM711) VRAM: 4MB |
| Audio | ESS Maestro-2E - Stereo Speakers - Microphone | Unknown SB Pro Compatible - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (8 cell) | NiMH or Lithium Ion |
| CMOS Battery | ML1220 Lithium (Socketed) | |
| Power Supply | Barrel Jack | |

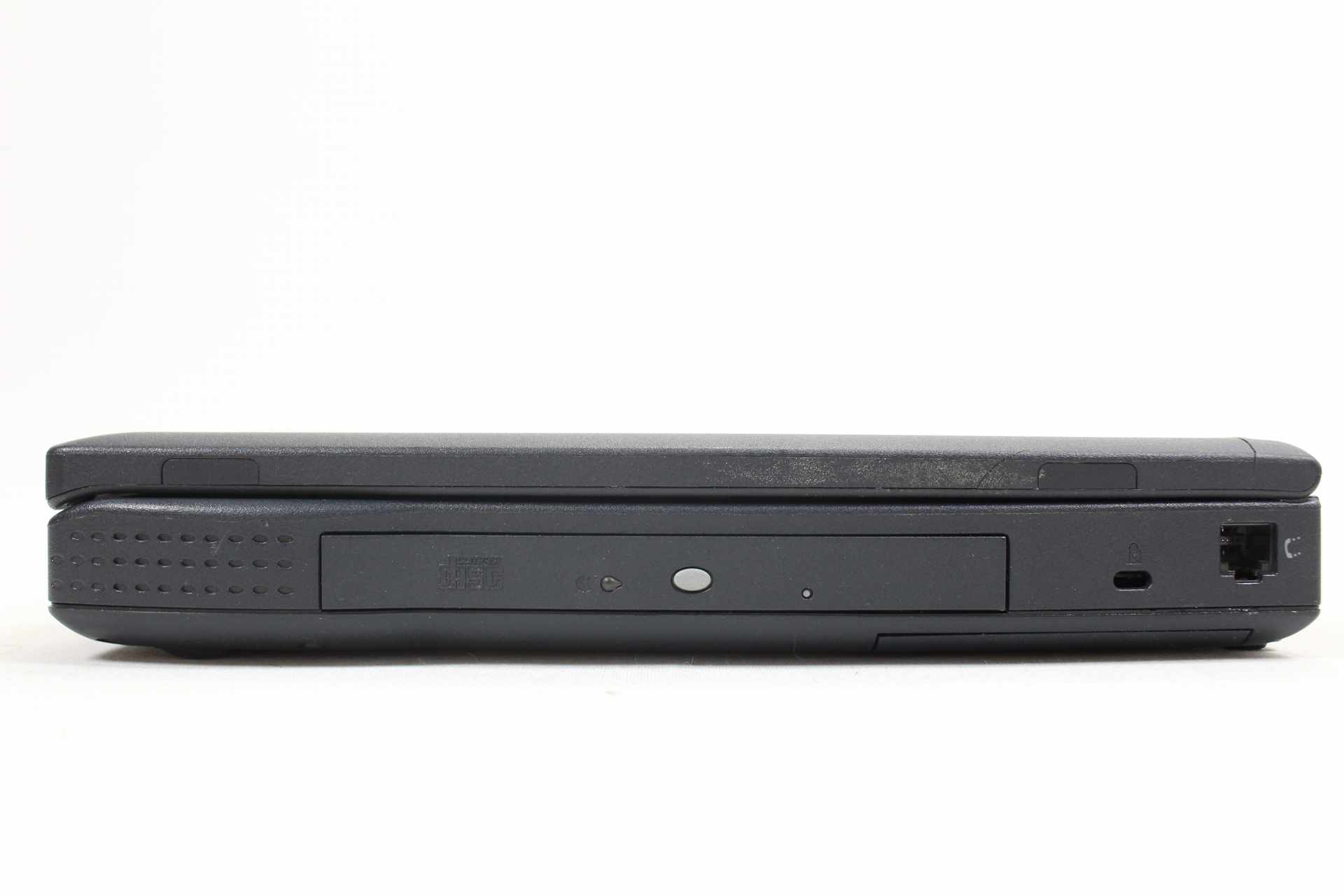

| Media Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive - 24X CD-ROM | 3 Spindle - 3.5" 1.44MB Floppy Drive - 24X CD-ROM Drive or 6X DVD-ROM Drive |
| PC Cards | 2x PCMCIA/CardBus Slots - ZoomVideo Support - TI PCI1225 Controller | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support (1 slot) |
| Networking | 56k Modem | |

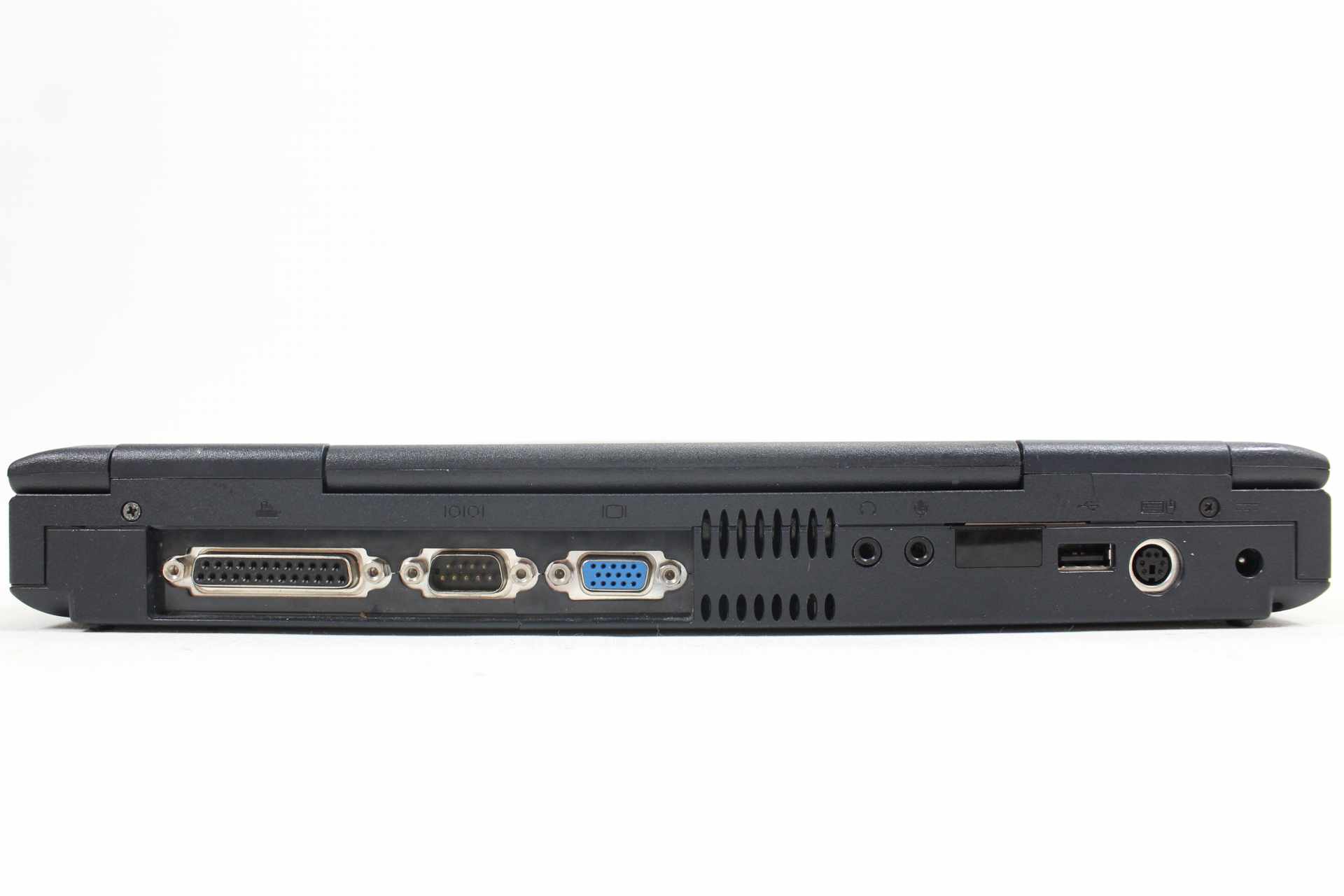

| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Port Replicator Connector - 1x USB 1.x - 1x Headphone Out - 1x Mic In - Infrared | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Port Replicator Connector - 1x USB 1.x - 1x Mic In - 1x Headphone Out - Infrared |
| BIOS | Phoenix | Unknown |

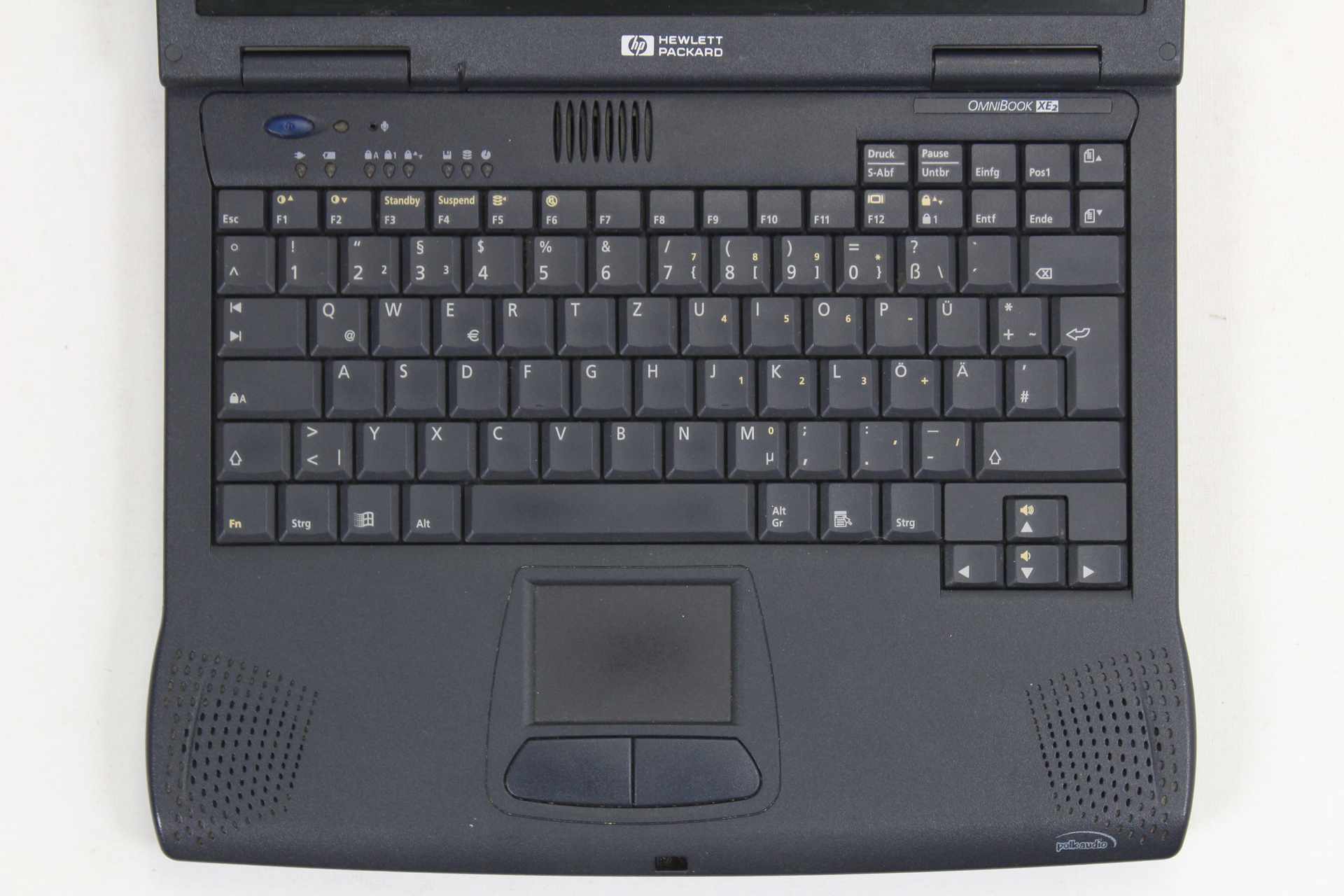

| Pointing Device | Trackpad | |
Resources
| Link | Details |
|---|---|
 |
HP OmniBook XE2 (Unknown Revision) Recovery Media |
|
HP OmniBook XE2 (Unknown Revision #2) Recovery Media |
|
HP OmniBook XE2 (AMD) Recovery Media |
 |
HP OmniBook XE2 Service Manual |
Common Faults & Maintenance
The OmniBook XE2's plastics have gone extremely brittle, which results in hinge failure as the plastic case cracks around the hinges. Epoxy will be required to reinforce these areas.

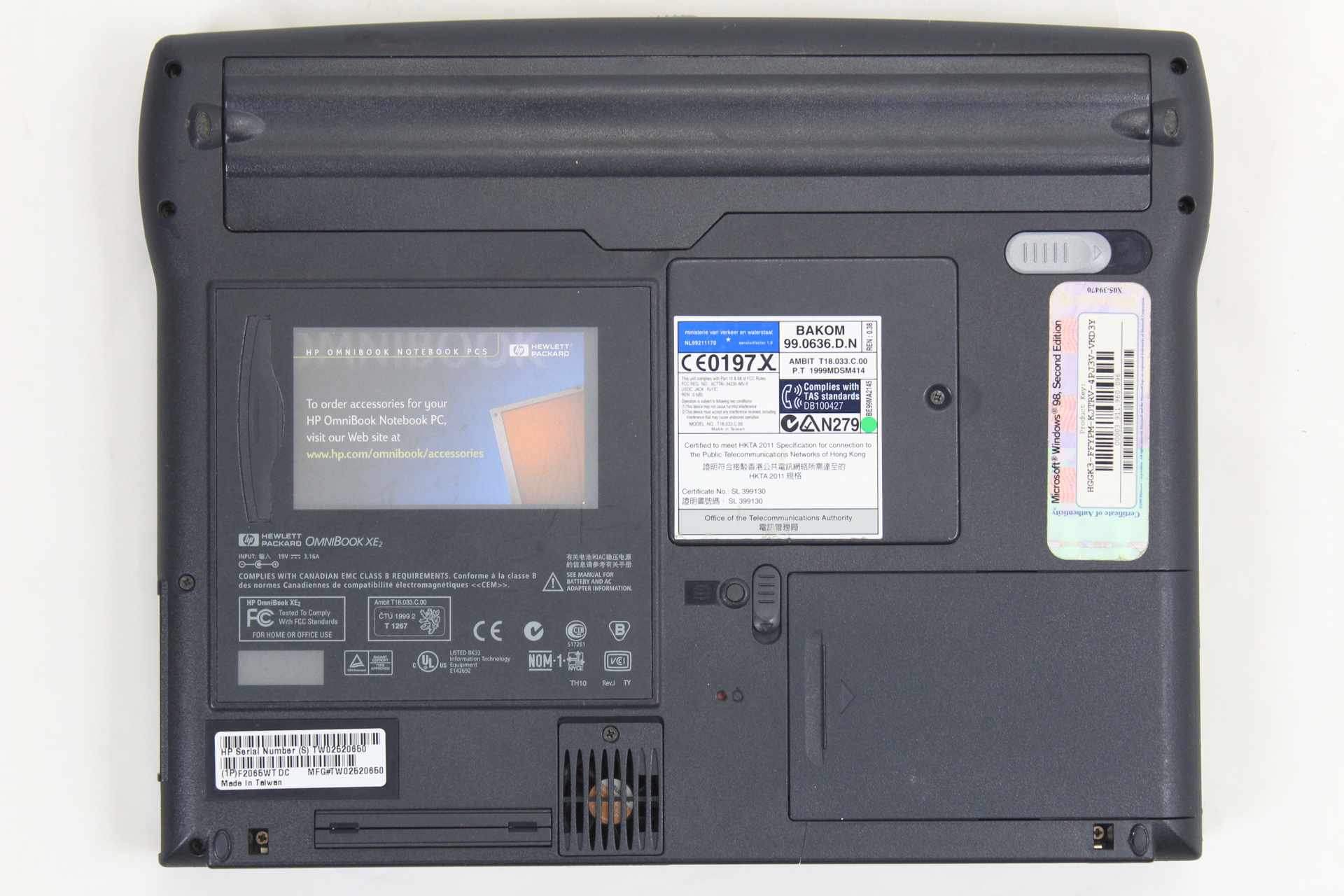

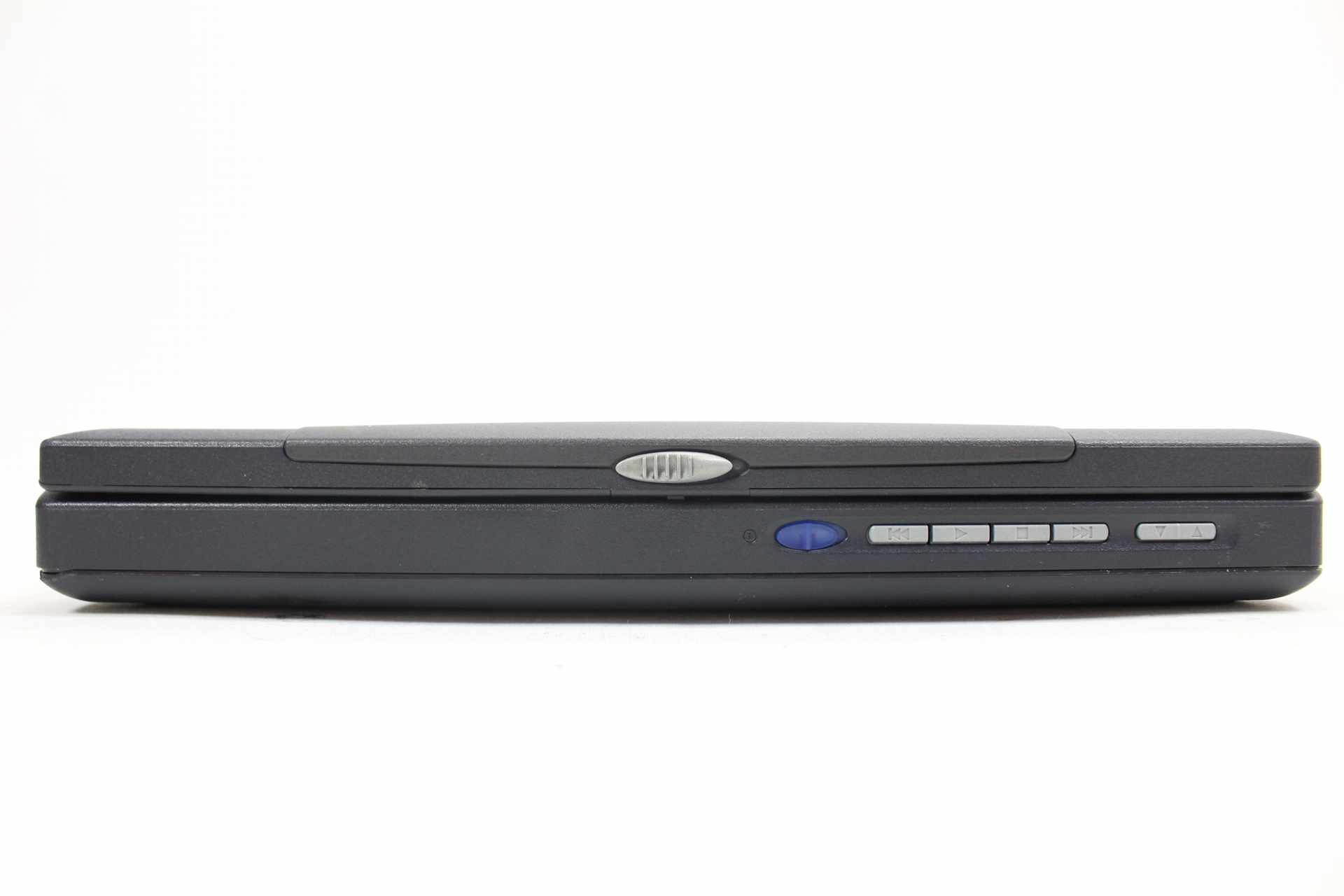

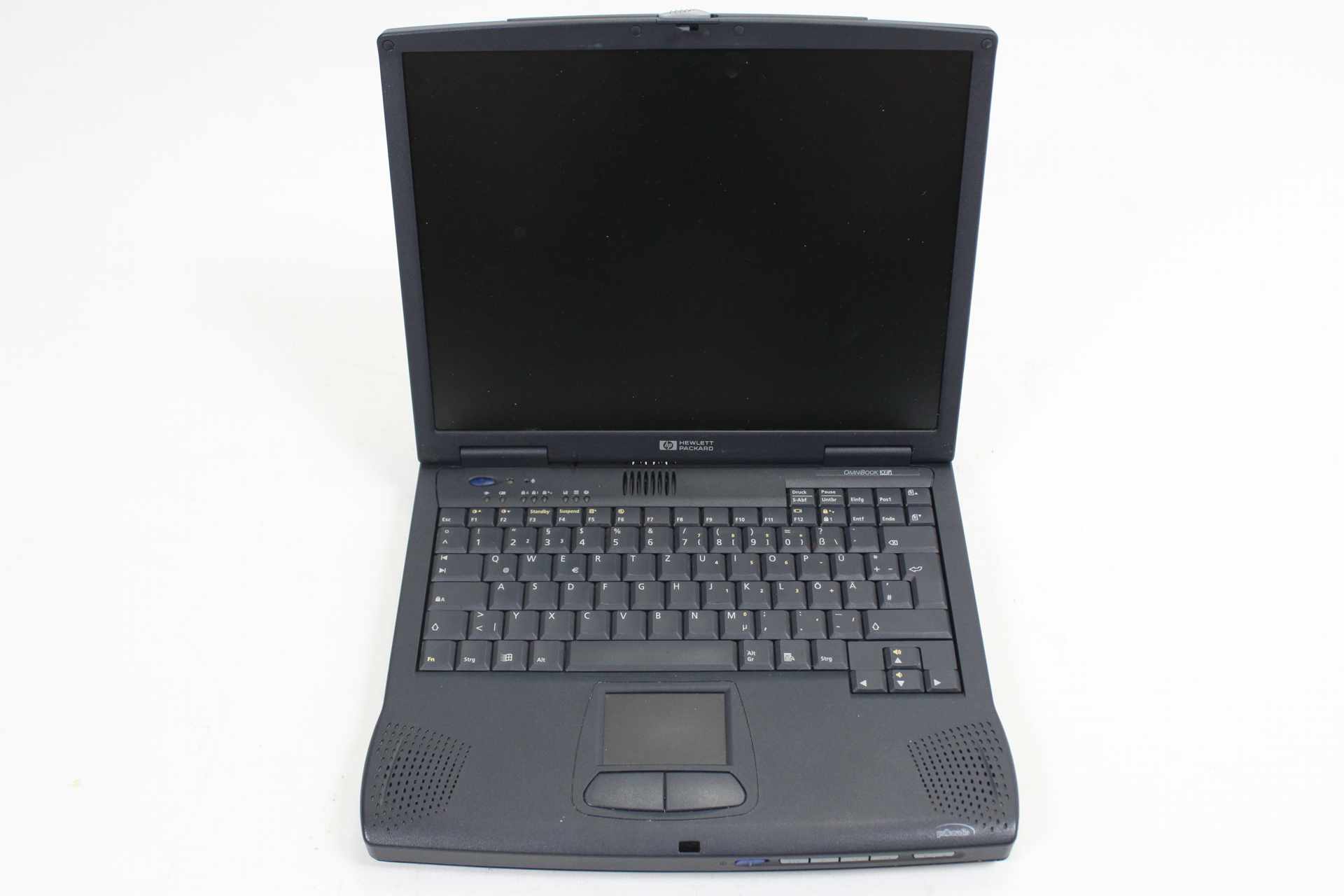

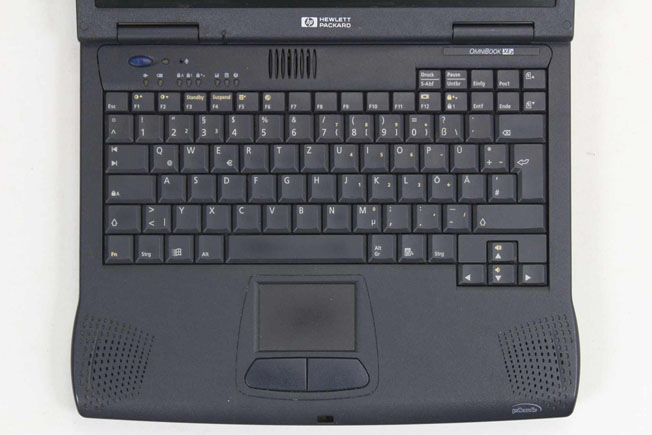

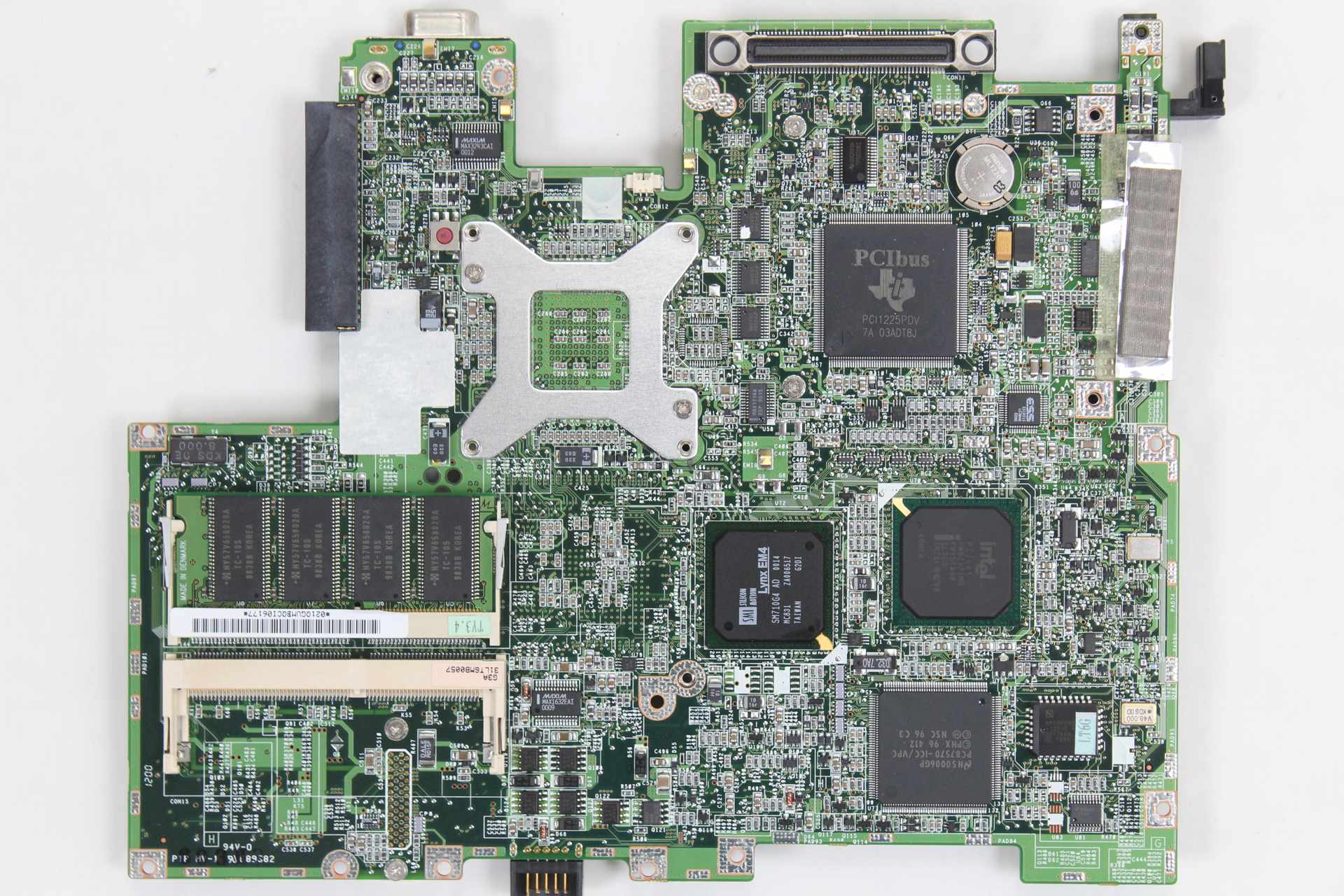

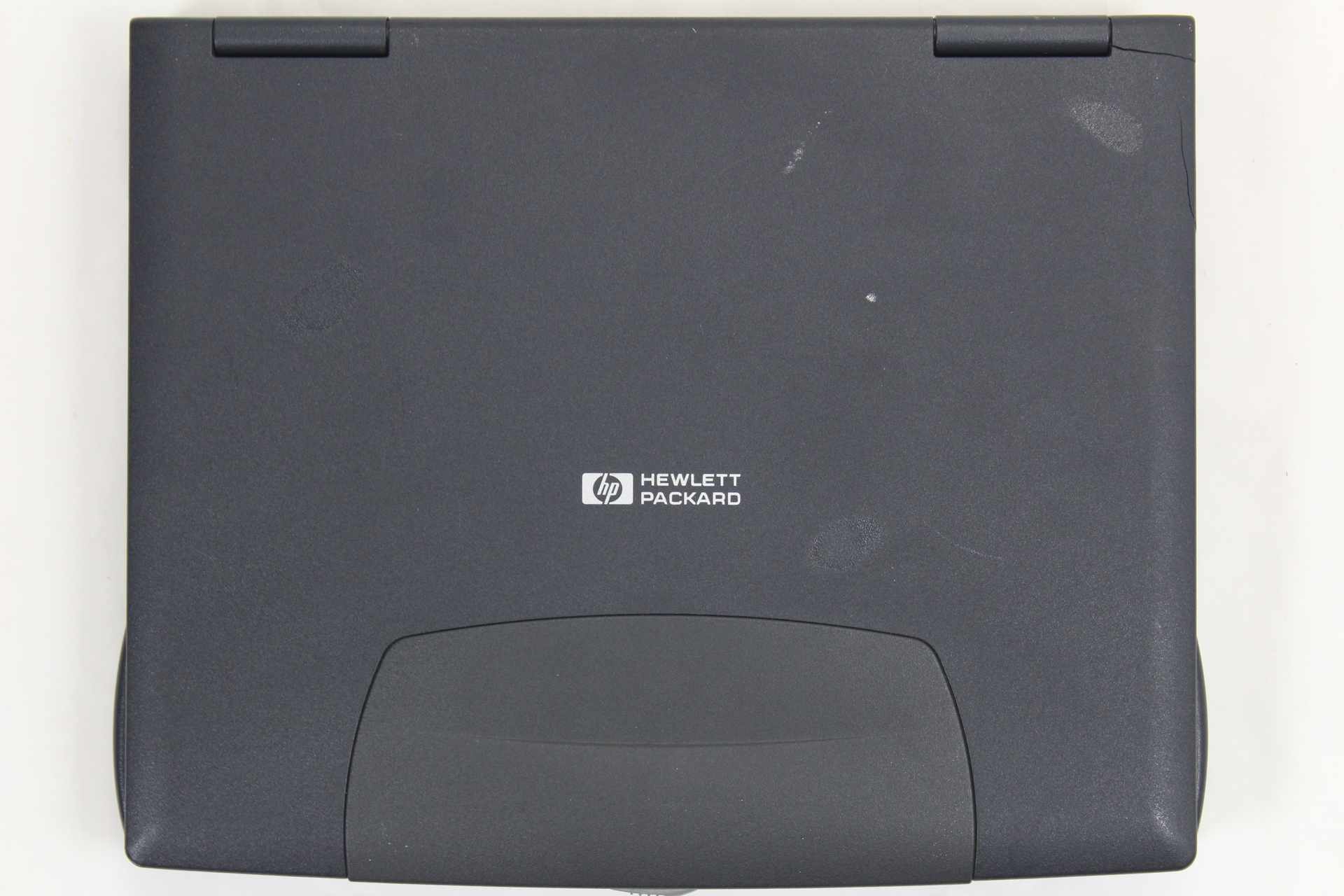

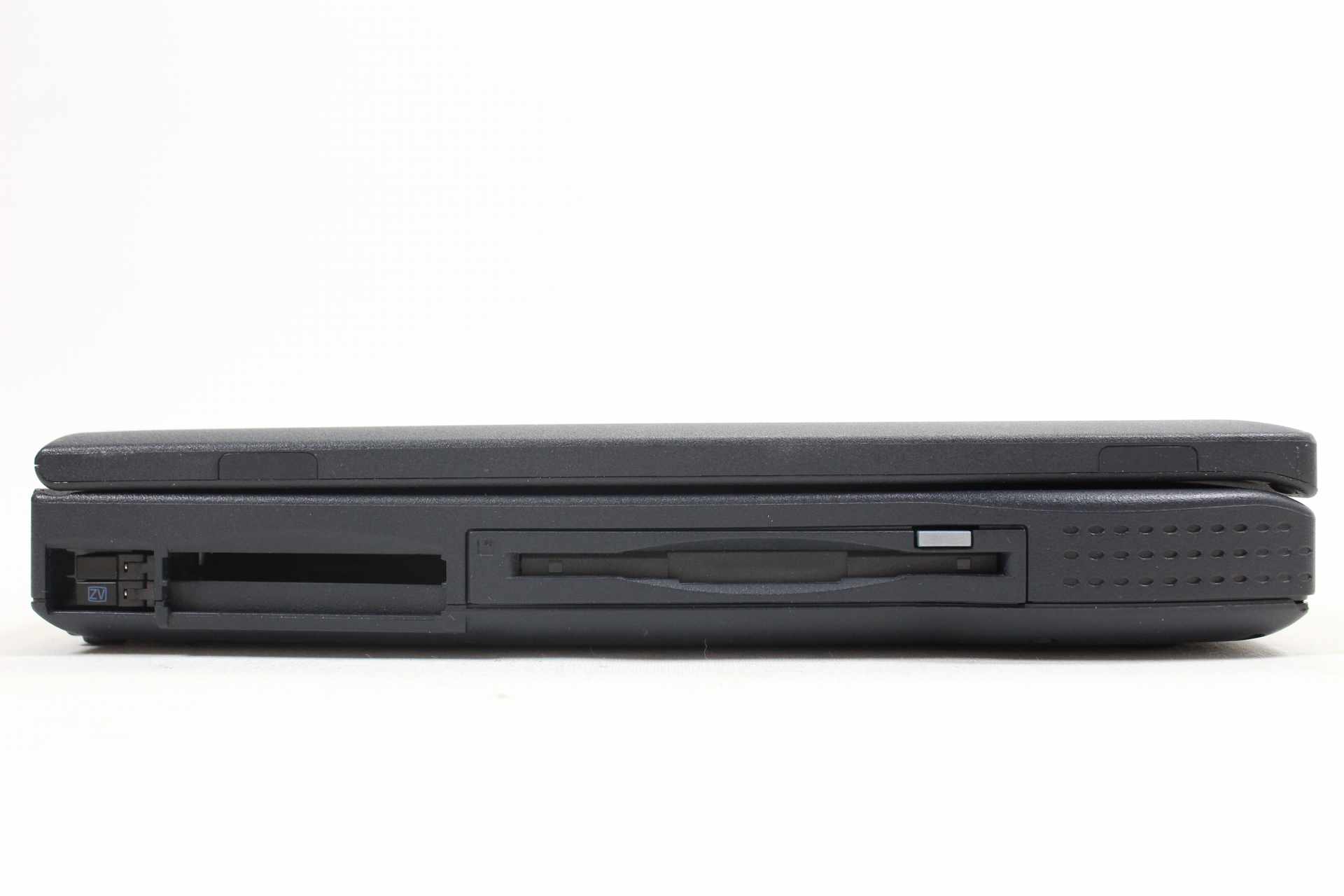

Gallery
Photos from Clous. Used with permission.
