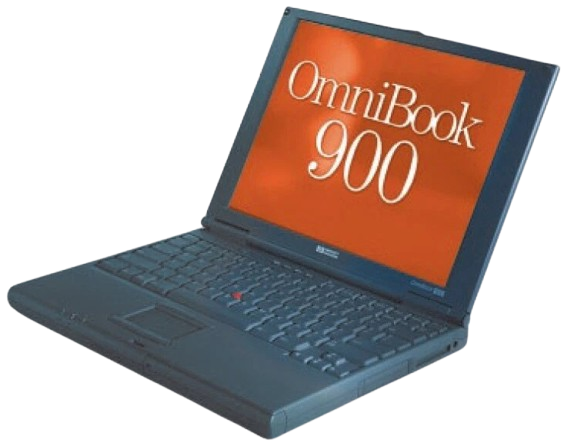

HP OmniBook 900
The OmniBook 900 is a Pentium II/III-based laptop that was released in January 1999. An updated revision with ATI graphics and some other changes known as the OmniBook 900B was released a little while later.
You can quickly identify if a laptop is the B variant based on the OmniBook name plate on the lid. If it is gray, it is an OmniBook 900. If it is silver, than it is an OmniBook 900B.
Specifications
| Spec | OmniBook 900 | OmniBook 900B |
|---|---|---|
| Release Date | January 1999 | 1999? |
| CPU | CPU Type: Mini Daughtercard - Intel Mobile Pentium II @300, 366, or 400MHz - Intel Mobile Pentium III @450 or 500MHz | |
| Chipset | Intel 440BX | |
| RAM | Type: PC66 SDRAM, 1 slot Standard: 32, 64, or 96MB (32MB Soldered) Maximum: 160MB | Type: PC100 SDRAM, 1 slot Standard: 64 or 96MB (64MB Soldered) Maximum: 192MB |
| Storage | 2.5" IDE Requires Adapter: Yes Standard: 4, 6, or 12GB | |
| Display Options | - 12.1" Active Matrix LCD @800x600 - 13.3" Active Matrix LCD @1024x768 | |
| Graphics Chipset | NeoMagic MagicMedia 256AV (NM2200) VRAM: 2.5MB | ATI Rage Mobility-M VRAM: 4MB |
| Audio | NeoMagic NM2200 Audio - Mono Speaker - Microphone | ESS Maestro-2E - Mono Speaker - Microphone |
| Main Battery | Lithium Ion (6 cell) | |
| CMOS Battery | Unknown | |
| Power Supply | Unknown | |
| Media Drives | None, supports external floppy drive, CD-ROM drive, DVD-ROM drive, or LS-120 drive | |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support (1 slot) - TI PCI1225 Controller | |
| Networking | None | |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x USB 1.x - 1x External Drive Connector - 1x Mic In - 1x Line In - 1x Headphone Out - Infrared | |
| BIOS | Unknown | |
| Pointing Device | Trackpad & TrackPoint | |
Resources
| Link | Details |
|---|---|
 |
HP OmniBook 900 User Manual |
 |
HP OmniBook 900 Service Manual |
Common Faults & Maintenance
Brittle Plastics
The OmniBook 900's plastics are very brittle due to age. Most units I see on eBay have cracks forming near the display hinges, so it's likely that epoxy will be required to keep one intact.
