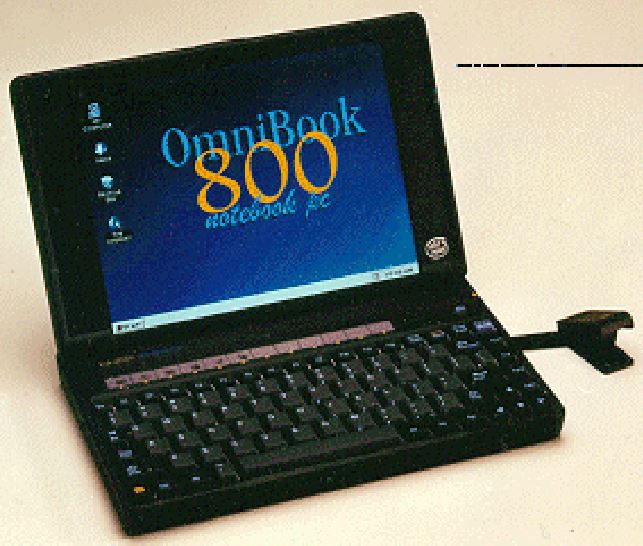

HP OmniBook 800
The OmniBook 800 is a Pentium-based subnotebook/mini-laptop that was released in September 1996.
Specifications
| Spec | OmniBook 800CS | OmniBook 800CT |
|---|---|---|
| CPU | CPU Type: Soldered TCP Intel Pentium @100 or 133MHz | CPU Type: Soldered TCP - Intel Pentium @100 or 133MHz - Intel Pentium MMX @166MHz |
| Chipset | VLSI Eagle II | |
| RAM | Type: EDO Standard: 16MB Maximum: 80MB | |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 810MB or 1.4GB | 2.5" IDE Requires Adapter: Unknown Standard: 810MB, 1.4GB, or 2.1GB |
| Display Options | 10.0" Passive Matrix Color LCD @800x600 | 10.4" Active Matrix Color LCD @800x600 |
| Graphics Chipset | NeoMagic MagicGraph 128 (NM2070) VRAM: 1MB | One of the following: - NeoMagic MagicGraph 128 (NM2070) (Pentium Models) - NeoMagic MagicGraph 128ZV (NM2093) (MMX Models) VRAM: 1MB (NM2070) or 2MB (NM2093) |
| Audio | Unknown 16-bit SB Compatible - 2x Mono Speakers | |
| Main Battery | Lithium Ion | |
| CMOS Battery | Unknown | |
| Power Supply | Unknown | |
| Media Drives | None, supports external floppy drive or CD-ROM drive | |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) | Non-MMX Model: 2x PCMCIA Slots (2x Type II/1x Type III) MMX Model: 2x PCMCIA/CardBus Slots w/ ZoomVideo Support in upper slot (2x Type II/1x Type III) |
| Networking | None | |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x Dock Connector - 1x SCSI-2 (via dock connector) - 1x External FDD Connector - 1x Mic In - 1x Line In - 1x Line Out - Infrared | |
| BIOS | SystemSoft | |
| Pointing Device | Pop-out Mouse | |
Resources
| Link | Details |
|---|---|
 |
HP OmniBook 800 Recovery Media |
 |
HP OmniBook 800CS/800CT Service Manual |
