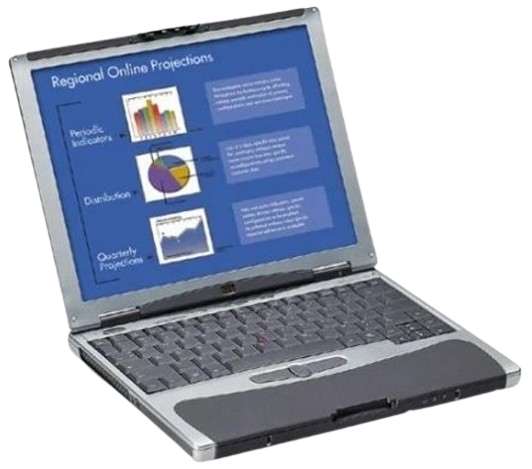

HP OmniBook 500
The OmniBook 500 is a Pentium III-based subnotebook that was released in 2000.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown - Intel Mobile Pentium III "Coppermine" @600, 700, or 750MHz - Intel Mobile Celeron "Coppermine" @500 or 600MHz |
| Chipset | Intel |
| RAM | Type: PC100 SDRAM, 2 slots Standard: 64 or 128MB Maximum: 512MB |
| Storage | 2.5" IDE Requires Adapter: Yes Standard: 7.5, 10, 20, or 30GB |
| Display Options | 12.1" TFT LCD @1024x768 |
| Graphics Chipset | One of the following: - ATI Rage Mobility-M (Celeron Models) - ATI Rage Mobility-M1 (Pentium III Models) VRAM: 4MB (M) or 8MB (M1) |
| Audio | ESS Maestro-2E - Mono Speaker - Microphone |
| Main Battery | Lithium Ion |
| CMOS Battery | 3-cell Varta NiMH |
| Power Supply | Barrel Jack |
| Media Drives | None, supports external floppy and CD-ROM drives via media base |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) - ZoomVideo Support - TI PCI1410 Controller |
| Networking | - 56k Modem (Optional) - 10/100 Ethernet (Optional) - WiFi (Optional) |
| Other I/O | - 2x USB 1.x - 1x VGA Out - 1x Dock Connector - 1x Mic In - 1x Headphone Out - Infrared |
| BIOS | Unknown |
| Pointing Device | TrackPoint |
Resources
| Link | Details |
|---|---|
 |
HP OmniBook 500 Recovery Media |
 |
HP OmniBook 500 Service Manual |
 |
HP OmniBook 500 Product Brochure |
