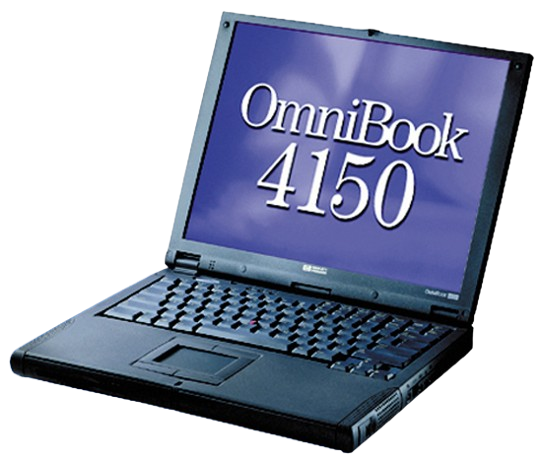

HP OmniBook 4150
The OmniBook 4150 is a Pentium II/III-based laptop that was released in October 1998. The Pentium III revision, known as the OmniBook 4150B, released in 1999 and swapped out the NeoMagic video for ATI graphics.
You can quickly identify if a laptop is the B variant based on the OmniBook name plate on the lid. If it is gray, it is an OmniBook 4150. If it is silver, than it is an OmniBook 4150B.
Specifications
| Spec | OmniBook 4150 | OmniBook 4150B |
|---|---|---|
| Release Date | October 1998 | 1999? |
| CPU | CPU Type: MMC2 Intel Mobile Pentium II @300, 333, 366, or 400MHz | CPU Type: MMC2 - Intel Mobile Pentium III "Coppermine" @500 or 650MHz - Intel Mobile Pentium II @366 or 400MHz - Intel Mobile Celeron @450MHz |
| Chipset | Intel 440BX | |
| RAM | Type: PC66 SDRAM, 2 slots Standard: 64 or 128MB Maximum: 256MB | Type: PC100 SDRAM, 2 slots Standard: 64 or 128MB Maximum: 256MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 4.8, 6.0, or 10.0GB | 2.5" IDE Requires Adapter: Unknown Standard: 4.8, 6.0, 12.0, or 18.0GB |
| Display Options | 14.1" Active Matrix LCD @1024x768 | - 13.3" Active Matrix LCD @1024x768 - 14.1" Active Matrix LCD @1024x768 |
| Graphics Chipset | NeoMagic MagicMedia 256AV (NM2200) VRAM: 2.5MB | One of the following: - ATI Rage Mobility-M - ATI Rage Mobility-M1 VRAM: 4 or 8MB |
| Audio | NeoMagic NM2200 Audio (NMA2) - Stereo Speakers - Microphone | ESS Maestro-2 - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (9 cell, 45Wh) | |
| CMOS Battery | Unknown | |
| Power Supply | Barrel Jack | |
| Media Drives | Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - 24X CD-ROM Drive - DVD-ROM Drive - LS-120 SuperDisk Drive - 2nd HDD | |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - TI PCI1220 Controller | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - TI PCI1225 Controller |
| Networking | None | |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x Mic In - 1x Line In - 1x Line Out - Infrared | |
| BIOS | Unknown | |
| Pointing Device | Trackpad & TrackPoint | |
Resources
| Link | Details |
|---|---|
 |
HP OmniBook 4150 User Manual |
 |
HP OmniBook 4150 Service Manual |
Common Faults & Maintenance
Brittle Plastics
The OmniBook 4150's plastics are very brittle due to age. Most units I see on eBay have cracks forming near the display hinges, so it's likely that epoxy will be required to keep one intact.
