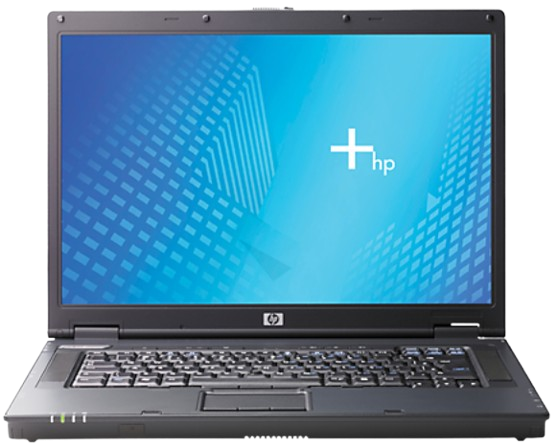

HP Compaq nw8240
The HP Compaq nw8240 is a Pentium M-based mobile workstation laptop that was released in 2005.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 479 (Banias/Dothan) Intel Pentium M "Dothan" @1.6, 1.73, 1.86, 2.0, or 2.13GHz |
| Chipset | Mobile Intel 915PM Express |
| RAM | Type: 533MHz DDR2, 2 slots Standard: 256MB, 512MB, or 1GB Maximum: 2GB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 40, 60, or 80GB |
| Display Options | - 15.4" TFT LCD @1280x800 - 15.4" TFT WVA LCD @1680x1050 - 15.4" TFT WVA LCD @1920x1200 |
| Graphics Chipset | ATI Mobility FireGL V5000 VRAM: 128MB |
| Audio | ADI AC97 - Stereo Speakers |
| Main Battery | Lithium Ion (8-cell, 69Wh) Optional Slice Battery (8-cell, 52Wh) |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Media Drives | Modular Bay supporting the following: - DVD-ROM Drive - DVD/CD-RW Drive - DVD+/-RW Drive - Secondary HDD |
| PC Cards | 1x PCMCIA/CardBus Slot (Type II) 1x Smart Card Reader |
| Networking | - 56k Modem - Gigabit Ethernet - WiFi - Bluetooth 1.2 |
| Other I/O | - 1x Serial - 3x USB 2.0 - 1x IEEE1394/FireWire - 1x SD/MMC Card Reader - 1x VGA Out - 1x S-Video Out - 1x Dock Connector - 1x Mic In - 1x Line Out - Infrared |
| BIOS | Unknown |
| Pointing Device | Trackpad & TrackPoint |
Resources
| Link | Details |
|---|---|
 |
HP Compaq nw8240 Service Manual |
 |
HP Compaq nw8240 QuickSpecs |
