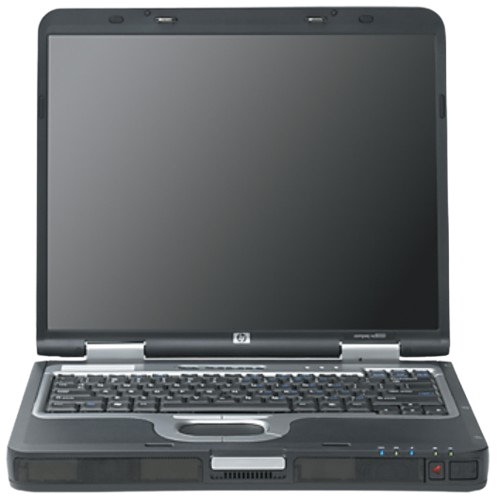

HP Compaq nc8000
The HP Compaq nc8000 is a Pentium M-based business laptop that was released in 2003.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel Pentium M "Banias" @1.5, 1.6, 1.7, 1.8, or 2.0GHz |
| Chipset | Intel 855PM |
| RAM | Type: 333MHz DDR, 2 slots Standard: 512MB Maximum: 2GB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 40, 60, or 80GB |
| Display Options | - 15.0" TFT LCD @1024x768 - 15.0" TFT LCD @1400x1050 - 15.0" TFT LCD @1600x1200 |
| Graphics Chipset | ATI Mobility Radeon 9600 VRAM: 64 or 128MB |
| Audio | Conexant CX20468 - Stereo Speakers |
| Main Battery | Lithium Ion (8 cell) |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Media Drives | 3 Spindle - Fixed CD-ROM, DVD-ROM, DVD/CD-RW, DVD+RW, or DVD+/-RW Drive - Modular Bay supporting Floppy Drive, CD-ROM, DVD-ROM, DVD/CD-RW, or DVD+RW Drive |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) |
| Networking | - 56k Modem - Gigabit Ethernet - WiFi (Optional) - Bluetooth (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x S-Video Out - 1x Dock Connector - 2x USB 2.0 - 1x IEEE1394/FireWire - 1x SD Card Reader - 1x Mic In - 1x Headphone Out - Infrared |
| BIOS | Unknown |
| Pointing Device | Trackpad & TrackPoint |
Resources
| Link | Details |
|---|---|
 |
HP Compaq nc8000 Service Manual |
 |
HP Compaq nc8000 QuickSpecs |
