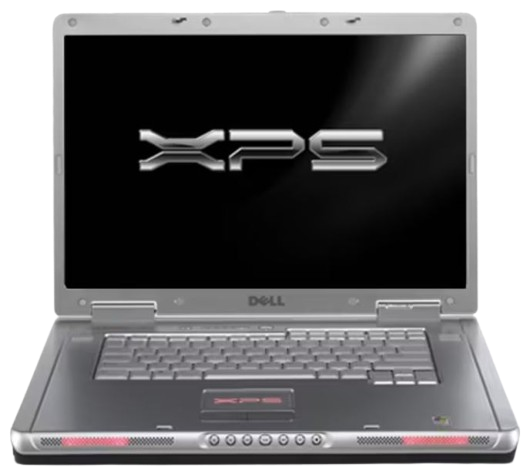

Dell XPS M1710
Case Model: PP05XB
The XPS M1710 is a 17.0" Socket M-based laptop that was released in 2006.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket M - Intel Core Duo T2400 @1.83GHz - Intel Core Duo T2500 @2.0GHz - Intel Core Duo T2600 @2.16GHz - Intel Core 2 Duo T5600 @1.83GHz - Intel Core 2 Duo T7200 @2.0GHz - Intel Core 2 Duo T7400 @2.16GHz - Intel Core 2 Duo T7600 @2.33GHz - Intel Core 2 Duo T7600G @2.33GHz |
| Chipset | Mobile Intel 945PM Express |
| RAM | Type: DDR2, 2 slots Standard: 1, 2, or 4GB Maximum: 4GB |
| Storage | 2.5" SATA Requires Adapter: No Standard: 60, 80, 100, 120, 200, or 320GB |
| Display Options | 17.0" TFT LCD @1920x1200 |
| Graphics Chipset | NVIDIA GeForce Go 7900 GS, 9700 GTX, or 9750 GTX VRAM: 256MB (GS) or 512MB (GTX) |
| Audio | HD Audio - Stereo Speakers - Subwoofer - Microphone |
| Main Battery | Lithium Ion (9 cell) |
| CMOS Battery | Unknown |
| Power Supply | Dell Large Barrel Jack - Dell PA-13 |
| Media Drives | One of the following optical drives: - 24X CD-RW/DVD Drive - 8X DVD/CD Burner - Blu-ray Drive |
| PC Cards | 1x ExpressCard 54/34 Slot |
| Networking | - 56k Modem - Gigabit Ethernet - WiFi - Bluetooth (Optional) |
| Other I/O | - 6x USB 2.0 - 1x IEEE1394/FireWire - 1x VGA Out - 1x DVI-D Out - 1x S-Video Out - 1x MS/MS Pro/SD/SDIO/MMC/xD Card Reader - 1x Mic In - 1x Line Out |
| BIOS | Dell |
| Pointing Device | Trackpad |
Resources
 Drivers |
 User's Manual |
 Service Manual |
 Product Page (Archived) |
|---|
Gallery
No images are currently available. If you own an XPS M1710, help the site out by sending some in!
Page last updated (MM/DD/YYYY): 03/24/2025
Update Reason: page created
