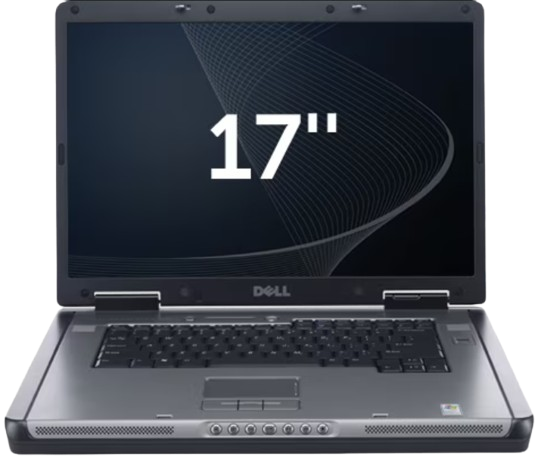

Dell Precision M6300
The Precision M6300 is a Socket M-based mobile workstation laptop that was released by Dell in 2007.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket M - Intel Core 2 Duo T7250 @2.0GHz - Intel Core 2 Duo T7500 @2.2GHz - Intel Core 2 Duo T7700 @2.4GHz - Intel Core 2 Duo T7800 @2.6GHz - Intel Core 2 Extreme X7900 @2.8GHz |
| Chipset | Mobile Intel PM965 Express |
| RAM | Type: DDR2, 2 slots Standard: 1, 2, or 4GB Maximum: 8GB |
| Storage | 2.5" SATA Requires Adapter: No Standard: - 80, 120, 160, or 200GB Hard Disk - 32GB SSD |
| Display Options | - 17.0" TFT LCD @1440x900 - 17.0" TFT LCD @1920x1200 |
| Graphics Chipset | NVIDIA Quadro FX 1600M VRAM: 256MB |
| Audio | HD Audio - Stereo Speakers - Microphone |
| Main Battery | Lithium Ion (9 cell) |
| CMOS Battery | Proprietary Lithium |
| Power Supply | Dell Large Barrel Jack - Dell PA-13 |
| Media Drives | One of the following optical drives: - 8X DVD-ROM Drive - 24X CD-RW/DVD Drive - 8X DVD+/-RW Drive - Blu-ray Drive |
| PC Cards | 1x ExpressCard 54/34 Slot |
| Networking | - 56k Modem - Gigabit Ethernet - WiFi (Optional) - Bluetooth |
| Other I/O | - 6x USB 2.0 - 1x VGA Out - 1x DVI-D Out - 1x S-Video Out - 1x IEEE1394/FireWire - 1x Mic In - 1x Line Out - 1x MS/MS Pro/SD/SDIO/MMC/xD Card Reader |
| BIOS | Dell |
| Pointing Device | Trackpad |
| Other Features | N/A |
Resources
 Drivers |
 User Manual |
|---|
Common Faults & Maintenance
GPU Failure
The M6300's NVIDIA Quadro GPU is affected by "bumpgate", and as such is highly prone to failure. Every M6300 video chip is faulty in this way and will eventually fail with enough use. As the chip itself is defective, reballing it will not fix it. The best way to extend the lifespan of the GPU is to ensure that it is running as cool as possible. If you have an M6300 with a failed GPU, a reflow can temporarily bring it back to life.
Gallery
No images are currently available. If you own an M6300, help the site out by sending some in!
Page last updated (MM/DD/YYYY): 03/23/2025
Update Reason: page created
