CTX EzBook 600 Series

CTX EzBook 600 Series

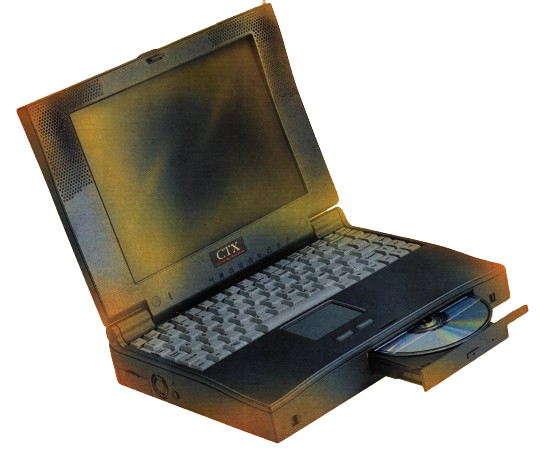

The CTX EzBook 600 Series (aka the EzBOOK CD) were CTX's first Pentium laptops, and their first laptops with CD-ROM support. Like other CTX laptops, the 600 was manufactured by Veridata. I believe they called it the CD Pro.


Specifications

Spec Details
CPU CPU Type: TCP (mounted to Socket 5 adapter)
Intel Pentium @75, 90, 100, or 120MHz
Chipset Unknown
RAM Type: 2x 72-pin slots
Standard: 8 or 16MB
Maximum: 32MB
Storage 2.5" IDE
Requires Adapter: Yes
Standard: 810MB
Display Options 10.4" Active Matrix Color LCD @640x480

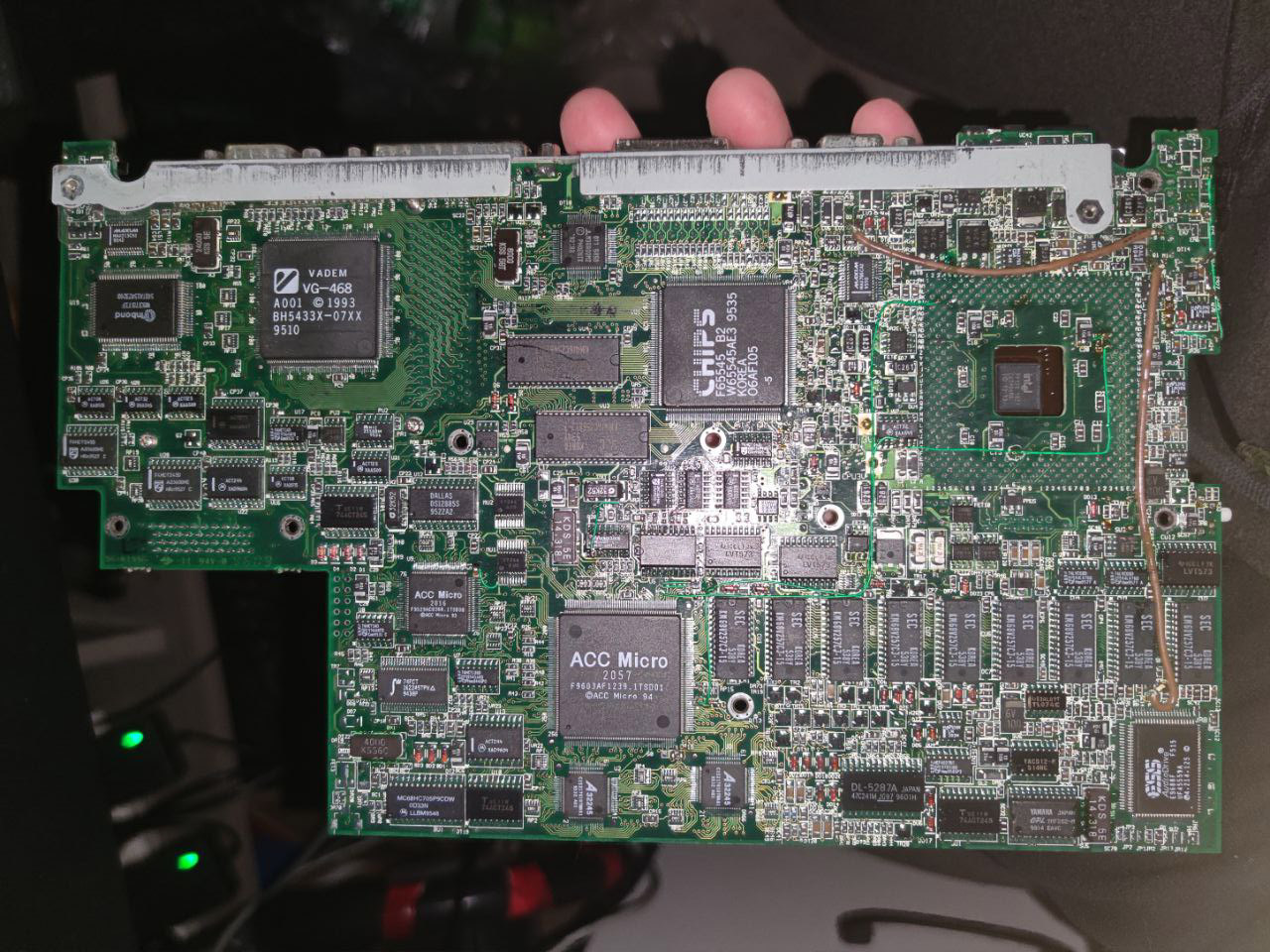

Graphics Chipset Chips & Technologies 65545
VRAM: 1MB
Audio ESS AudioDrive 688
- Stereo Speakers
- Microphone
Main Battery NiMH
CMOS Battery Unknown
Power Supply Barrel Jack

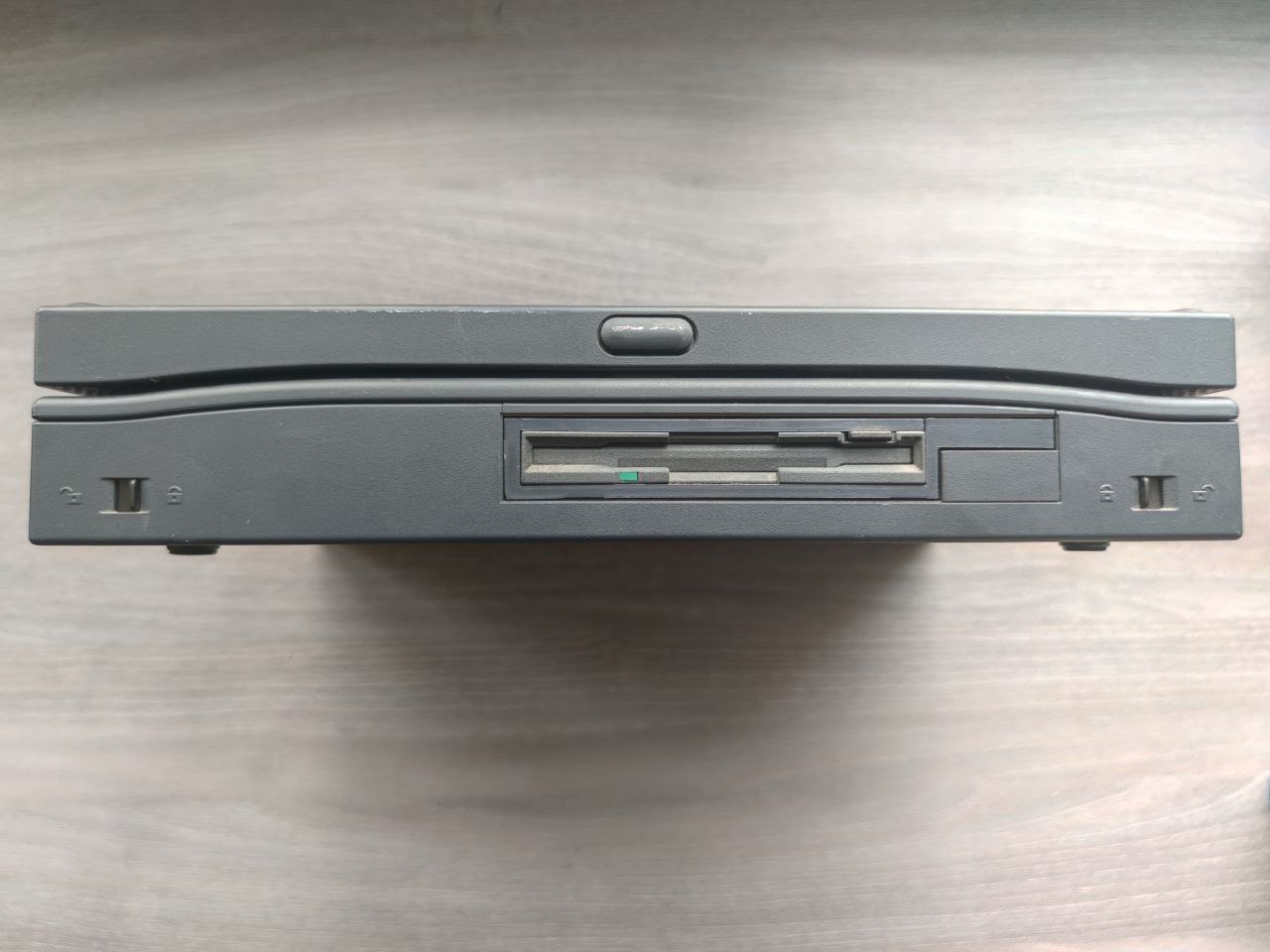

Media Drives Modular Bay supporting the following:
- 3.5" 1.44MB Floppy Drive
- CD-ROM Drive
- 2nd Battery
PC Cards 2x PCMCIA Slots (2x Type II/1x Type III)
- Vadem VG-468 Controller
Networking None

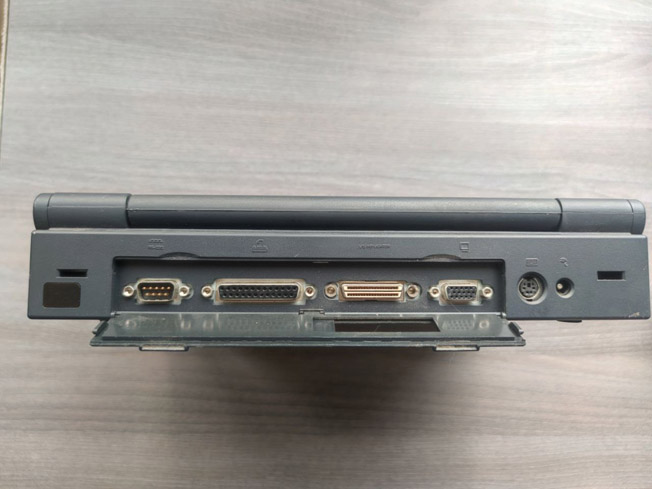

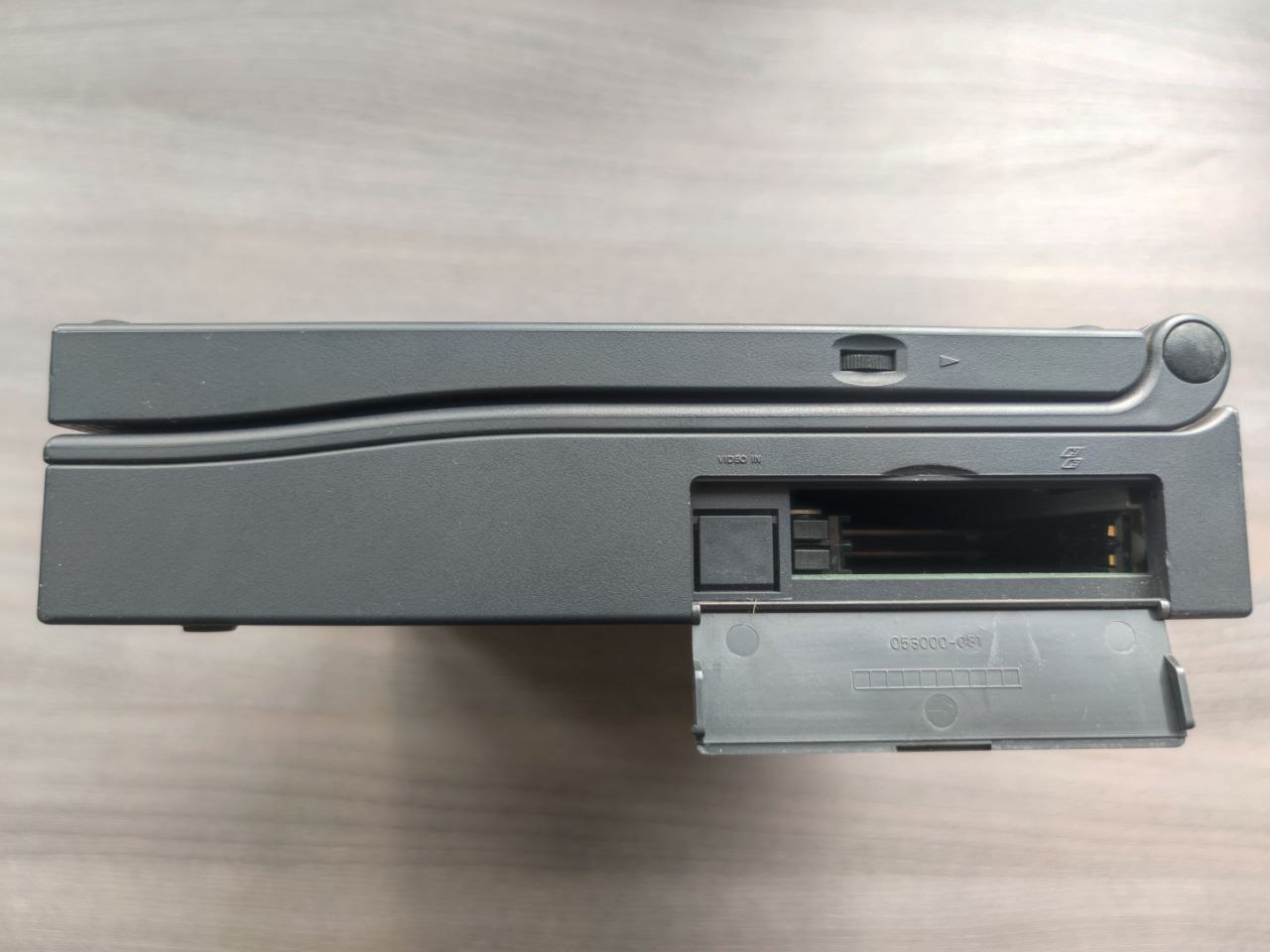

Other I/O - 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
- 1x Dock Connector
- 1x Video In (Optional)

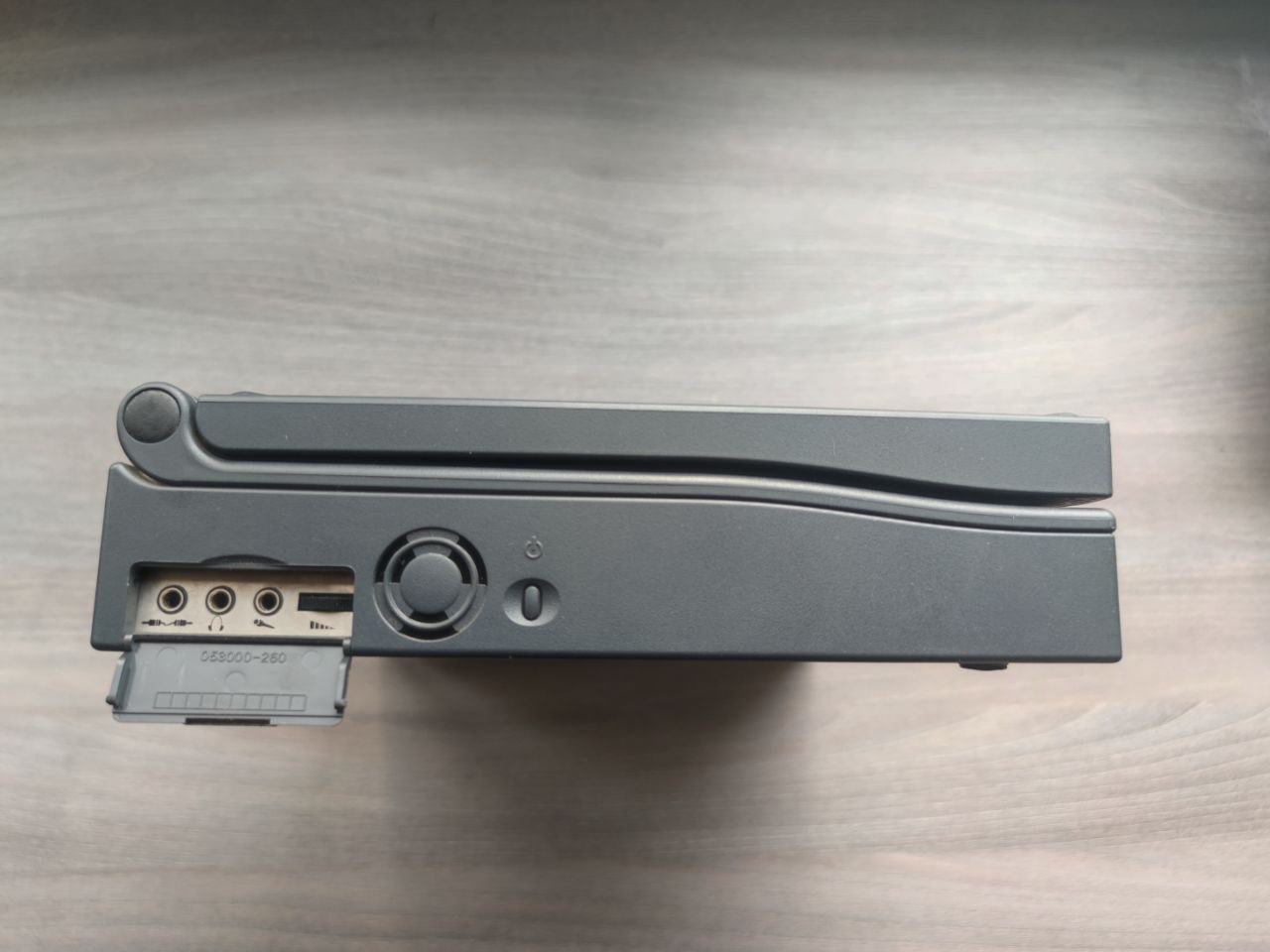

- 1x Mic In
- 1x Line In
- 1x Line Out
- Infrared
BIOS Phoenix
Pointing Device Trackpad or TrackPoint

Resources


Drivers

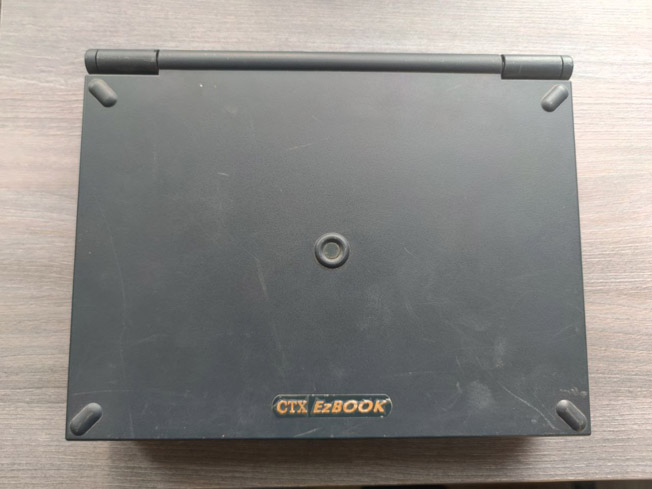

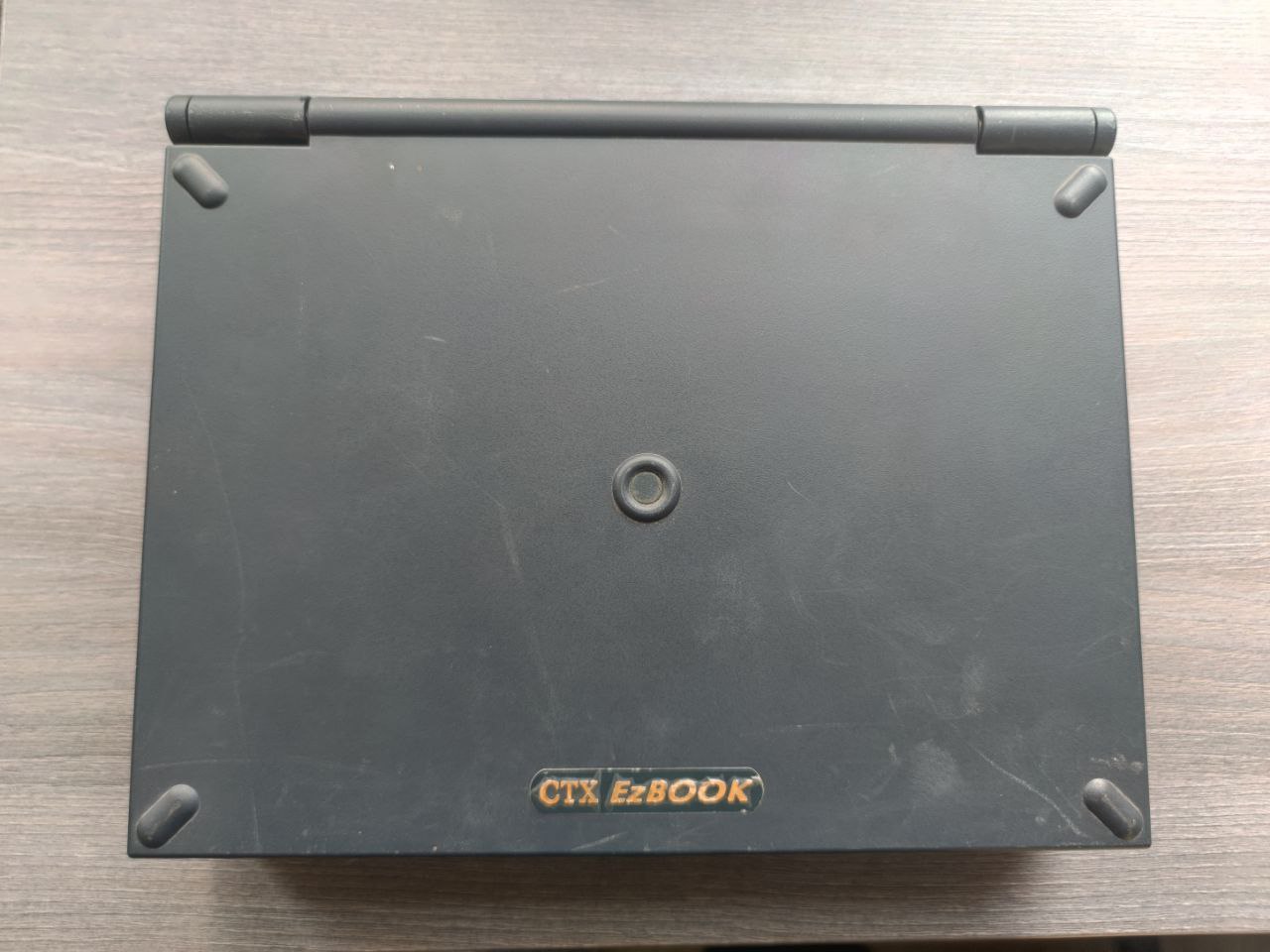

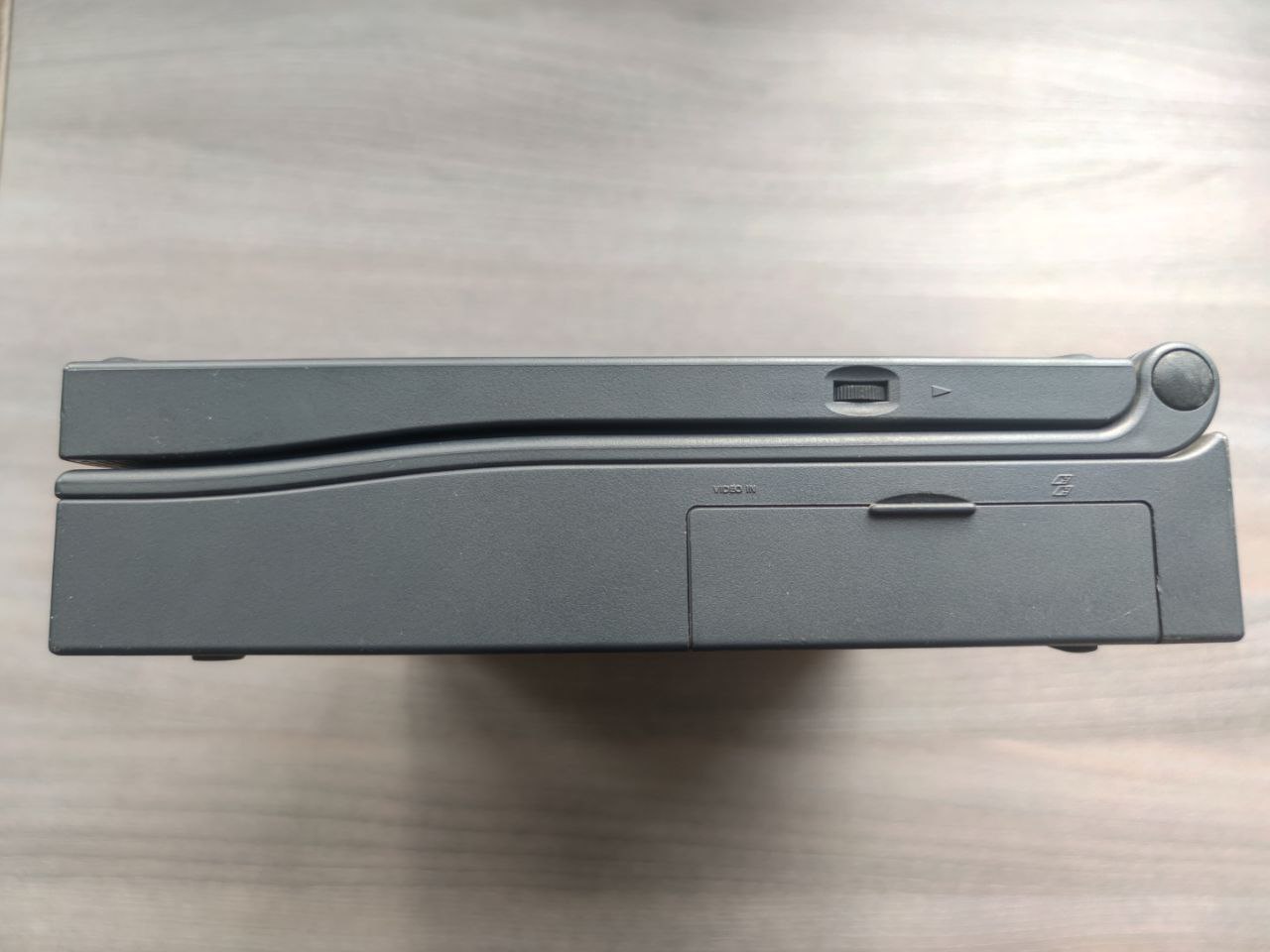

Gallery

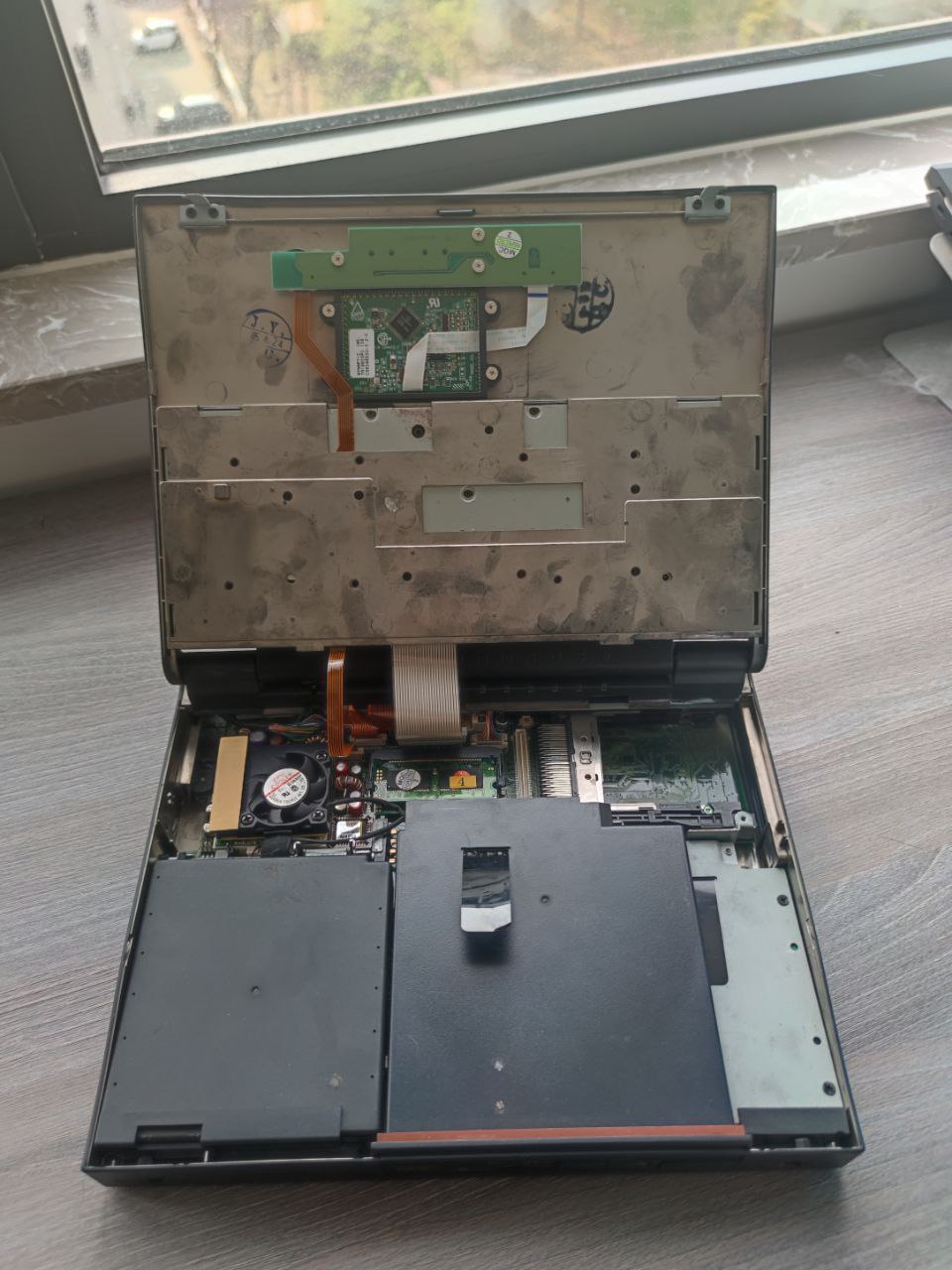

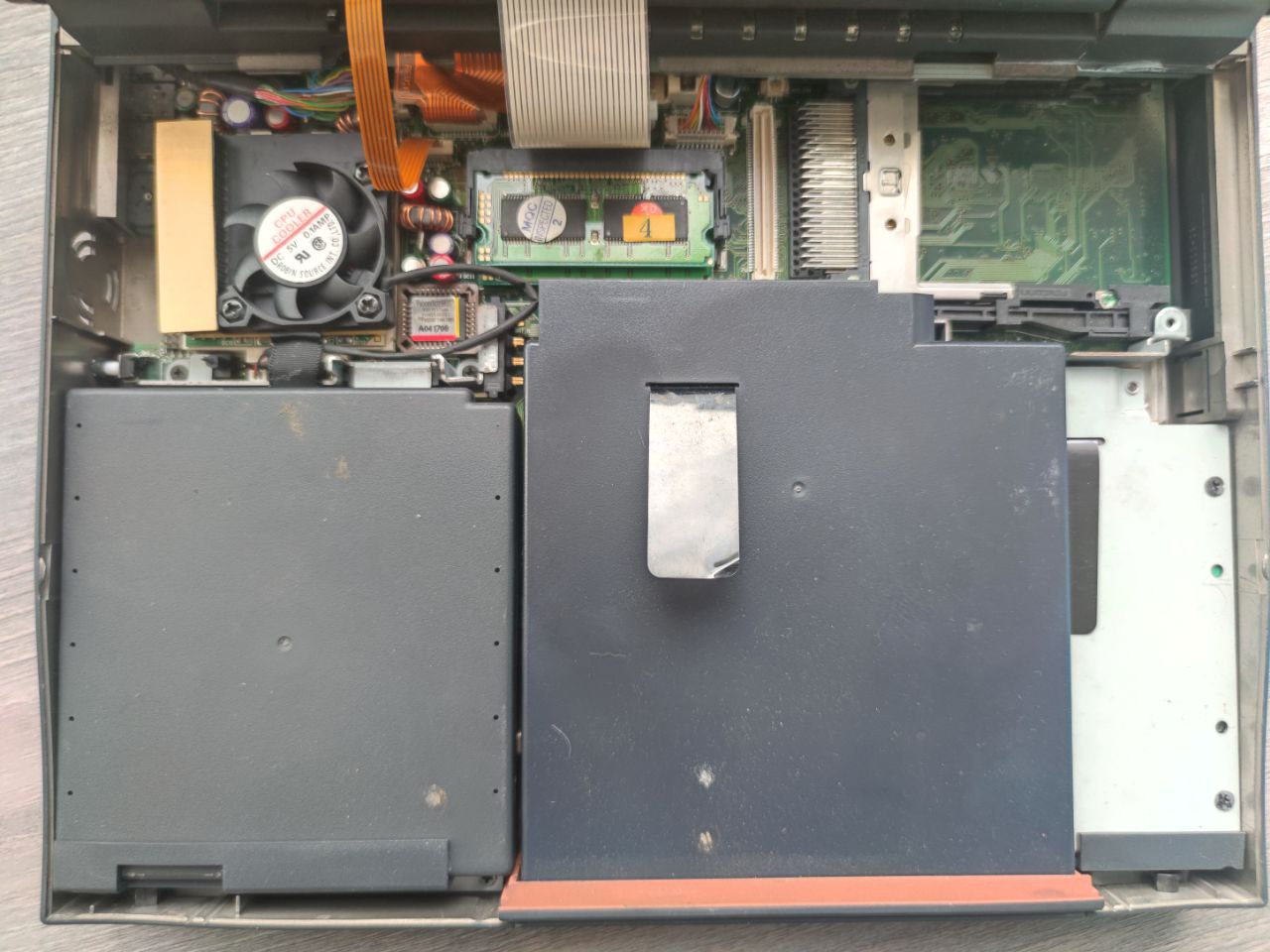

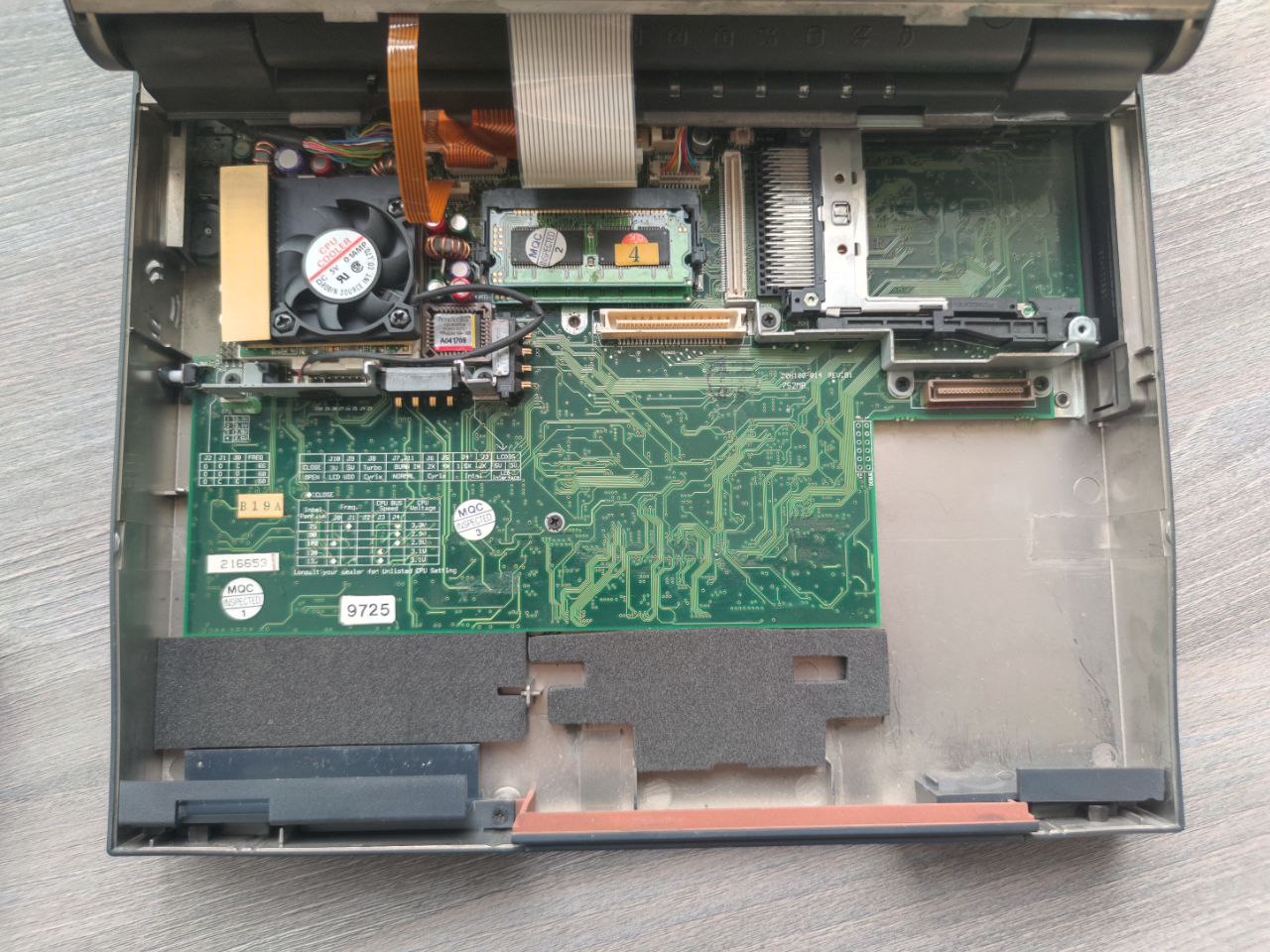

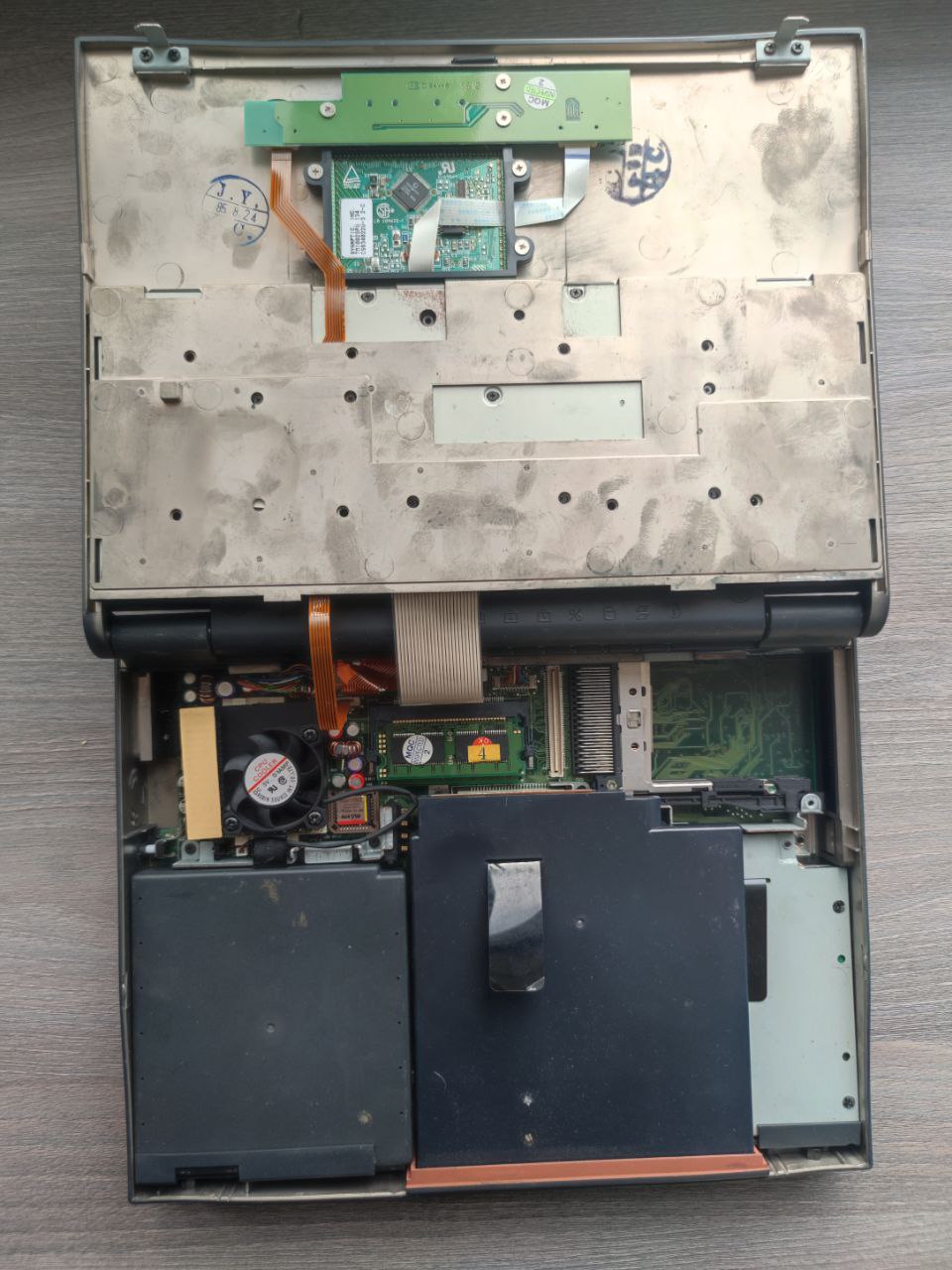

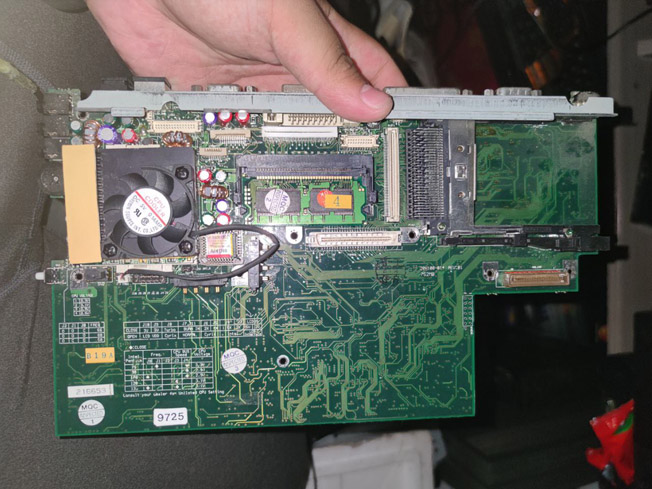

Disassembly








Print Ads

Click here to view all print ads featuring this laptop.
