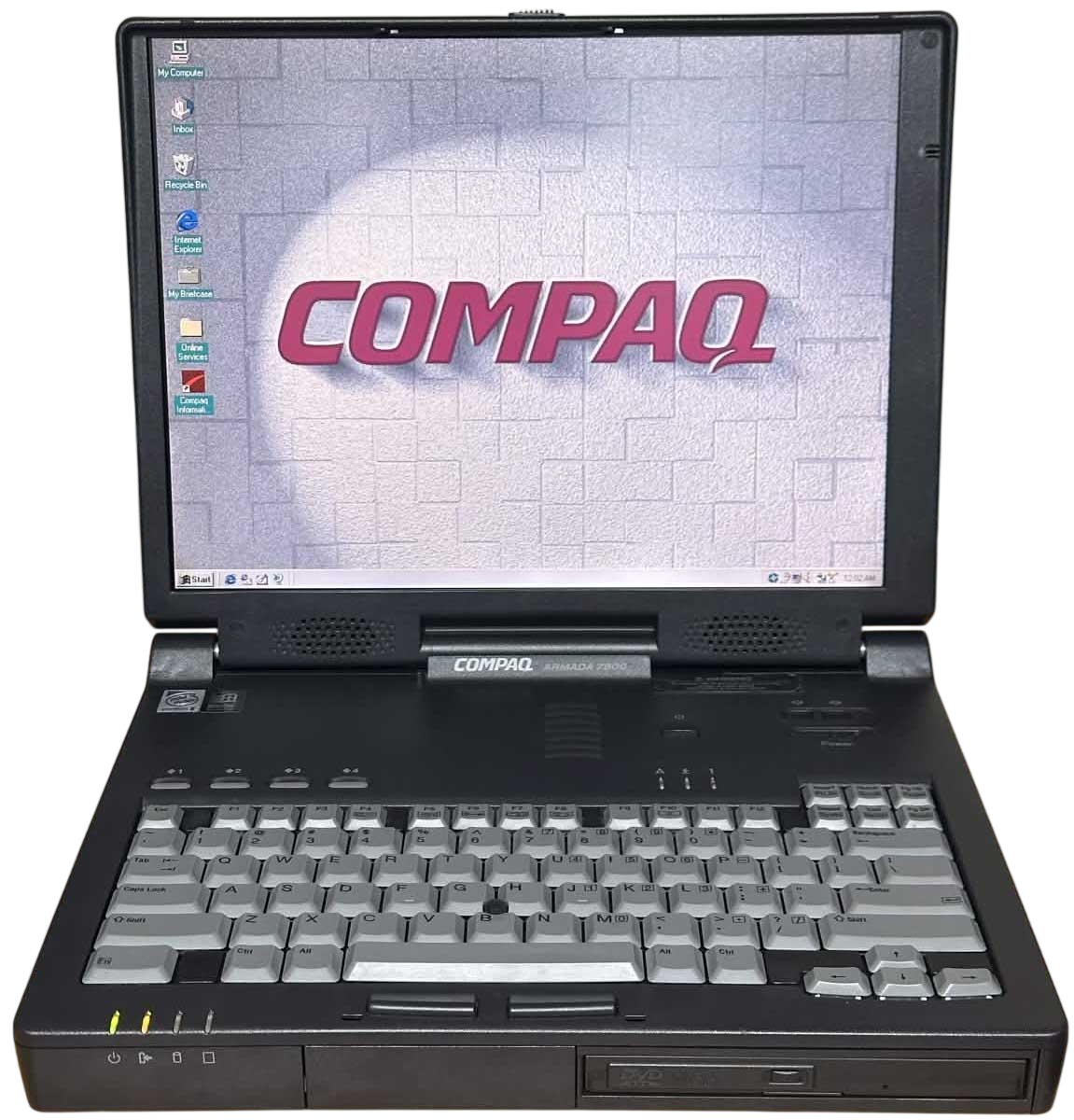

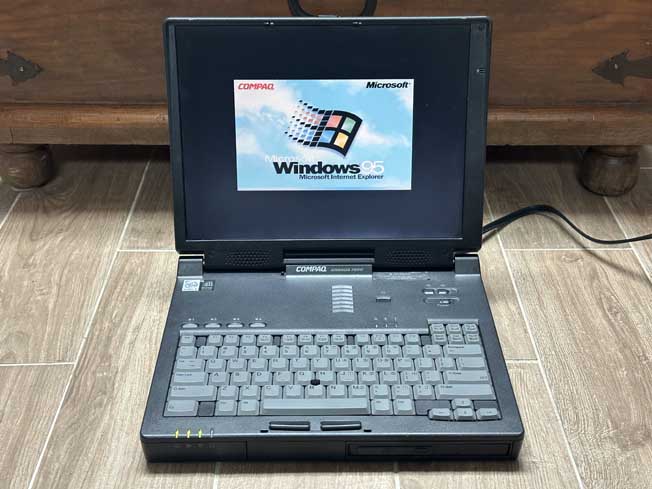

Compaq Armada 7800

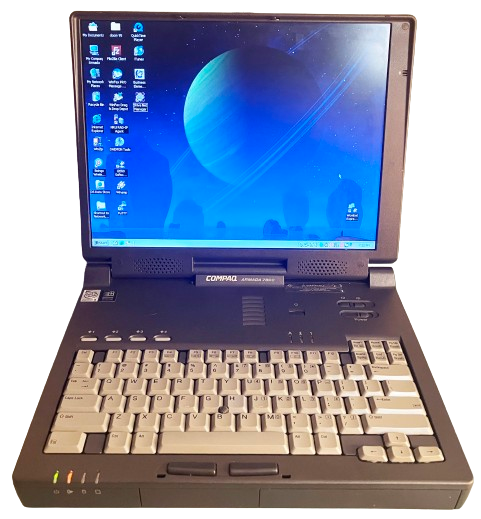

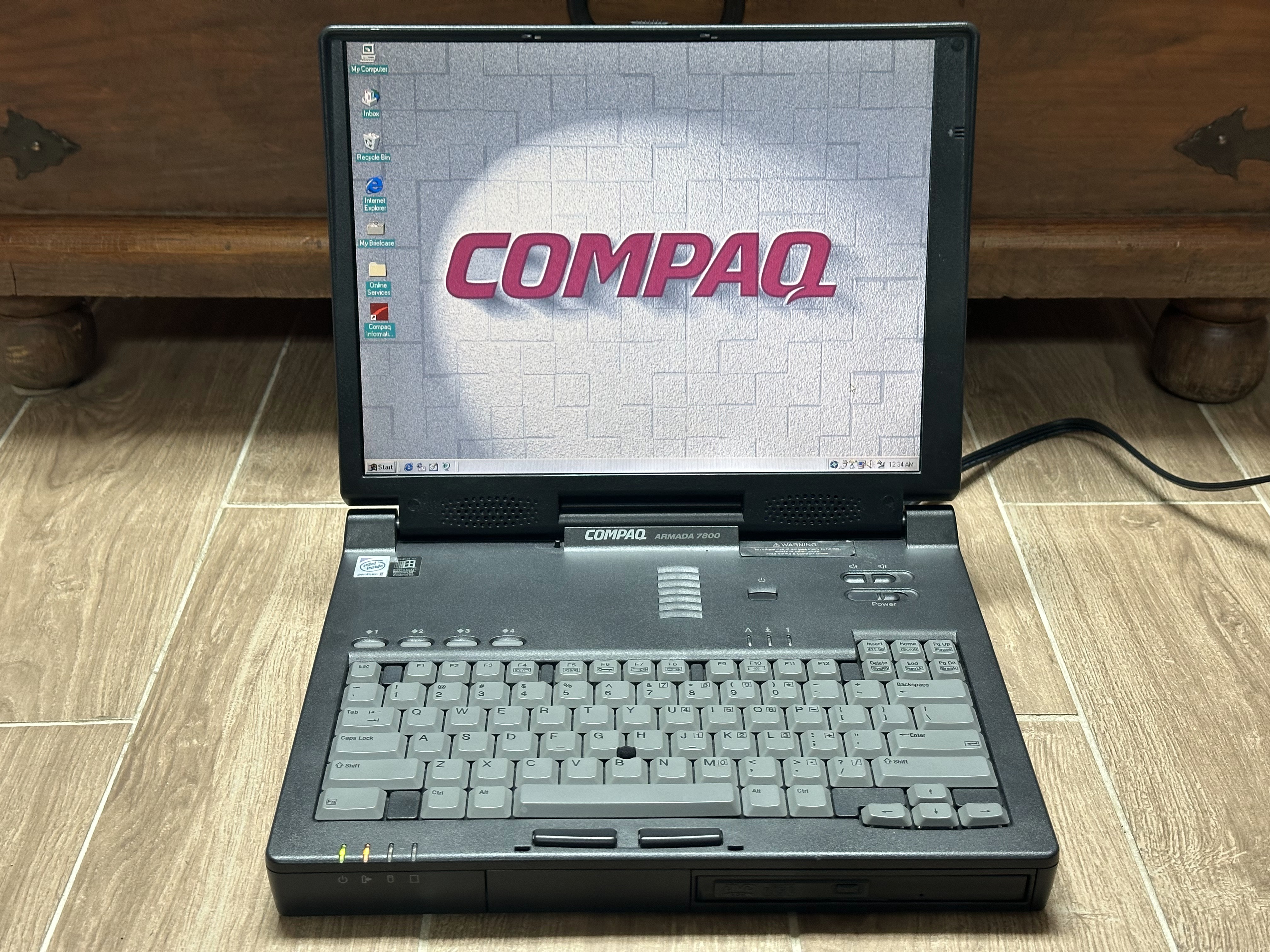

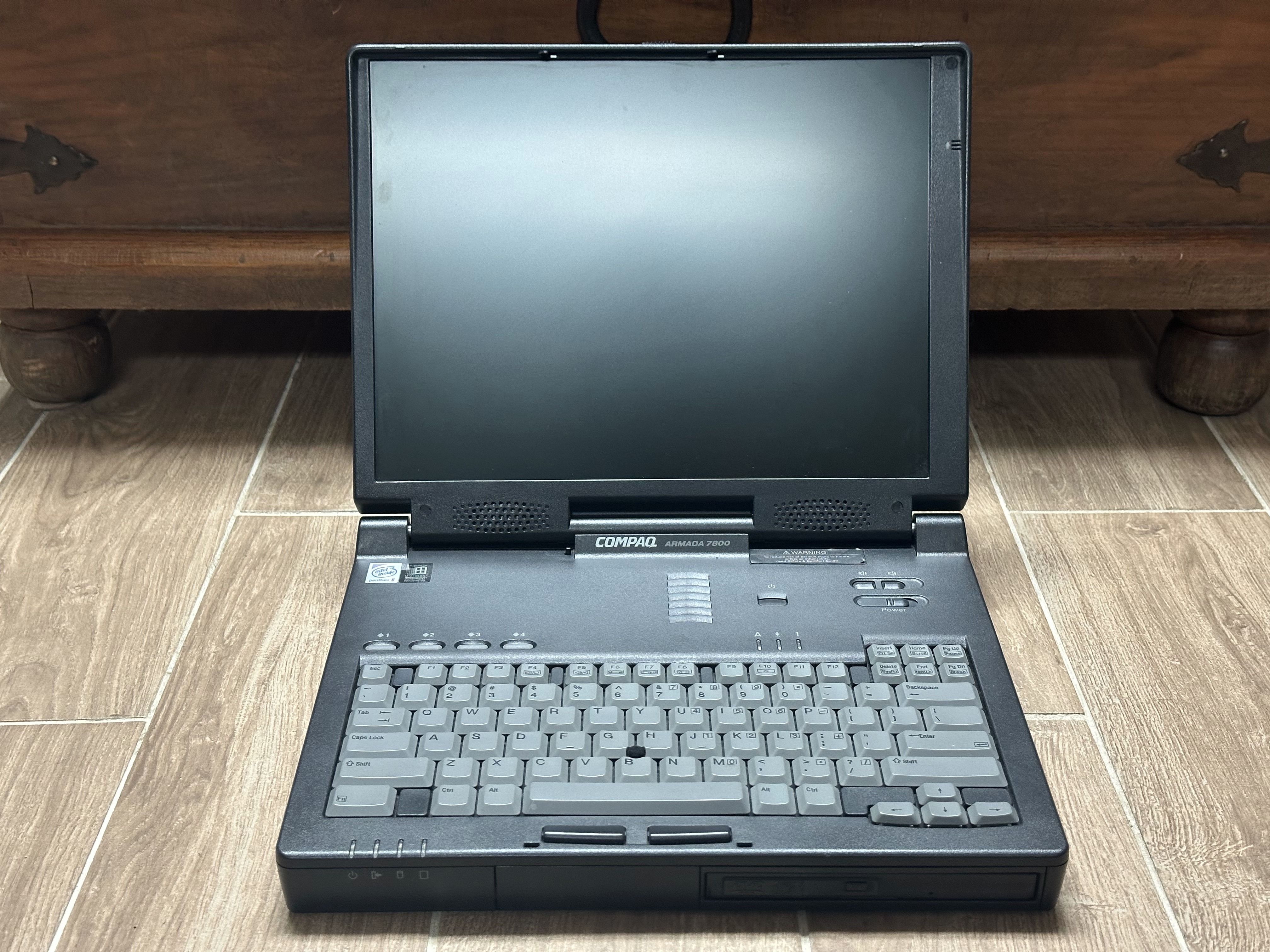

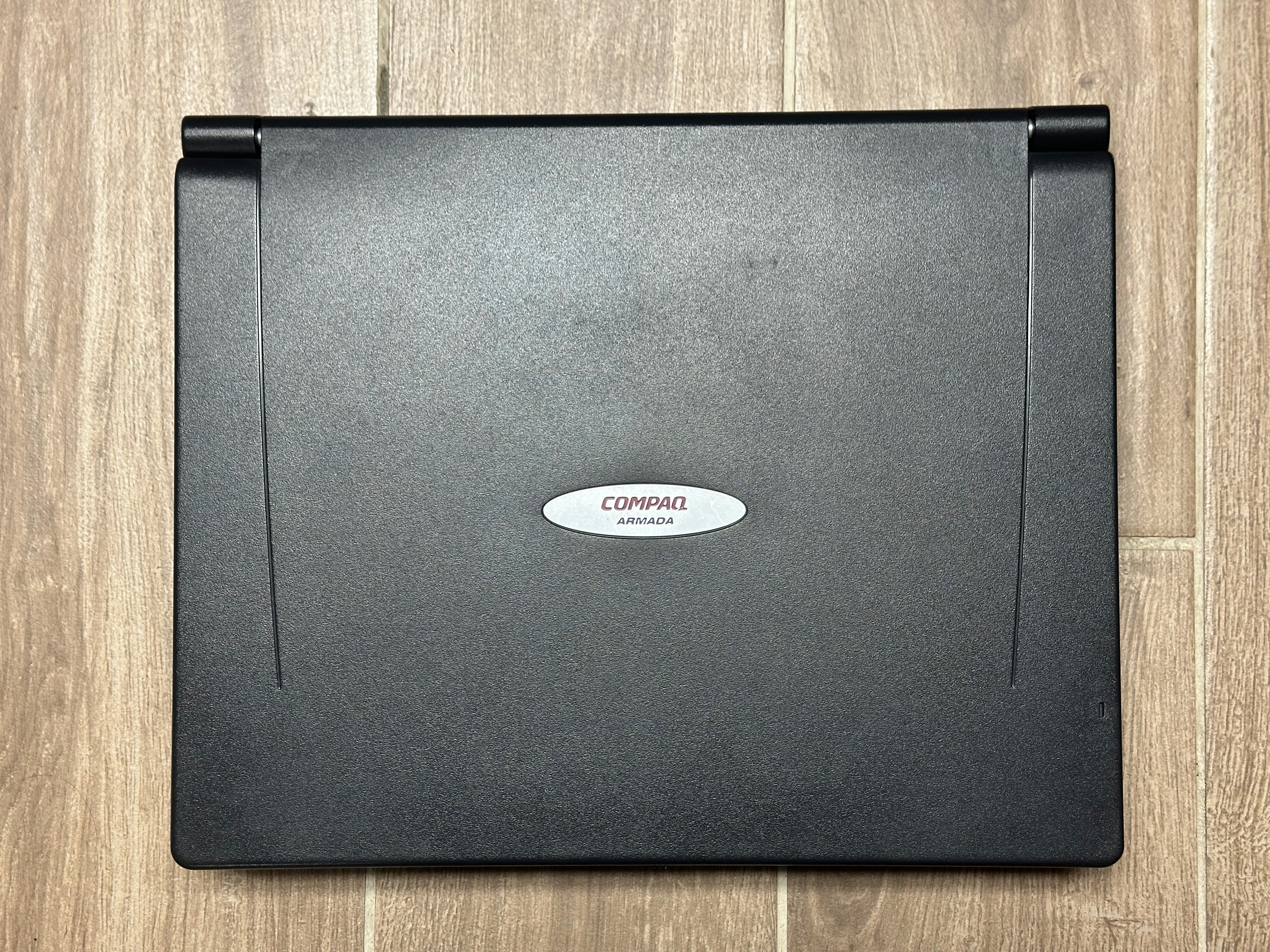

The Aramda 7800 was a Pentium II-based desktop replacement laptop, released by Compaq in 1998. They succeeded the 7700 Series, and shared a similar design to the 7790 and 7792, only in a black case instead of beige.

They are one of only a few laptops I'm aware of to use S3 graphics, and supposedly the first laptop with AGP graphics.

As far as I know, the 7800 is the final laptop that Compaq designed and manufactured completely in-house. This thing is fully custom, and an absolute tank. Notably, it is the only Pentium II-based laptop I know of which does not use a variant of the Intel 440 chipset. Instead, it uses a custom chipset designed by Compaq. The northbridge is known as "CETUS" and the southbridge is known as "DRACO-L". This also means that rather than using Intel's Mobile Module, it uses a form factor known as a "minicartriage" - less common than MMC, but also a standard, and upgradeable.

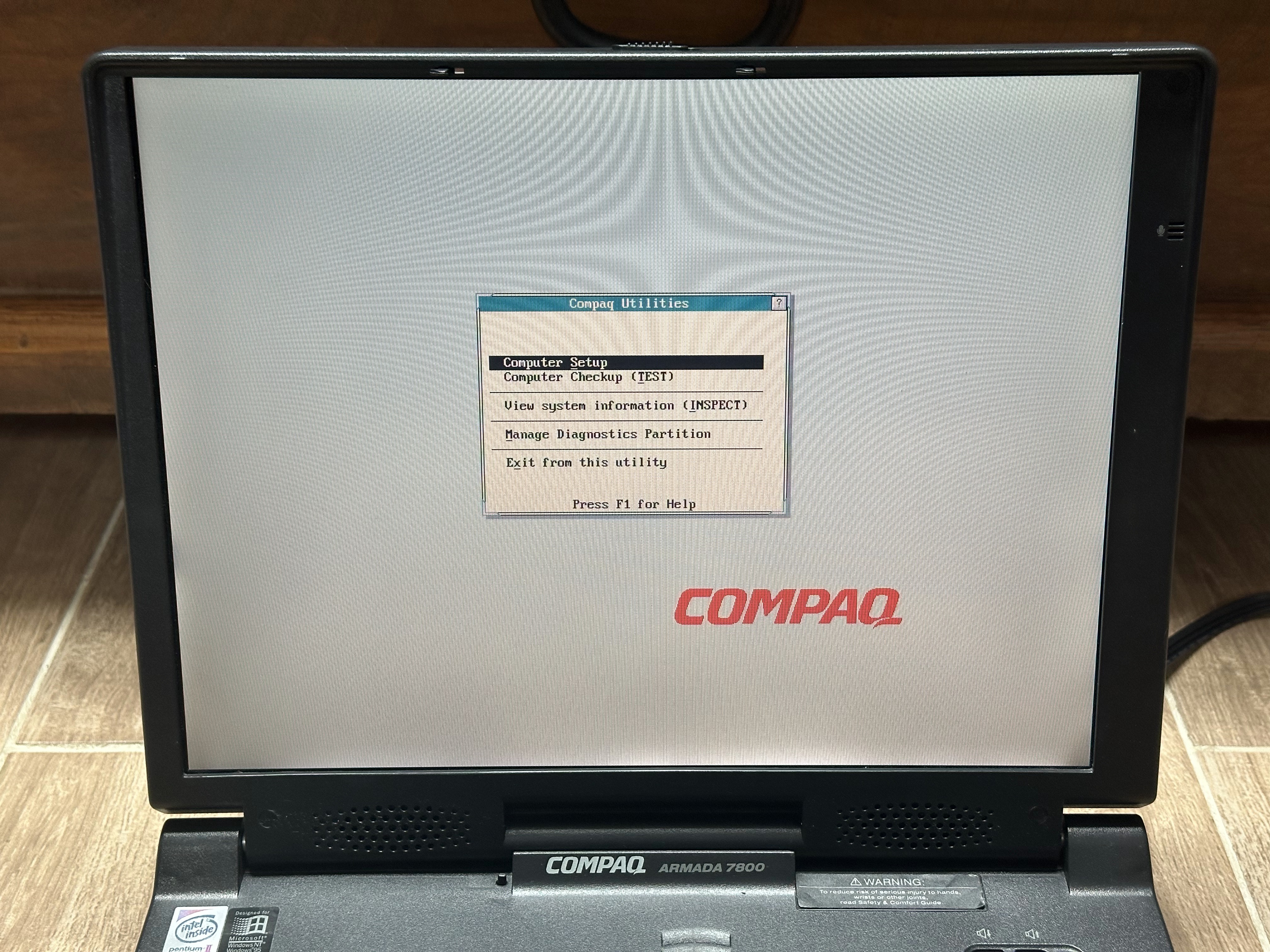

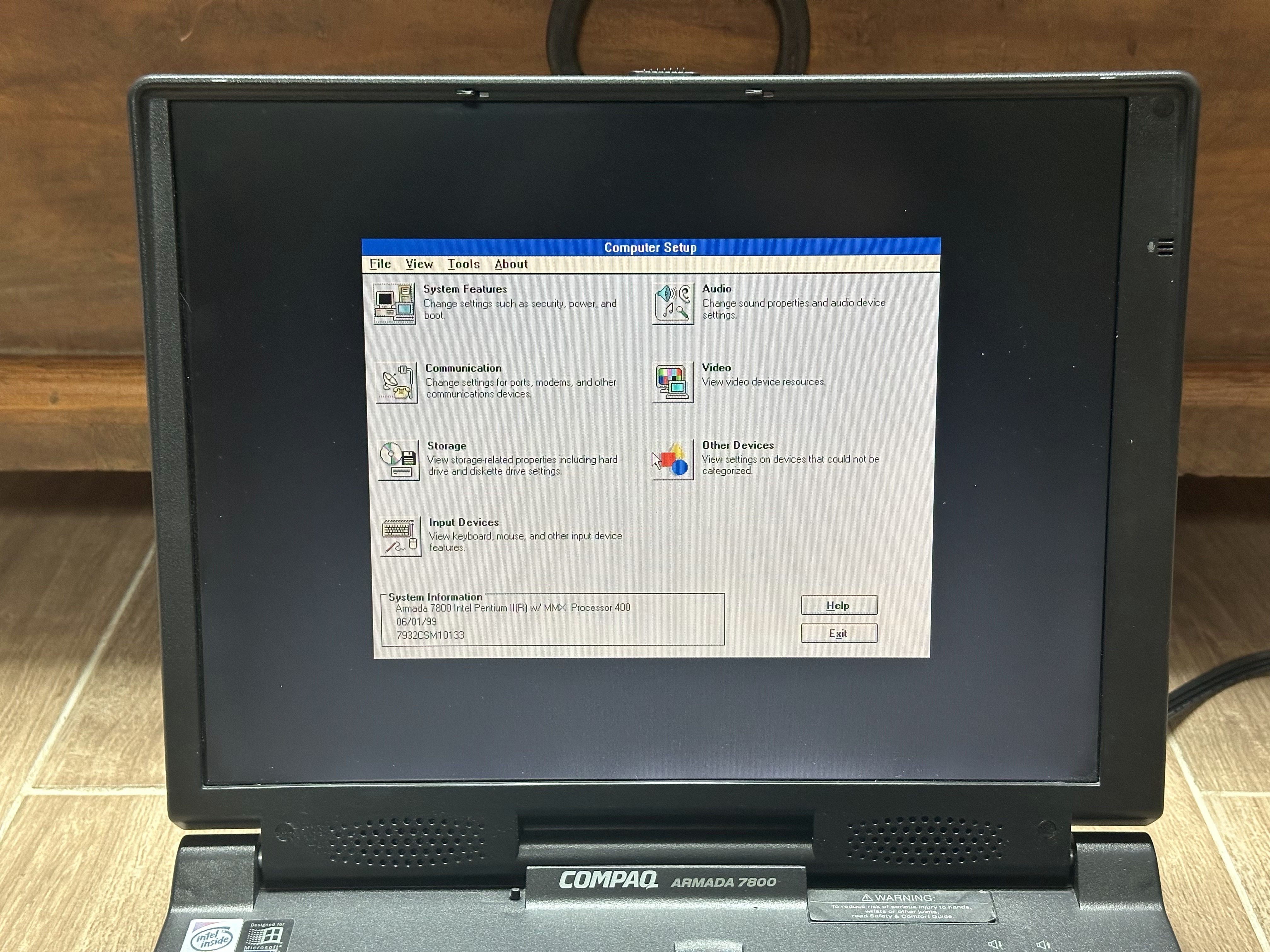

Like other laptops Compaq produced in-house, the 7800 uses Compaq's own BIOS, which still lacks a ROM setup, meaning that the laptop relies on a special setup partition on the hard drive to be able to change settings.

Specifications

Spec	Details
CPU	CPU Type: Minicartridge Intel Mobile Pentium II @266, 300, 366, or 400MHz
Chipset	Compaq CETUS/DRACO-L
RAM	Type: SDRAM, 2 slots Standard: 64MB Maximum: 256MB
Storage	2.5" IDE Requires Adapter: Yes Standard: 5, 8, or 14GB

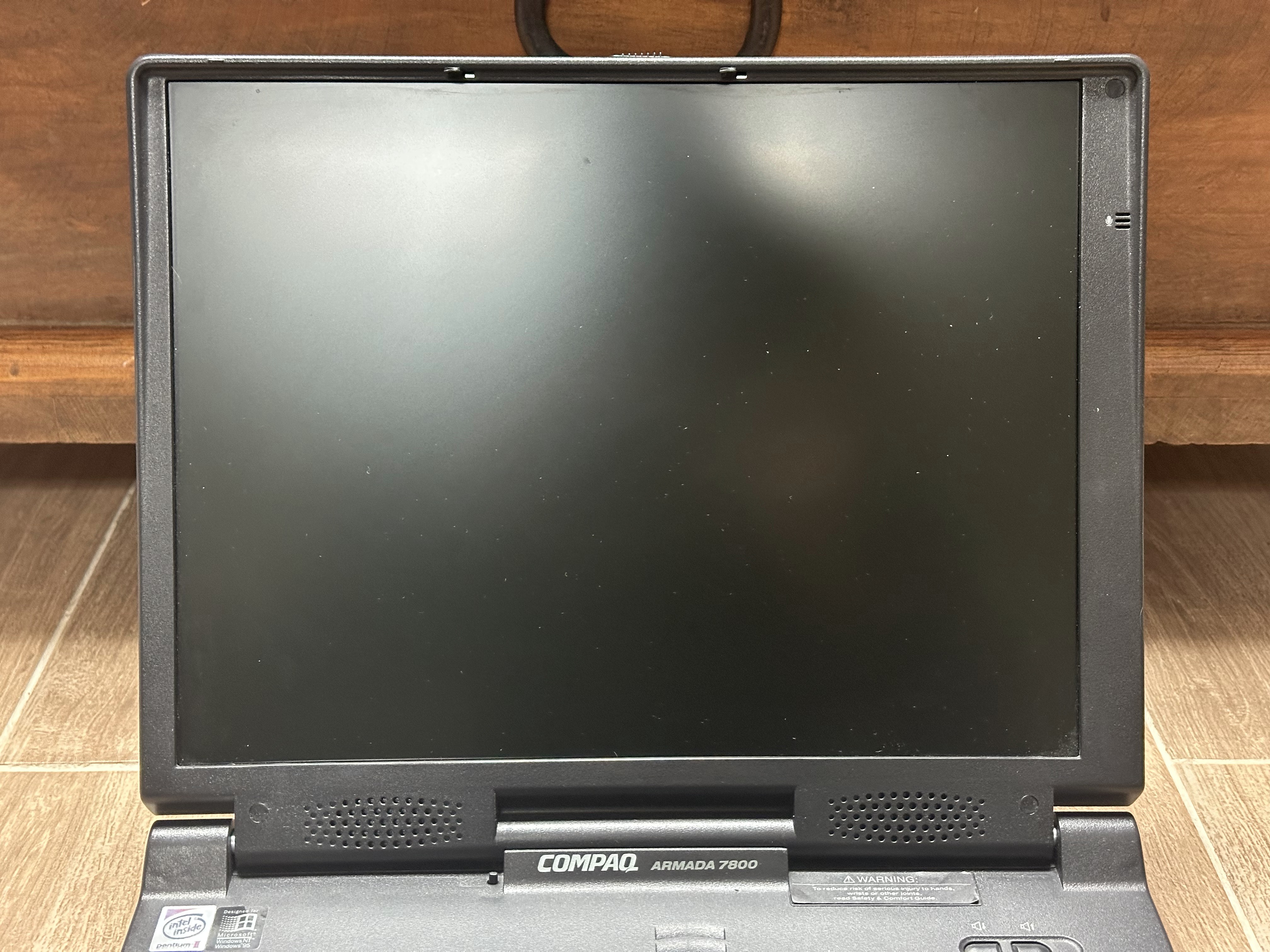

Display Options	- 13.3" TFT LCD @1024x768 - 14.1" TFT LCD @1024x768
Graphics Chipset	S3 ViRGE/MX VRAM: 4MB
Audio	ESS AudioDrive 1879 - Stereo Speakers - Microphone
Main Battery	Lithium Ion
CMOS Battery	- CR1220 Lithium CMOS Battery - Varta NiMH Reserve Battery
Power Supply	Internal, uses standard 3-prong mains cable

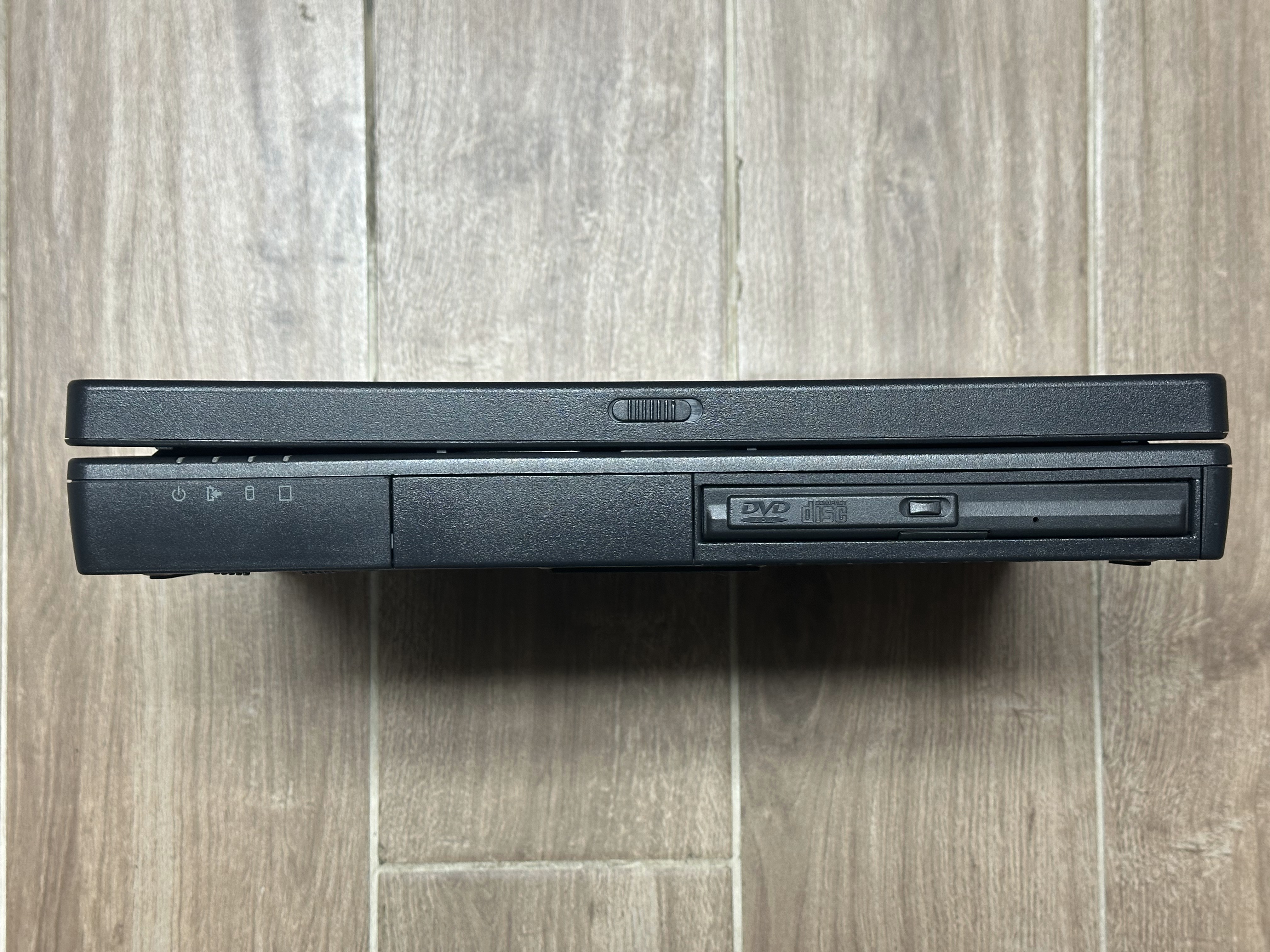

Media Drives	Modular Bay supporting the following: - 3.5" 1.44MB Floppy Drive - CD-ROM Drive - DVD-ROM Drive - LS-120 Drive - 2nd Battery

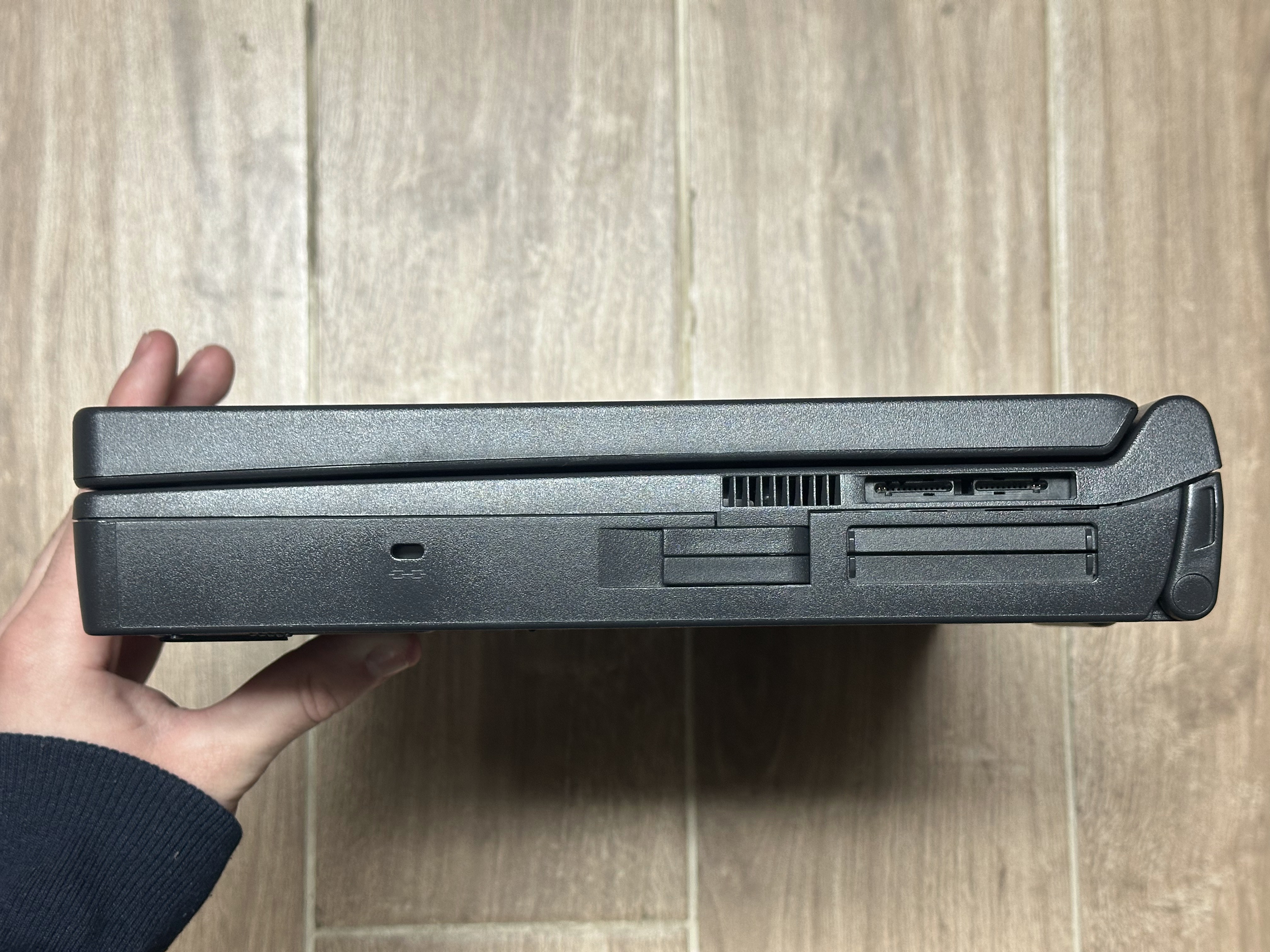

PC Cards	2x PCMCIA/CardBus Slots - ZoomVideo Support
Networking	Modem

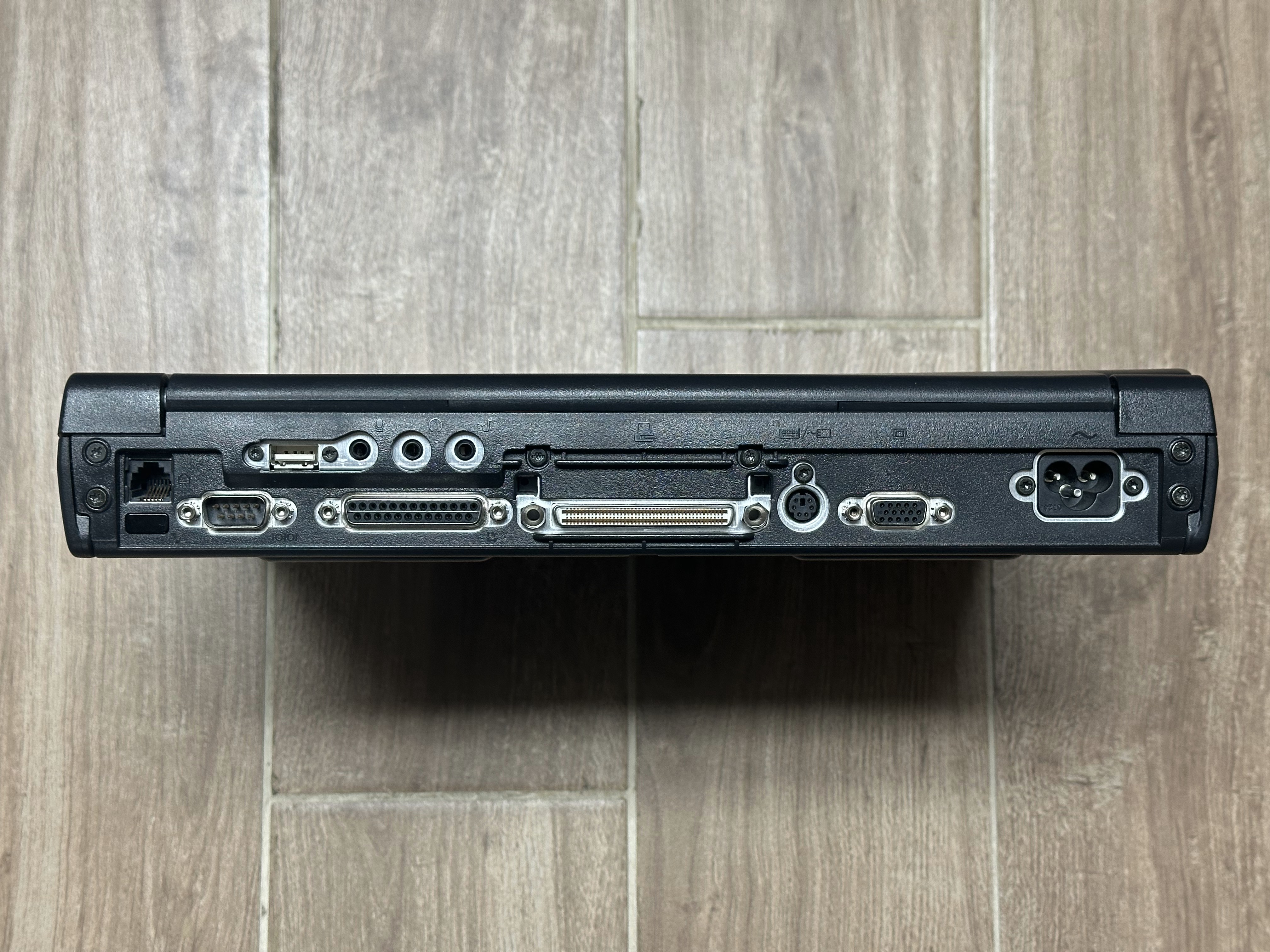

Other I/O	- 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x Headphone Out - 1x Mic In - 1x Line In - Infrared
BIOS	Compaq BIOS

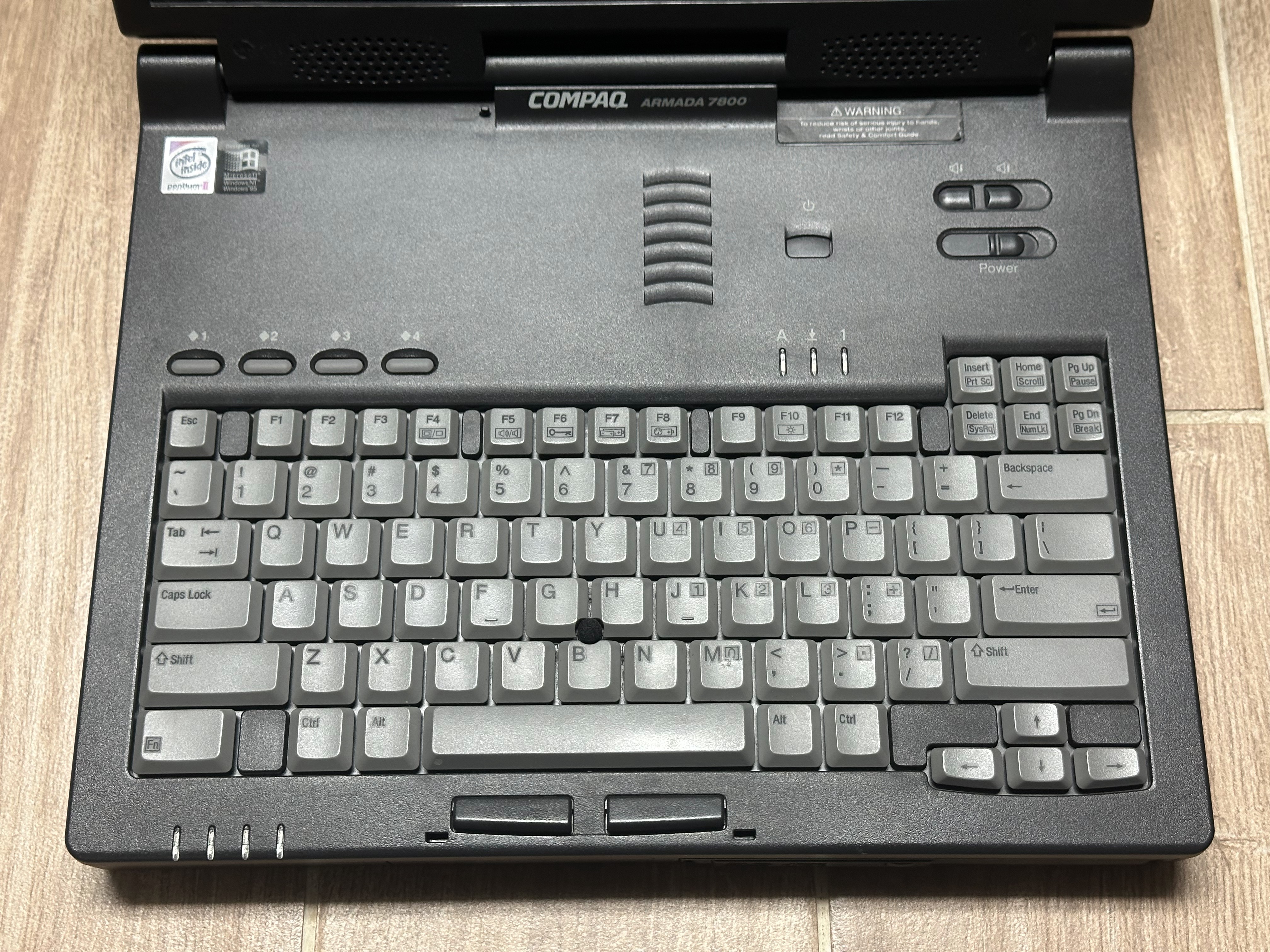

Pointing Device	TrackPoint
