Compaq Armada 7400

The Aramda 7400 is a Pentium II-based laptop that was released in 1998.


Specifications

Spec Details
CPU CPU Type: Unknown
Intel Mobile Pentium II @300, 333, or 366MHz
Chipset Unknown

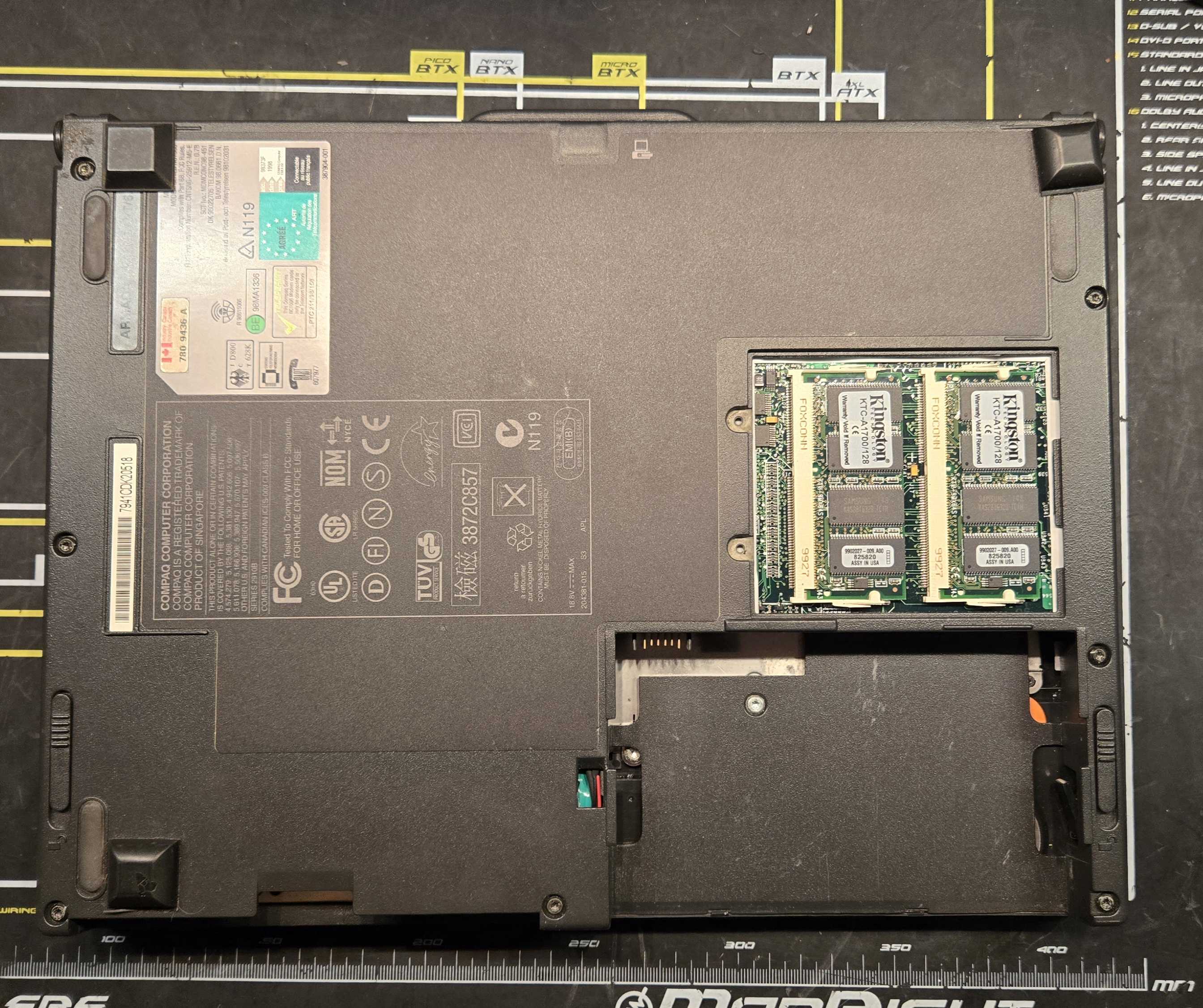

RAM Type: SDRAM, 2 slots
Standard: 64MB
Maximum: 256MB
Storage 2.5" IDE
Requires Adapter: Yes
Standard: 6.4 or 10GB
Display Options - 13.3" Active Matrix LCD @1024x768
- 14.1" Active Matrix LCD @1024x768
Graphics Chipset S3 VIRGE/MX
VRAM: 4MB
Audio ESS AudioDrive 1879
- Stereo Speakers
- Microphone
Main Battery Lithium Ion
CMOS Battery Varta NiMH

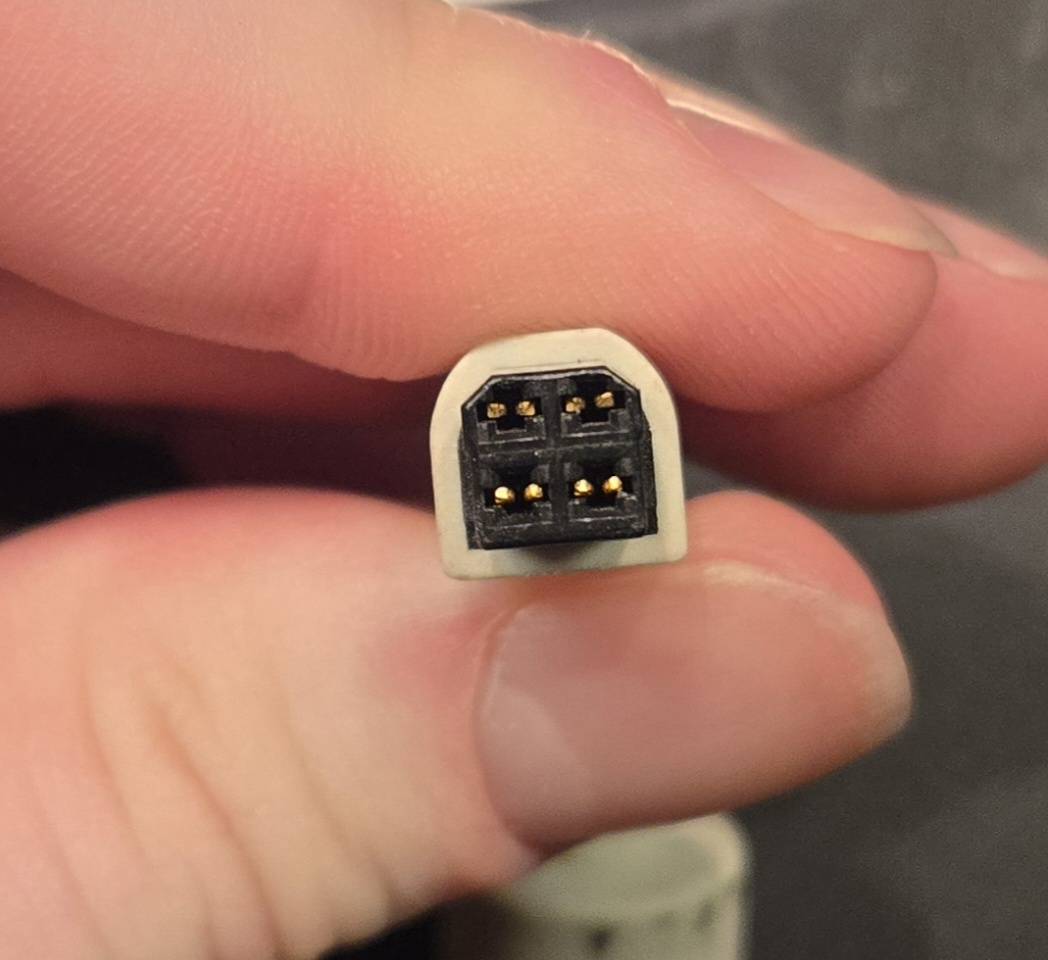

Power Supply Proprietary 4-pin

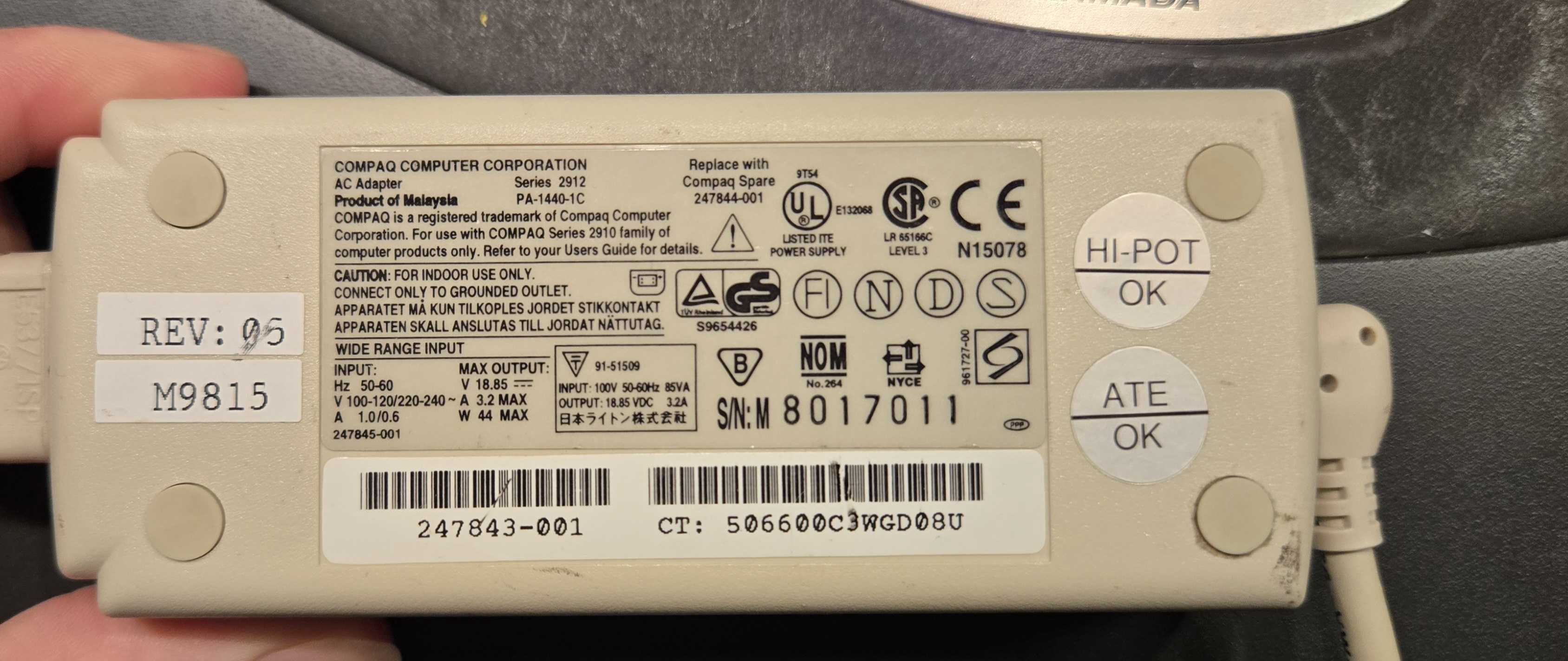

- Compaq Series 2912 AC Adapter

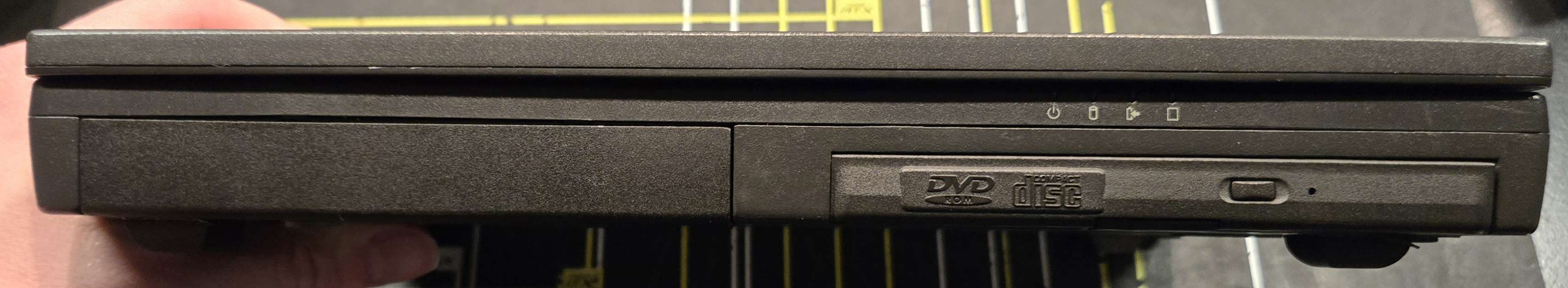

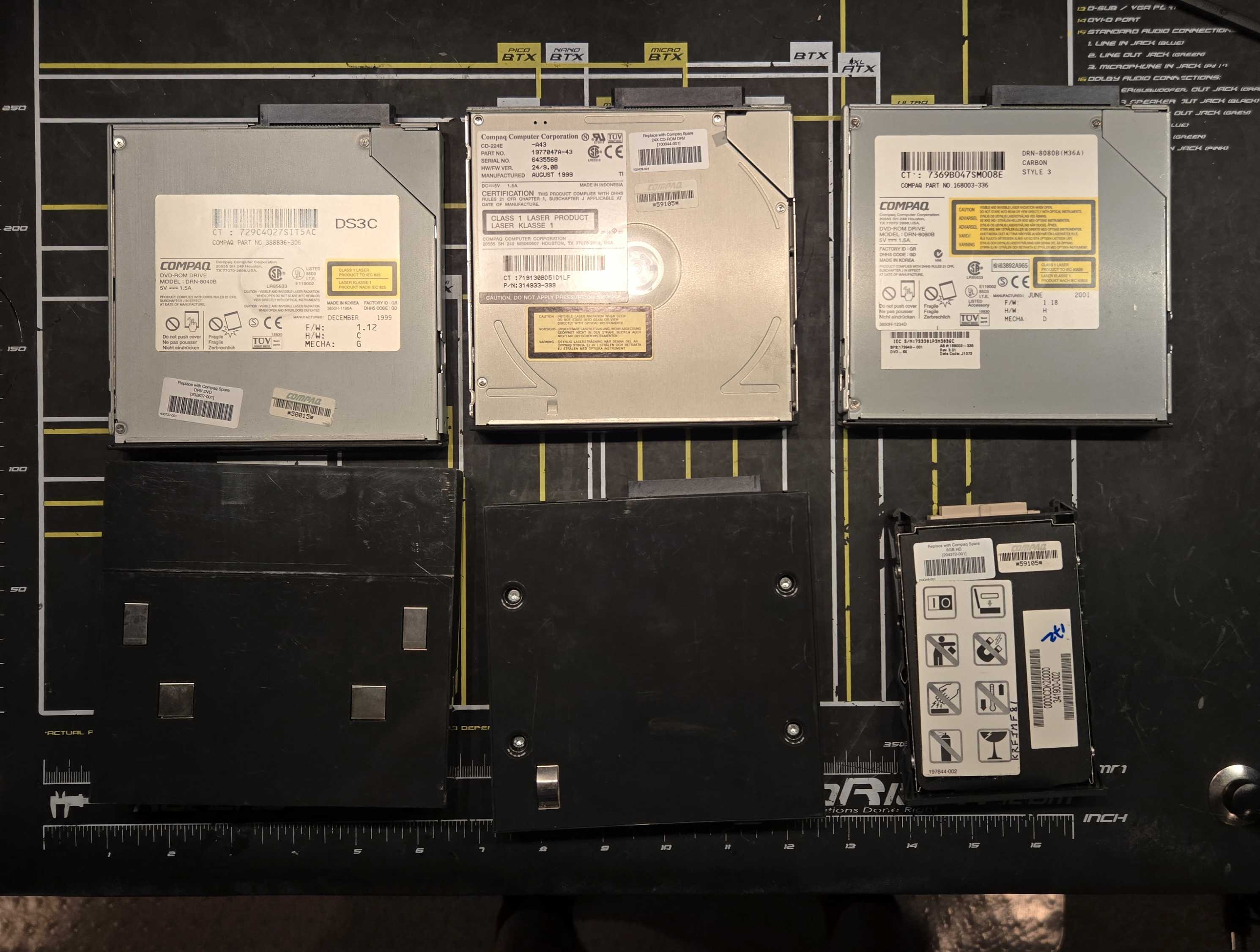

Media Drives Modular bay supporting the following:
- 3.5" 1.44MB Floppy Drive
- CD-ROM Drive
- DVD-ROM Drive
- LS-120 Drive
- 2nd HDD
PC Cards 2x PCMCIA/CardBus Slots
- ZoomVideo Support (lower slot)
Networking Modem (Optional)

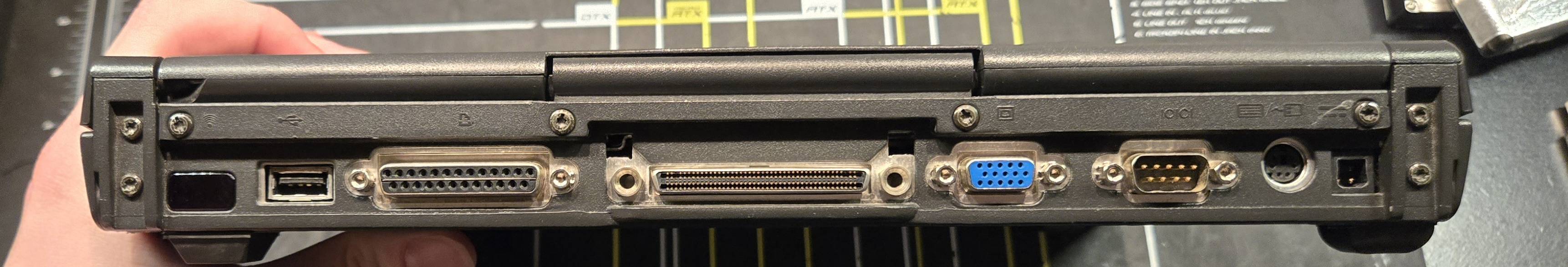

Other I/O - 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
- 1x Dock Connector
- 1x USB 1.x

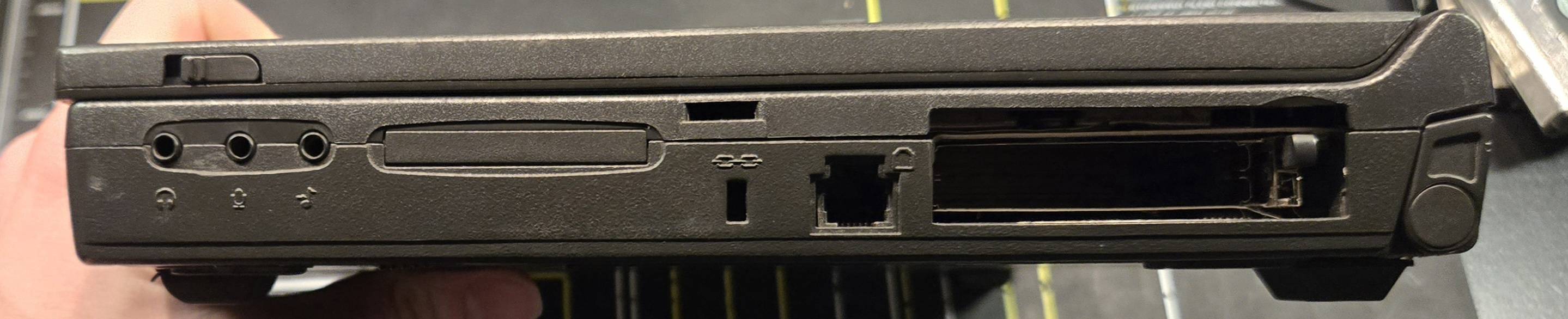

- 1x Headphone Out
- 1x Line In
- 1x Mic In

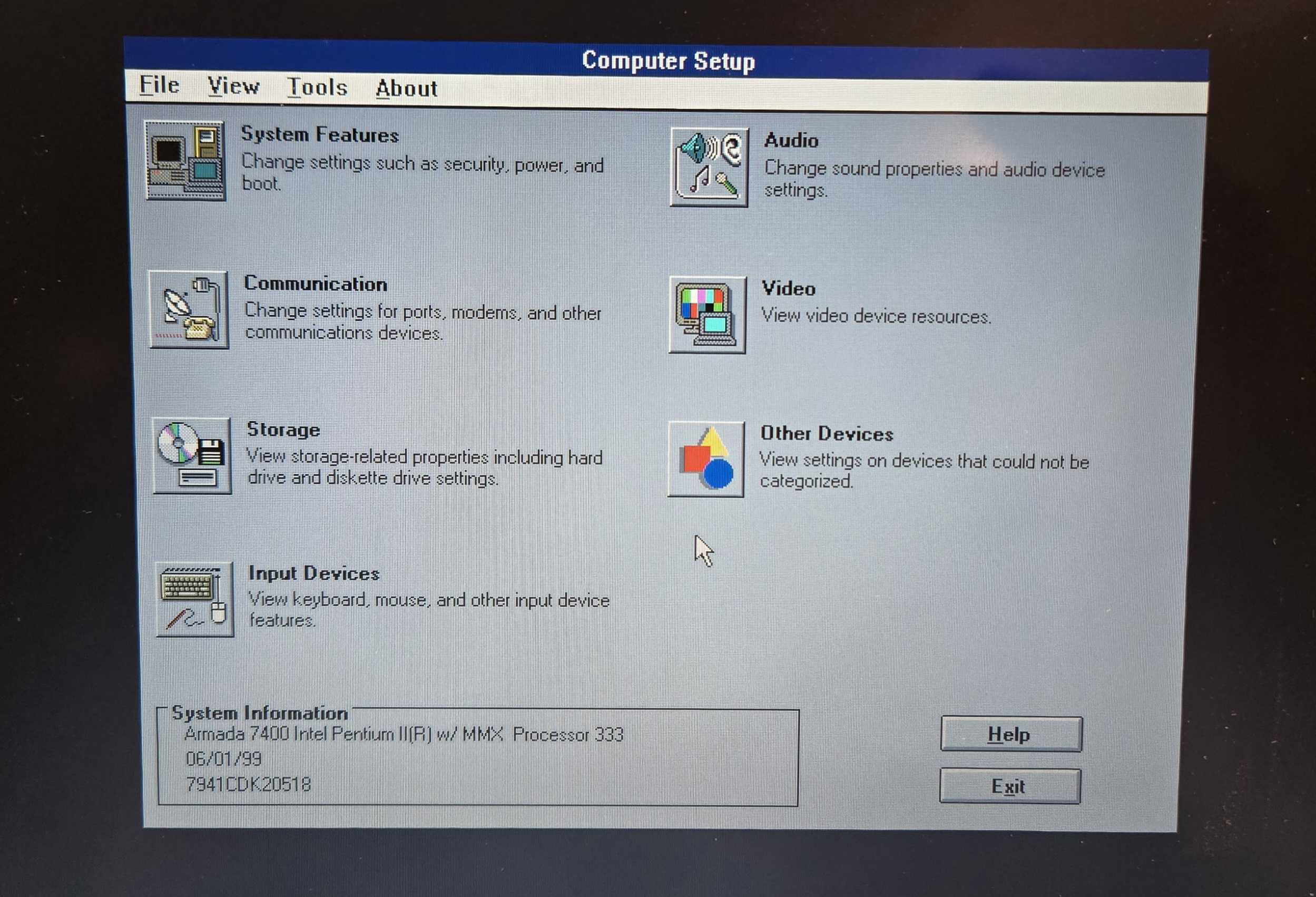

BIOS Compaq (No ROM Setup)
Pointing Device TrackPoint

Resources

Link Details
Compaq Armada 7400 Recovery Media
Compaq Armada 7400 Service Manual
Compaq Armada 7400 QuickSpecs

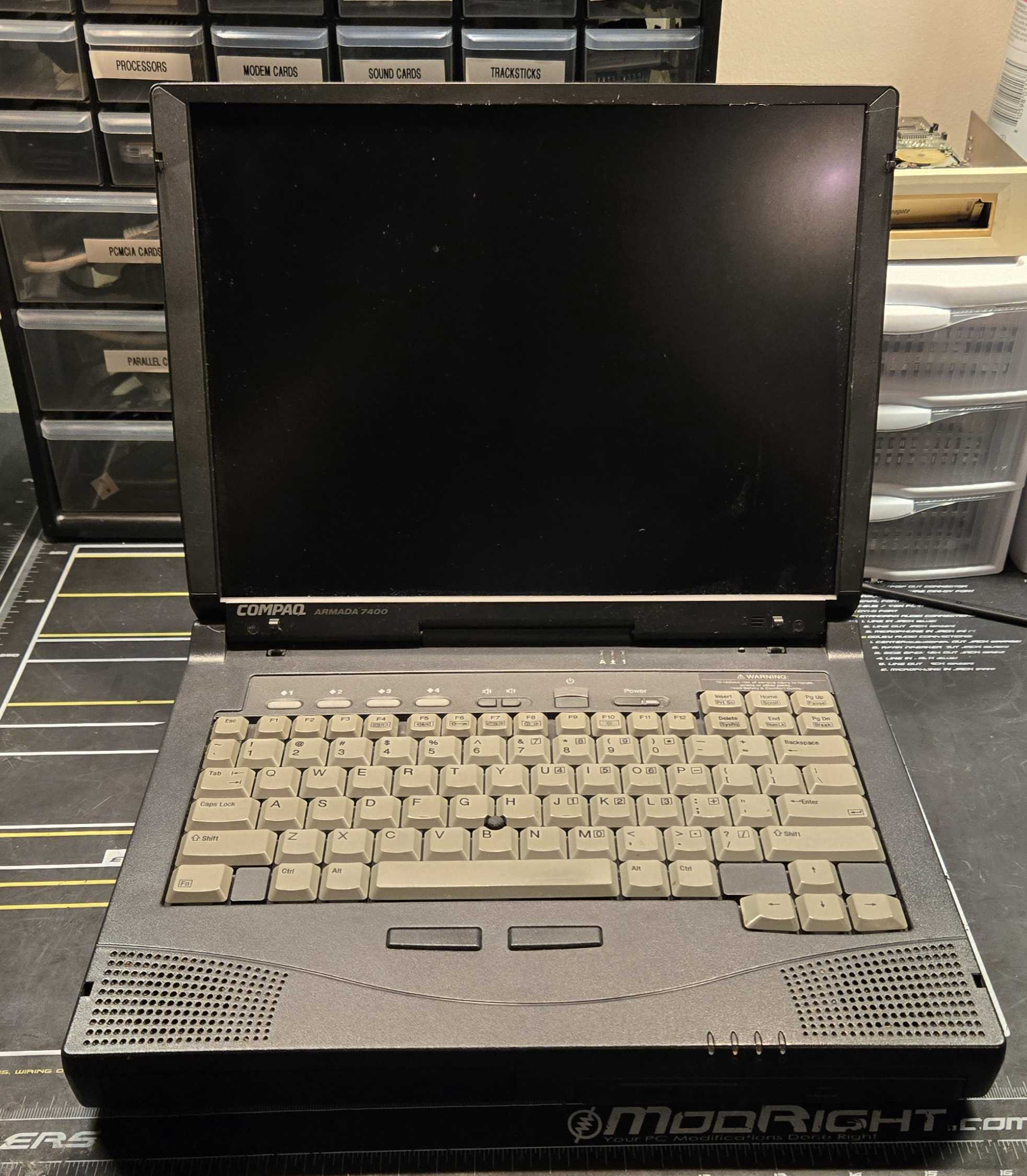

Gallery

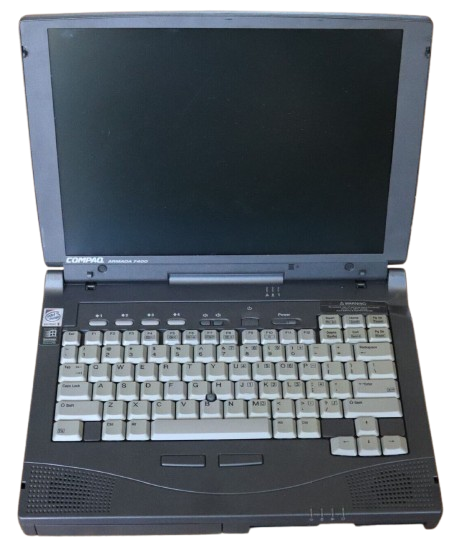

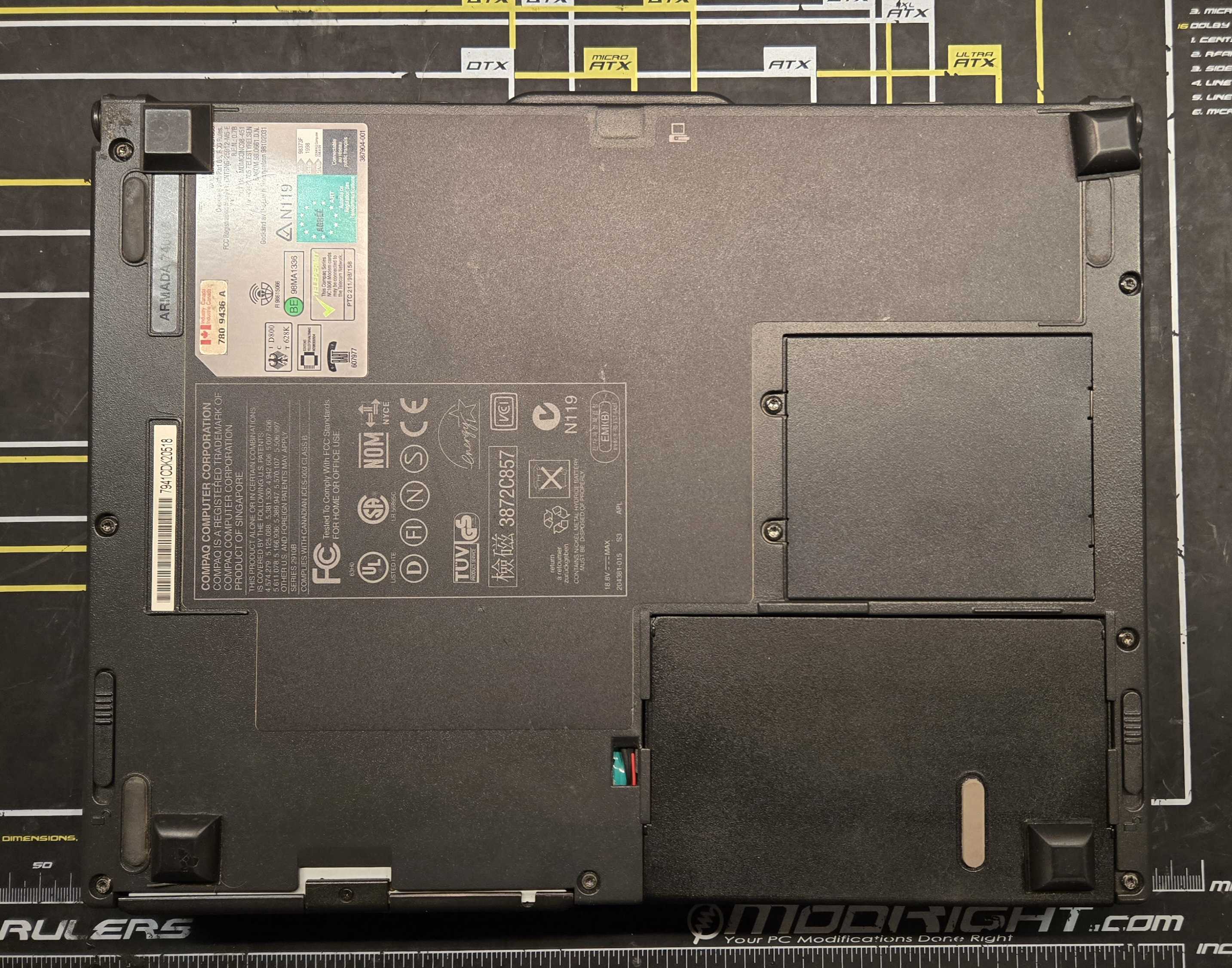

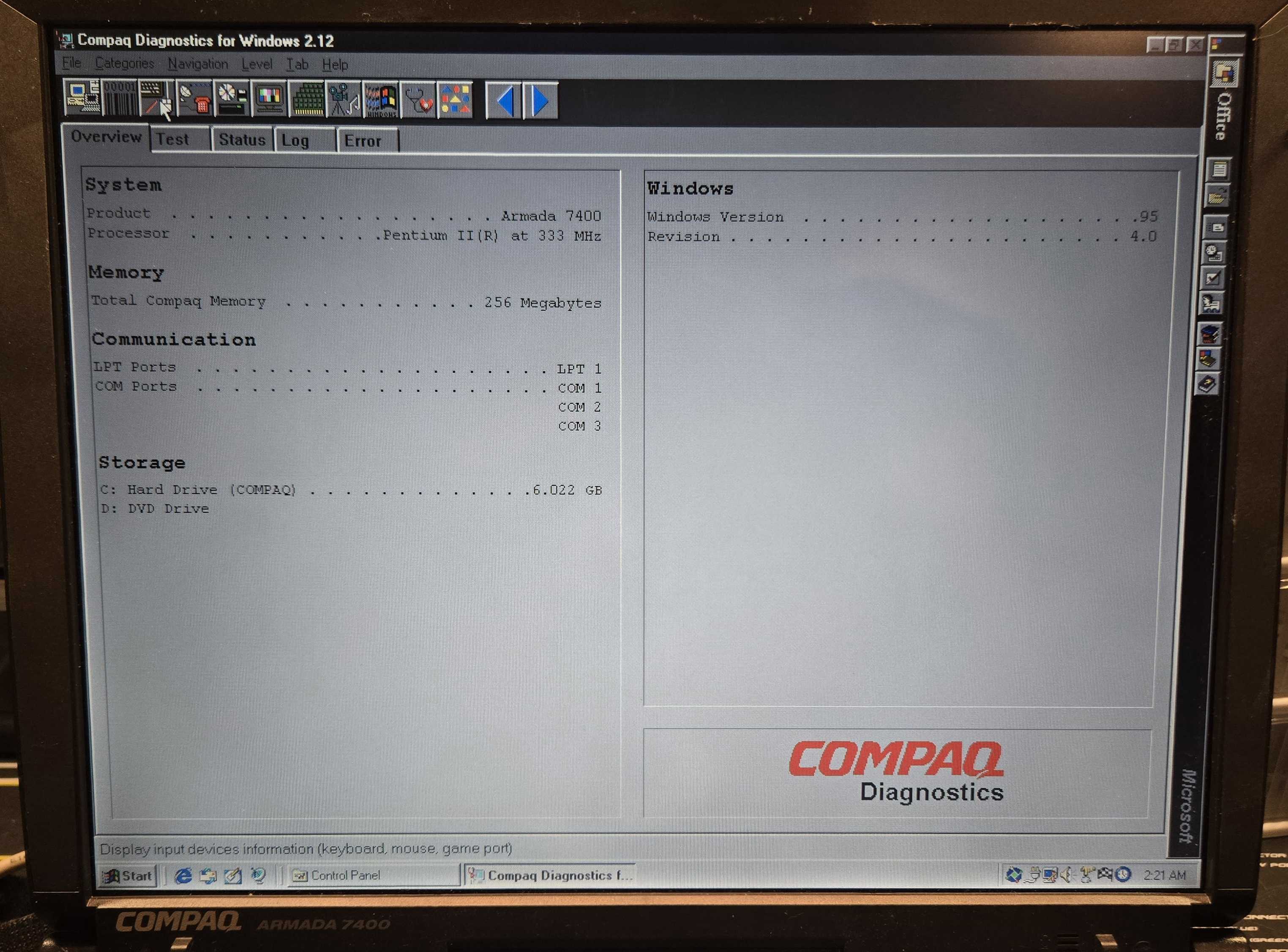

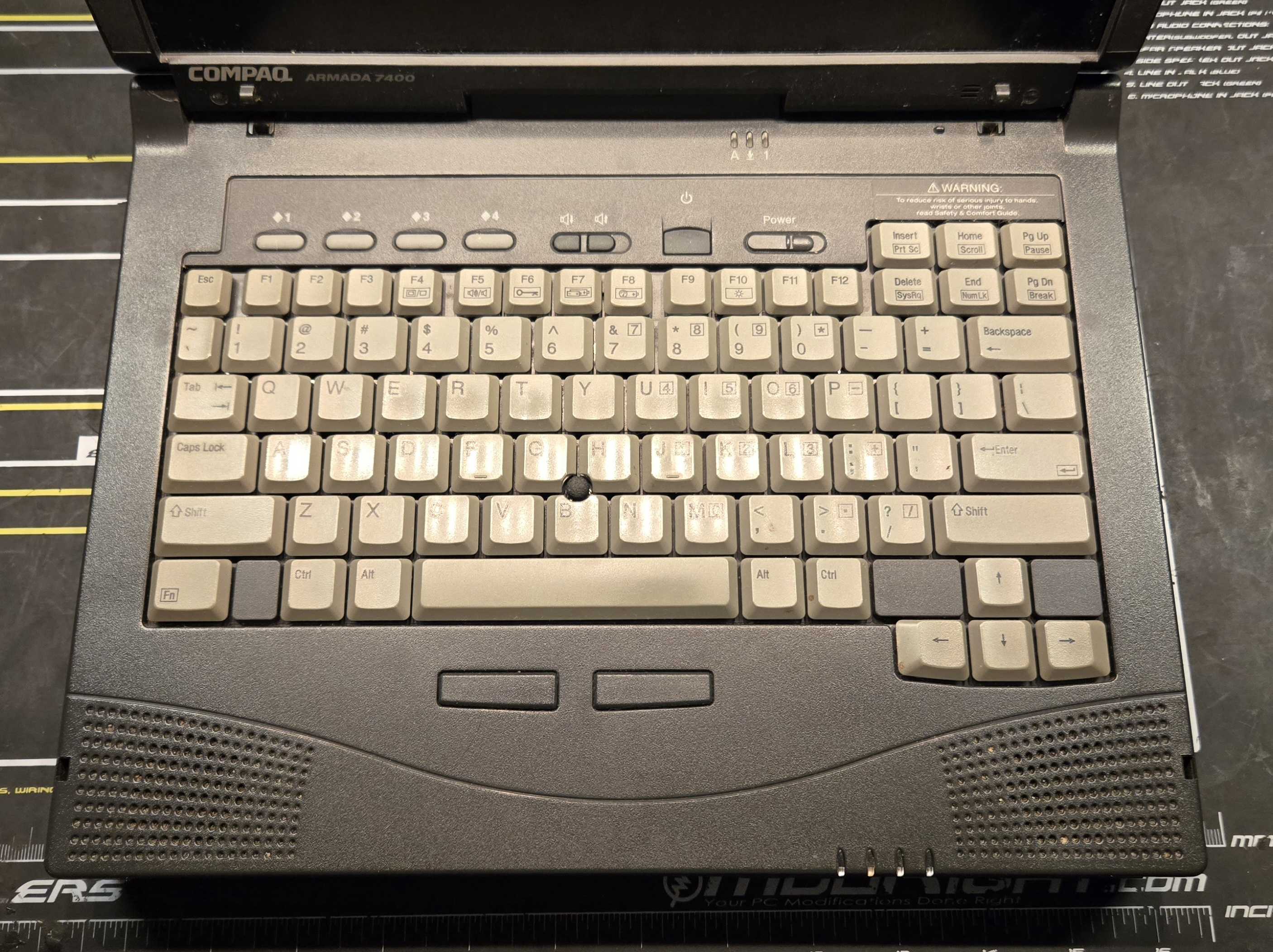

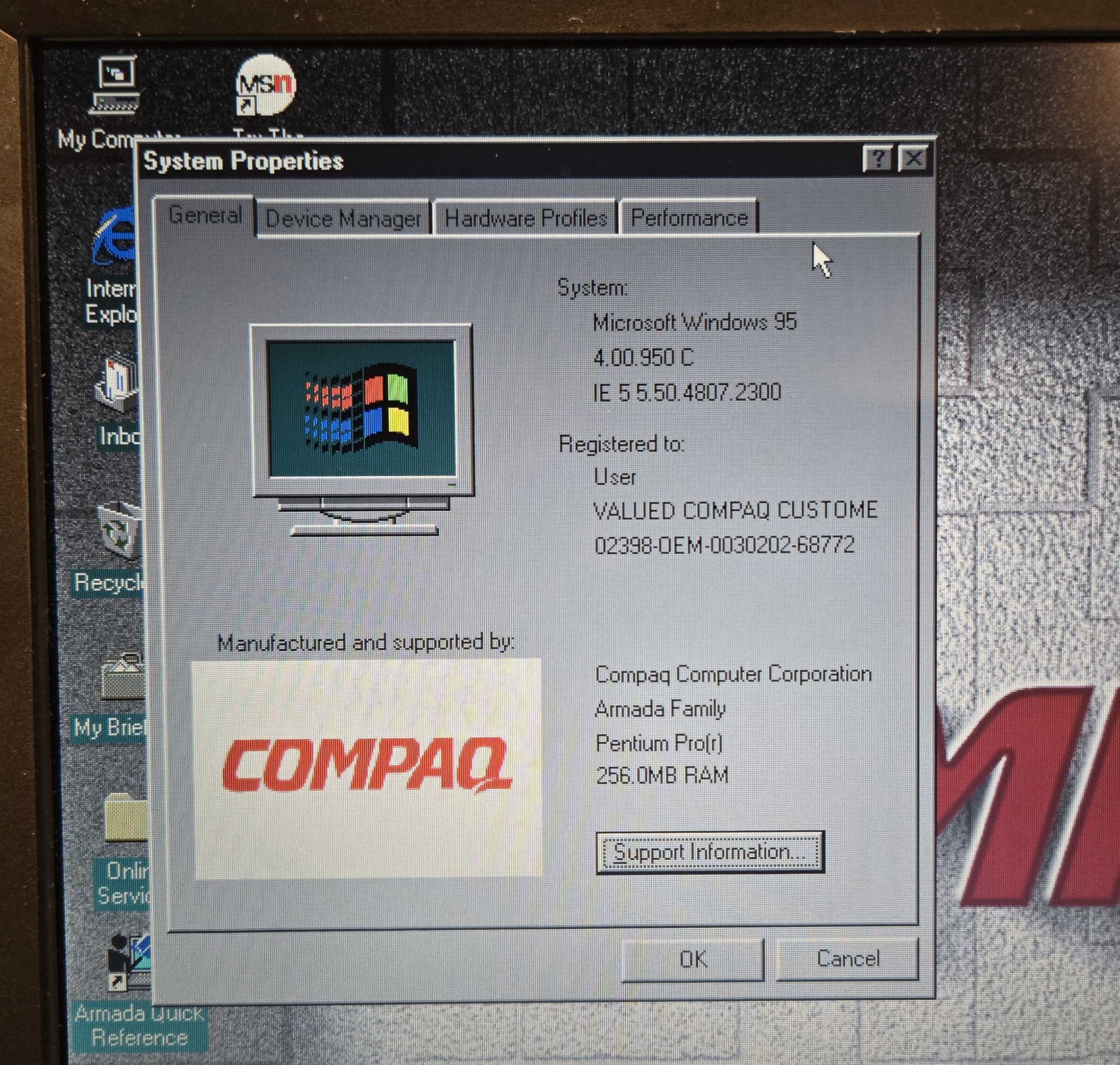

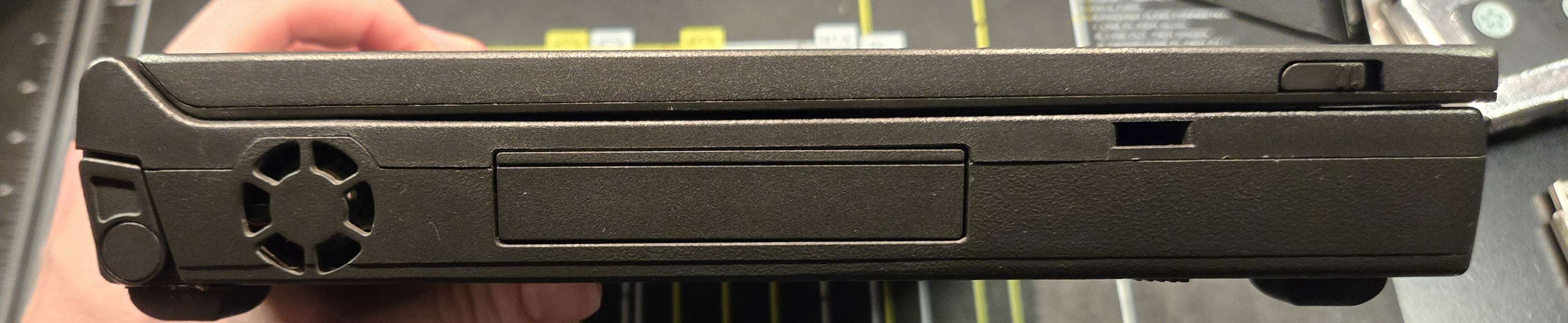

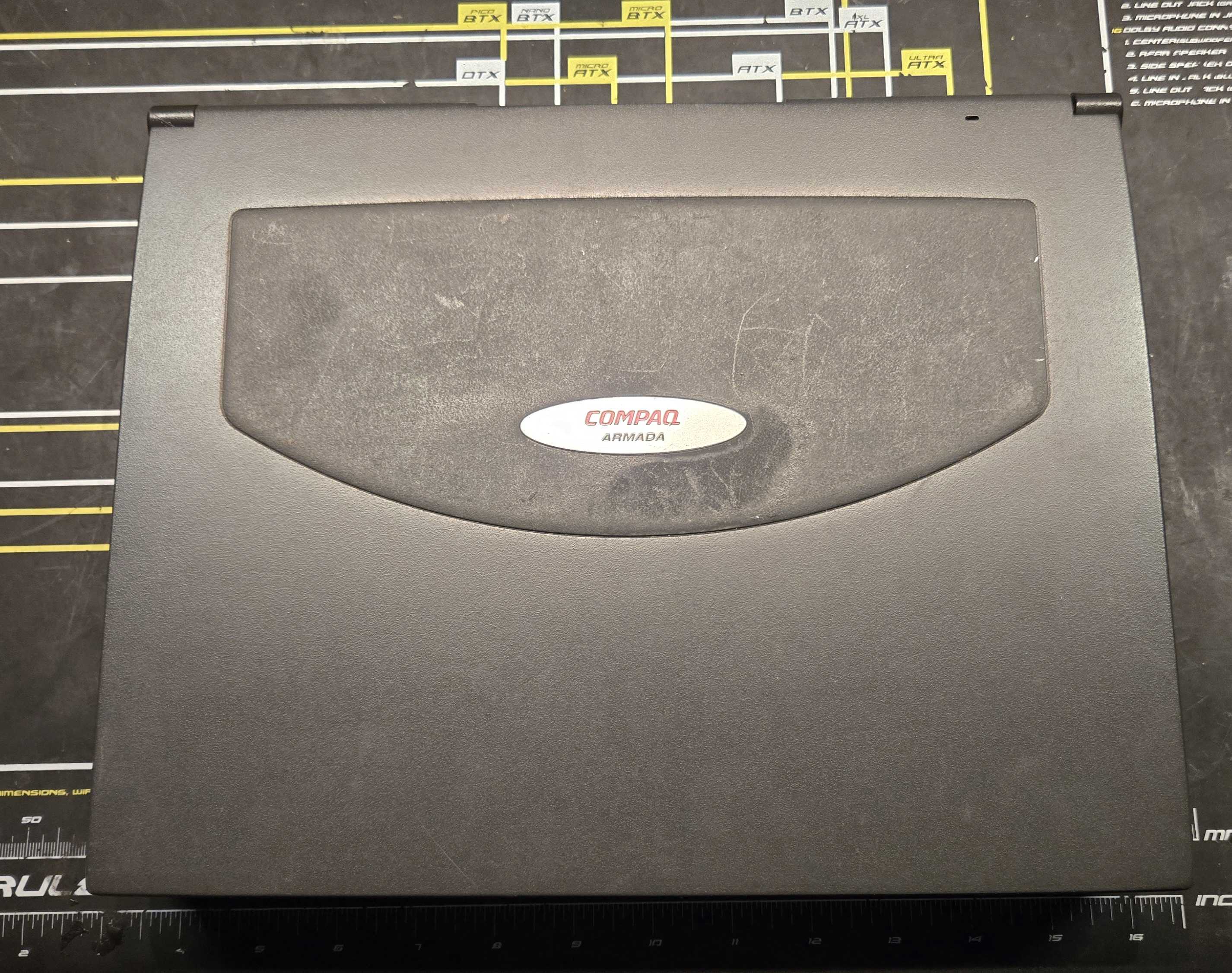

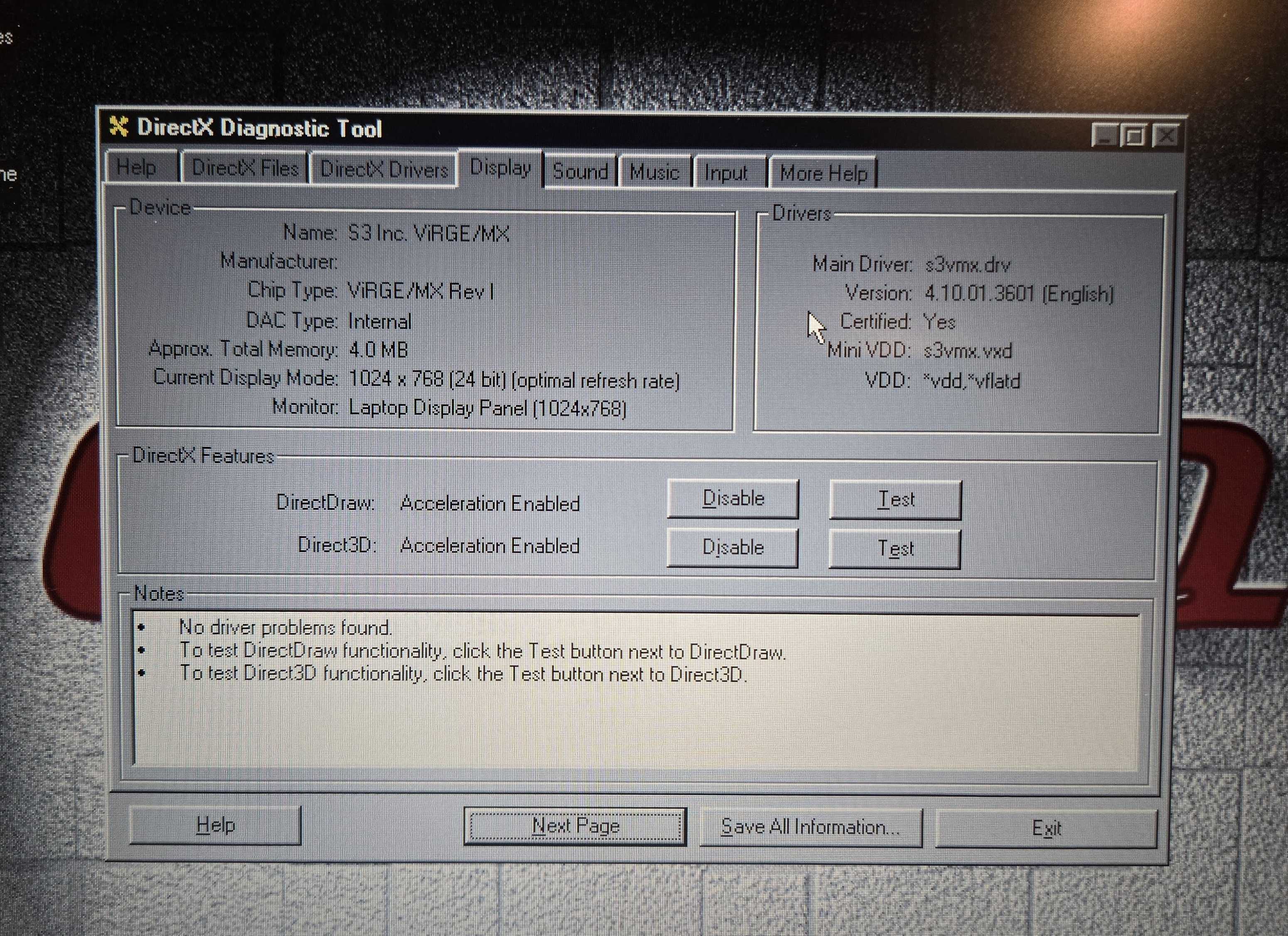

Photos from Chris Logan.
